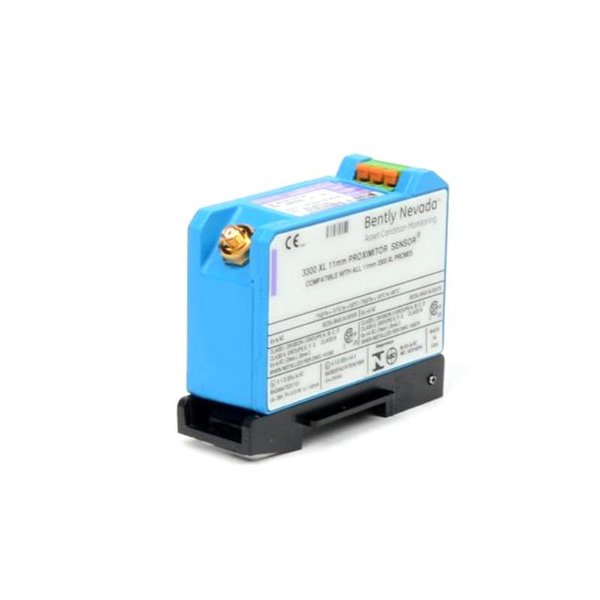

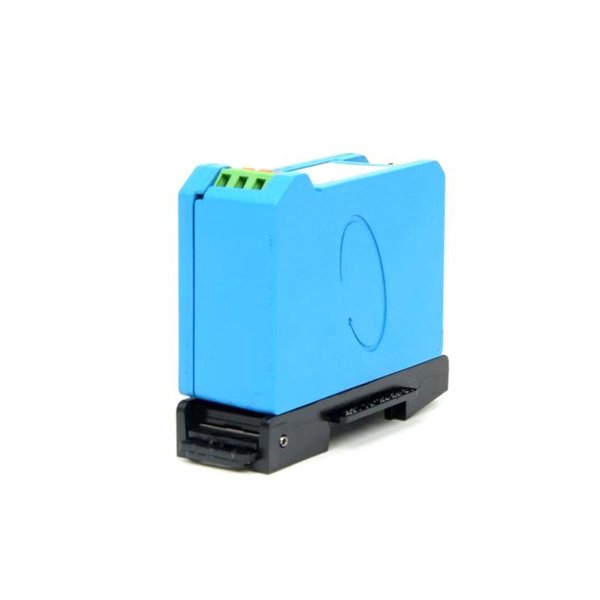

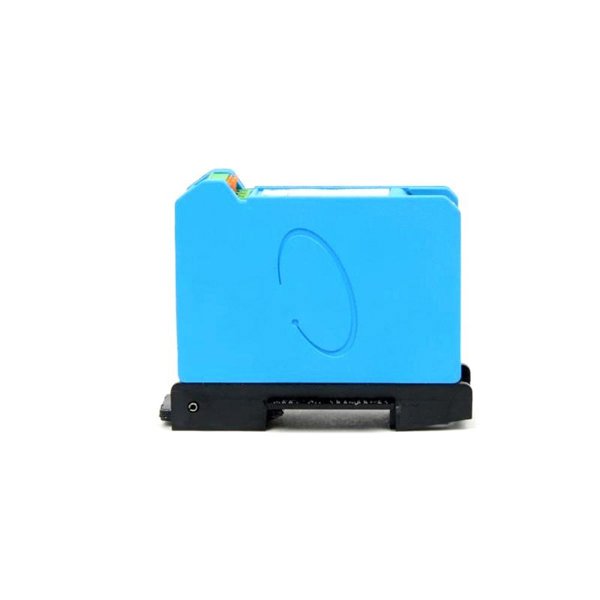

Bently Nevada 330780-91-05 3300 XL 11 mm Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330780-91-05
Product Type:3300 XL 11 mm Proximitor Sensor
Origin:USA
Total Length:9.0 meters
Weight:0.255 kg
Views:43
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330780-91-05 is part of the 3300 XL 11 mm Proximity Transducer System, designed for accurate, non-contact vibration and displacement measurements. This model includes a probe, extension cable, and Proximitor Sensor, offering a larger linear range compared to 8 mm systems. It’s ideal for use in applications requiring precise monitoring in fluid-film bearing machines.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330780-91-05 |
| Output | 3.94 V/mm (100 mV/mil) |
| Linear Range | 0.5 mm to 4.5 mm (20 to 180 mils) |
| Frequency Response | 0 to 8 kHz |
| Recommended Gap | 2.5 mm (100 mils) |
| Total Length | 9.0 meters |
| Sensor Weight | 0.255 kg (255 g) |
| Operating Temperature | -52°C to +100°C (Sensor), -52°C to +177°C (Probe/Cable) |
| Storage Temperature | -52°C to +105°C |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 304) |
| Sensor Housing Material | Aluminum (A380) |
| Cable Capacitance | 69.9 pF/m |
| Output Resistance | 50 Ω |
| Mounting | DIN rail or panel mount |
| Hazardous Area Compliance | ATEX, IECEx, SIL 2/SIL 3, cNRTLus certified |
Applications
-
Axial position (thrust) monitoring on turbines
-
Ramp differential expansion measurements
-
Rod position/rod drop detection in reciprocating compressors
-
Tachometer and zero-speed measurements
-
Phase reference (Keyphasor) signal generation
Product Advantages
-
Longer linear range (4.0 mm) than 8 mm systems
-
Thin, compact sensor for dense installations
-
Advanced RFI/EMI immunity (CE certified)
-
Robust field wiring via SpringLoc terminal strips
-
Reliable ClickLoc and CableLoc connections
-
Durable, armored extension options available
-
Multiple hazardous area certifications
Frequently Asked Questions (FAQ)
Q1: What is the main difference between the 3300 XL 11 mm and 8 mm sensors?
A1: The 11 mm version provides a longer linear measurement range, making it suitable for axial and thrust applications.
Q2: Can I use the 3300 XL 11 mm system with older 7200 series parts?
A2: No, all components must be replaced with 3300 XL 11 mm series parts for compatibility.
Q3: What mounting options are available?
A3: Panel mount, DIN rail mount, and versions with no hardware are available.
Q4: What are the hazardous area certifications?
A4: Certified for ATEX, IECEx, SIL 2/3, and North American hazardous areas.
Q5: What is the total system length for 330780-91-05?
A5: The system length is 9.0 meters.
Q6: What type of cable does it use?
A6: A 75 Ω triaxial cable with FEP insulation, available in armored and FluidLoc options.
Q7: What is the recommended gap setting?
A7: 2.5 mm (100 mils).
Q8: Is the sensor affected by RFI/EMI?
A8: No, it has enhanced immunity and complies with CE requirements.
Q9: Is special software needed for configuration?
A9: Yes, the monitoring system (e.g., 3500) must support the 3300 XL 11 mm series.
Q10: Can the connector be exposed to oil?
A10: Silicone tape should not be used in oil-exposed areas; use connector protectors instead.
