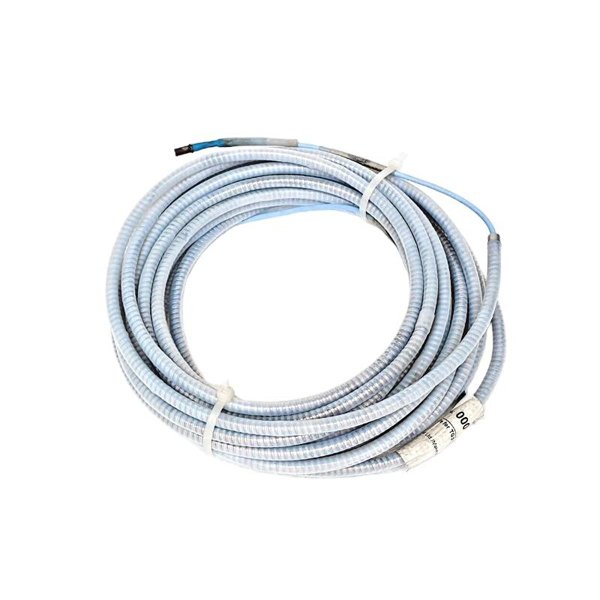

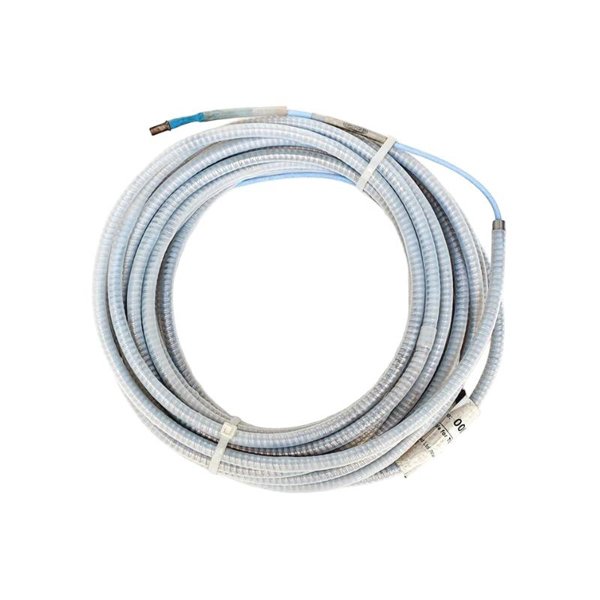

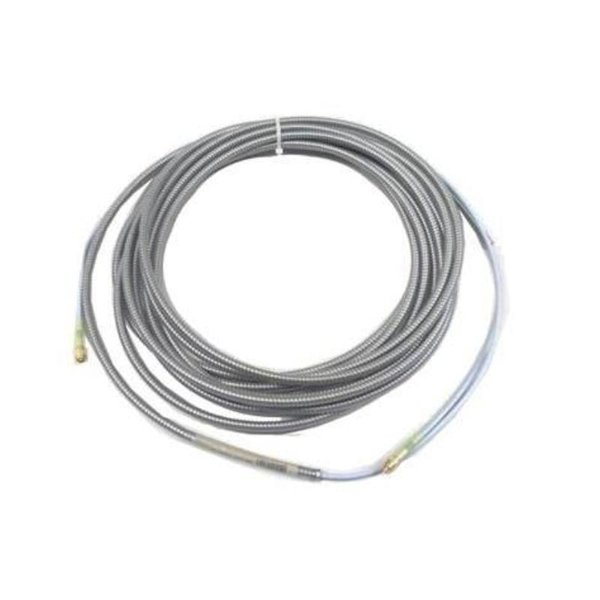

Bently Nevada 330130-080-01-CN 3300 XL Standard Extension Cable

The Bently Nevada 330130-080-01-CN 3300 XL Standard Extension Cable is an essential component of the Bently Nevada 3300 XL proximity probes system, designed to extend the distance between the probe and monitoring system. This cable ensures that the proximity probes, which are used for measuring shaft displacement and vibration, can be installed at greater distances without losing the quality or reliability of the data. The 3300 XL series is known for its high precision and durability, and this extension cable complements the series by offering reliable signal transmission over longer distances.

Manufactured with high-quality materials, the 330130-080-01-CN extension cable is ideal for industrial environments, where it is used in machinery monitoring systems. This cable is particularly valuable in settings where proximity probes need to be located at some distance from the monitoring equipment or when flexibility is needed to install probes in hard-to-reach areas. By maintaining the integrity of the signal across longer distances, this extension cable allows for continuous monitoring of rotating machinery, ensuring that the system operates efficiently and reliably.

Product Specifications

Product Applications

The Bently Nevada 330130-080-01-CN 3300 XL Standard Extension Cable is used in various industrial applications that require accurate and continuous monitoring of rotating machinery. Here are some of the key applications:

• Proximity Probe Extension: The extension cable allows proximity probes to be placed at a greater distance from the monitoring system without losing signal quality, enabling more flexible installations.

• Condition Monitoring: Extends the monitoring system’s reach, making it easier to measure displacement or vibration in machinery components like motors, turbines, and pumps.

• Predictive Maintenance: Enables proactive monitoring of equipment by connecting proximity probes to the system over longer distances, helping prevent unexpected breakdowns and improving maintenance schedules.

• Rotating Equipment Monitoring: Commonly used in industries to monitor pumps, compressors, and other rotating machinery, this extension cable helps in precise monitoring and helps detect early signs of mechanical failure.

• Power Generation: The cable is used in power plants to extend probes to turbines, generators, and other vital machinery, assisting in the continuous condition monitoring of critical systems.

• Oil & Gas: In oil and gas fields, the cable helps extend the reach of probes to drilling rigs, compressors, and pumps, ensuring they operate smoothly and reliably.

• Water Treatment: Used in water treatment plants to monitor key equipment, ensuring systems operate efficiently and preventing costly downtime.

• Mining: In mining, this extension cable ensures the proper monitoring of crushers, mills, and other vital equipment.

Product Advantages

• Longer Reach: This extension cable allows you to place proximity probes further from the monitoring system, enabling flexibility in installations, particularly in large or complex systems.

• Reliable Signal Transmission: Designed to maintain high-quality signal transmission over long distances, ensuring that data from the proximity probes remains accurate and reliable.

• Durable Construction: Built with thermoplastic elastomer insulation and an IP65 rating, this cable is highly resistant to water, dust, and environmental factors, making it suitable for harsh industrial environments.

• Wide Temperature Range: The cable can function within a broad temperature range of -40°C to +120°C, making it ideal for use in both hot and cold industrial environments.

• Easy Integration: Fully compatible with Bently Nevada 3300 XL proximity probes, this cable is easy to integrate into existing monitoring systems without the need for complex setup.

• Compact Design: With an outer diameter of just 10mm, the cable can easily fit into tight spaces, making it versatile for different machinery setups.

• Cost-Effective: By enabling flexible installation and extending the reach of proximity probes, this extension cable helps reduce the need for additional monitoring equipment, saving on costs.

• Water and Dust Resistance: With its IP65 rating, the cable is fully protected from dust and water ingress, ensuring reliable performance in wet or dusty environments.

• Long Lifespan: The cable is designed for long-term use, offering robust protection and durability that reduces the need for frequent replacements.

• High Voltage Rating: The cable’s 500 V DC voltage rating ensures that it can be safely used in high-voltage applications without compromising performance.

Frequently Asked Questions (FAQ)

1. Q: What is the length of the Bently Nevada 330130-080-01-CN extension cable?

   A: The extension cable is 8 meters in length.

2. Q: What is the temperature range of the 3300 XL extension cable?

   A: The cable operates in a temperature range of -40°C to +120°C.

3. Q: What type of insulation does the 3300 XL extension cable have?

   A: The cable has thermoplastic elastomer insulation, which provides durability and flexibility.

4. Q: How many conductors are in the 3300 XL extension cable?

   A: The cable contains 2 conductors, suitable for 2-wire proximity probes.

5. Q: Is the 3300 XL extension cable compatible with all Bently Nevada proximity probes?

   A: Yes, the cable is fully compatible with all 3300 XL proximity probes from Bently Nevada.

6. Q: What is the outer diameter of the extension cable?

   A: The outer diameter of the cable is approximately 10 mm.

7. Q: What is the voltage rating of the 3300 XL extension cable?

   A: The cable has a 500 V DC voltage rating, making it suitable for high-voltage applications.

8. Q: What is the weight of the 3300 XL extension cable?

   A: The extension cable weighs 0.824 kg.

9. Q: What is the environmental protection rating of the extension cable?

   A: The cable is rated IP65, which means it is protected from dust and water ingress.

10. Q: Can the 3300 XL extension cable be used in harsh industrial environments?

    A: Yes, the cable is designed to perform reliably in harsh environments, including areas with dust, water, and extreme temperatures.
