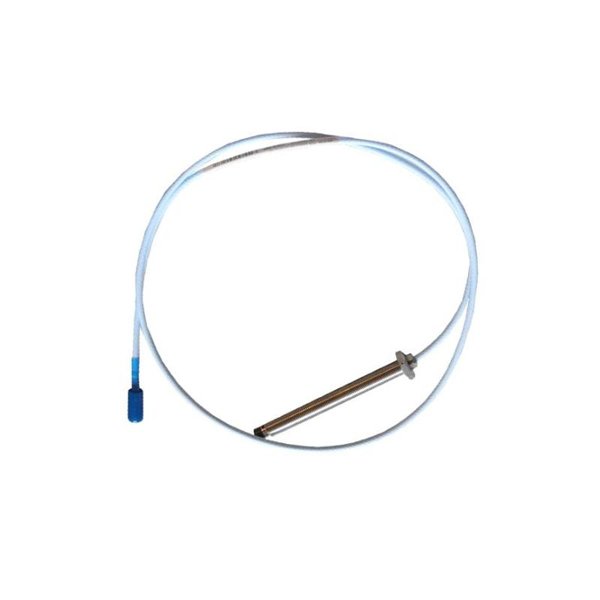

Bently Nevada 330104-03-08-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-03-08-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision, non-contact displacement measurement sensor designed for industrial machinery monitoring. As part of the 3300 XL series, it is engineered to detect shaft vibration, position, and relative movement in critical rotating equipment. This probe ensures accurate and reliable performance under harsh operating conditions, including high temperatures, pressures, and vibration environments, making it suitable for turbines, compressors, generators, and pumps.

Product Parameters

Product Applications

• Monitoring rotor vibration and shaft displacement in turbines, compressors, and generators.

• Early detection of mechanical faults such as imbalance, misalignment, and bearing wear.

• Integration into critical plant monitoring systems for predictive maintenance.

• High-accuracy measurement in high-speed rotating machinery.

• Suitable for both OEM installations and retrofit upgrades on existing machinery.

Product Advantages

• High Precision: Provides accurate displacement readings to detect even minor deviations in machinery operation.

• Durable Construction: Stainless steel housing ensures long-term reliability under extreme conditions.

• Wide Temperature Range: Operates effectively from -40°C to 125°C without performance loss.

• Non-Contact Measurement: Eliminates mechanical wear and reduces maintenance requirements.

• Compatibility: Works seamlessly with Bently Nevada 3300 XL series monitoring systems.

• Flexibility: Custom cable lengths and mounting options adapt to various industrial setups.

FAQ

• Q1: What is the maximum sensing range of this probe?

  A1: The 330104-03-08-10-02-00 probe has a nominal sensing range of 0.25 mm to 2.54 mm, depending on target material.

• Q2: Can this probe be used in high-speed turbine applications?

  A2: Yes, it is designed for high-speed rotating machinery and can reliably measure vibration at speeds up to 60,000 RPM.

• Q3: What is the recommended target surface for accurate measurement?

  A3: A smooth, ferromagnetic metal surface is recommended to achieve optimal eddy current response.

• Q4: How does temperature affect the probe’s output signal?

  A4: The probe maintains linear output within the rated temperature range (-40°C to 125°C), with minimal temperature drift.

• Q5: Is this probe compatible with non-Bently Nevada monitoring systems?

  A5: While primarily designed for 3300 XL systems, it can interface with other eddy current signal conditioners that support similar AC output characteristics.

• Q6: Can the probe be extended with longer cables without signal loss?

  A6: Yes, but care must be taken to use low-capacitance coaxial cable, and total cable length should not exceed 30 meters for optimal signal fidelity.

• Q7: Does the probe support online calibration?

  A7: Yes, the probe can be calibrated in situ using the associated 3300 XL monitoring system.

• Q8: What is the output frequency response of the probe?

  A8: The 3300 XL 8 mm probe supports a frequency response up to 10 kHz for accurate vibration monitoring.

• Q9: Can the probe detect axial and radial shaft movement simultaneously?

  A9: The probe measures displacement along the direction of the probe tip; multiple probes are used for full radial and axial coverage.

• Q10: Is the probe suitable for explosive or hazardous environments?

  A10: Yes, when used with appropriate certified junction boxes and monitoring modules designed for hazardous areas.
