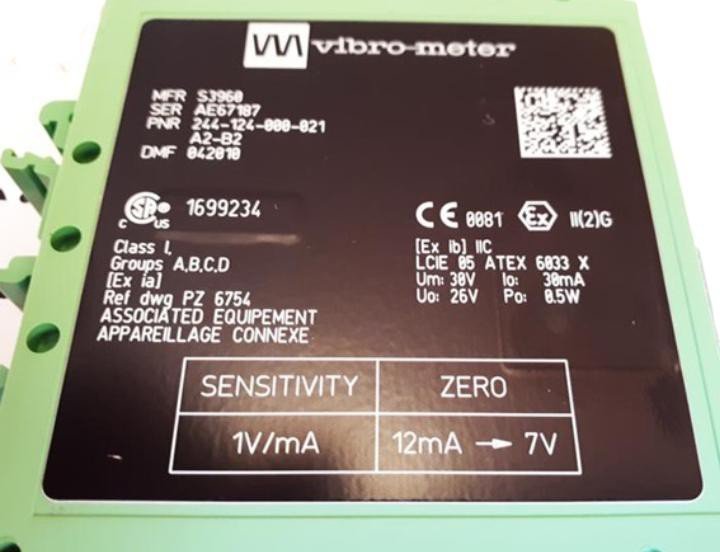

Vibro-Meter GSI124 224-124-000-021 Galvanic Separation Unit
Item Number: GSI124 224-124-000-021
Brand:Vibro-Meter
Lead Time: In stock
Description: Galvanic Separation Unit
Payment: T/T
Product Description
GSI124 224-124-000-021 Galvanic Separation Unit is a device used to power sensors and signal conditioners, while also providing isolated signal transmission. It is suitable for installation in Ex Zone 2 (nA) areas and provides power to the measurement chain, eliminating the need for external Zener diode barriers in intrinsically safe (Ex i) applications.
Supports signal conditioners, charge amplifiers, and sensors, including:
CAxxx piezoelectric accelerometers (paired with IPC707/IPC704 charge amplifiers).
CPxxx dynamic pressure sensors.
TQ9xx proximity sensors (paired with IQS9xx/IQS4xx signal conditioners).
CExxx accelerometers and VE210 velocity sensors.
Function & Features
- The GSI124 224-124-000-021 features 4 kVRMS galvanic isolation between the sensor and monitor sides, and 50 VRMS galvanic isolation between the power supply and output signal (floating output).
- The GSI124 224-124-000-021 provides µA-to-mV conversion for long-distance current signal transmission and V-to-V conversion for short-distance voltage signal transmission.
- The GSI124 224-124-000-021 can be used with a variety of signal conditioners and charge amplifiers, such as the IPC707 and IQS9xx signal conditioners, as well as CAxxx piezoelectric accelerometers and TQ9xx proximity sensors.
Specifications
|
Parameter |
Details |
|
Model |
GSI124 224-124-000-021 |
|
Input voltage range |
18 to 30 V₍₍DC₎₎ |
|
Current consumption (with nominal 24 V₍₍DC₎₎ supply) - No load on sensor side |
≤80 mA |
|
Current consumption (with nominal 24 V₍₍DC₎₎ supply) - 20 mA load on sensor side |
≤120 mA |
|
Output voltage dynamic range (with 10 kΩ load) |
2 to 20 V₍₍DC₎₎ |
|
Output impedance |
20 Ω |
|
Power supply voltage rejection ratio - 10 Hz to 400 Hz |
≥60 dB |
|
Power supply voltage rejection ratio - 400 Hz to 100 kHz |
≥30 dB |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A:Galvanic Separation Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
