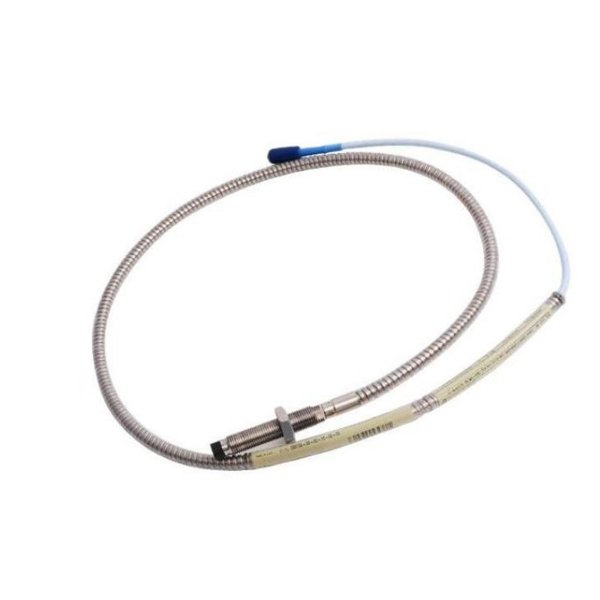

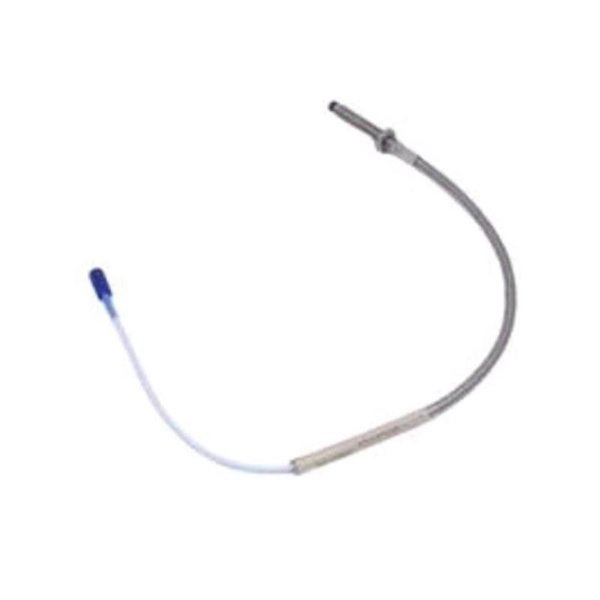

Bently Nevada 330104-00-07-10-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-07-10-02-CN
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-07-10-02-CN is part of the 3300 XL 8 mm Proximity Transducer System, a high-precision non-contact sensor designed to monitor vibration and shaft position in rotating machinery. It delivers an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. This model includes a 1.0-meter probe with armor and M10 x 1 metric threads.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Cable Type | FEP Insulated Triaxial, Armored |
| Connector Type | ClickLoc Coaxial, Gold-Plated |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Output Voltage Sensitivity | 7.87 V/mm (200 mV/mil) ± 5% |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (0.71 lb) |
| Operating Temp. (Standard) | -52°C to +177°C |
| Max Pressure (Differential) | Viton O-ring sealed, not pre-tested |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Minimum Shaft Diameter | 50.8 mm (2 in), Recommended 76.2 mm |
Applications
-
Radial vibration monitoring in turbines and compressors
-
Shaft position measurement in fluid-film bearing machines
-
Keyphasor® reference for phase and speed analysis
-
Overspeed protection in rotating equipment
Product Advantages
-
Rugged Construction: Armored cable and molded tip for industrial durability
-
High Compatibility: Fully interchangeable with other XL and non-XL 3300 systems
-
ClickLoc Connector: Ensures secure, tool-free installation
-
High Accuracy: Compliant with API 670 standards
-
Flexible Mounting: Suitable for both DIN-rail and panel mounting
-
Temperature Resilience: Wide operating and storage temperature range
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330104-00-07-10-02-CN?
A1: It measures shaft vibration and position using non-contact eddy current technology.
Q2: Is this probe compatible with other Bently Nevada systems?
A2: Yes, it’s compatible with 3300 XL and older 3300 series components.
Q3: What thread type does it use?
A3: It uses an M10 x 1 metric thread.
Q4: Can it operate in high-temperature environments?
A4: Yes, it supports temperatures up to +177°C standard.
Q5: Does the system include a proximitor sensor?
A5: No, this model includes only the probe. The proximitor is purchased separately.
Q6: What is the probe’s total length and weight?
A6: 1.0 meter in length, and 0.323 kg in weight.
Q7: What material is used in the probe tip?
A7: The tip is made of molded PPS plastic for durability.
Q8: What is the recommended gap setting for radial vibration?
A8: Approximately 1.27 mm (50 mils) or -9 Vdc output.
Q9: Can this probe be used in hazardous areas?
A9: Yes, with appropriate certifications like ATEX, CSA, and IECEx.
Q10: Is any calibration needed for new installations?
A10: No. All components are pre-calibrated to AISI 4140 steel at the factory.
