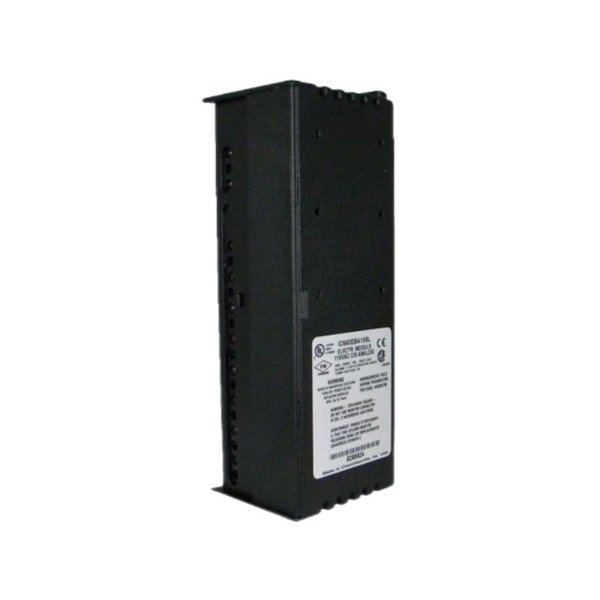

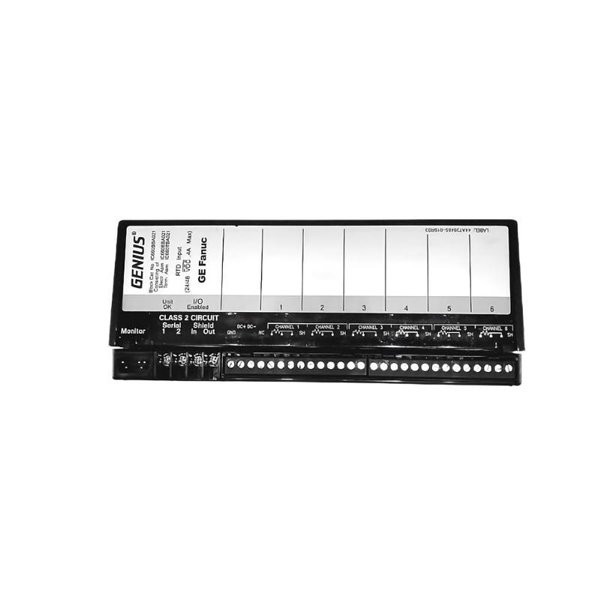

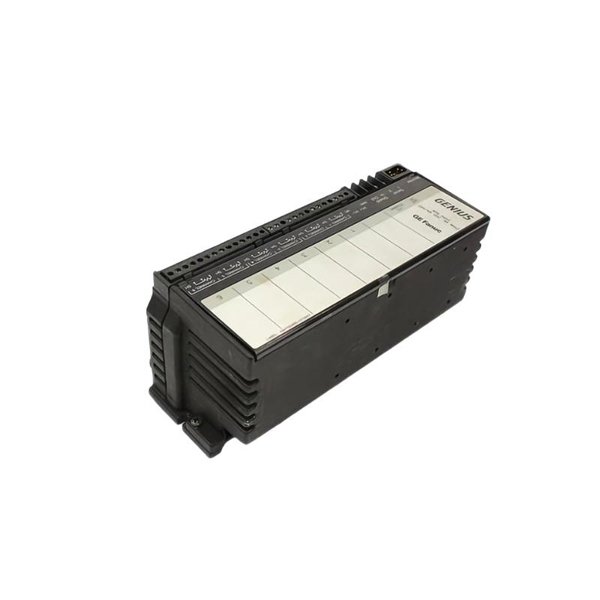

General Electric IC660BBA021 RTD Input Module

The GE IC660BBA021 RTD Input Module is part of the GE Fanuc Genius I/O product line, specifically designed for reliable temperature monitoring using RTD (Resistance Temperature Detector) sensors in industrial environments. This module offers 6 RTD input channels, enabling accurate, real-time temperature acquisition for process control systems.

What distinguishes the IC660BBA021 is its ability to directly interface with RTDs—particularly 100-ohm platinum sensors (Pt100)—without the need for additional signal conditioning hardware. The module provides highly accurate temperature readings over a broad operating range and features built-in diagnostics, channel-level isolation, and field-mountable rugged design. It integrates seamlessly into GE’s Genius I/O distributed control system, providing critical temperature data where reliability and durability are paramount.

Product Specifications

Applications

The IC660BBA021 RTD Input Module is widely used in industries that demand accurate and stable temperature sensing under challenging environmental conditions. Common applications include:

• Power Generation Facilities for boiler temperature monitoring

• Chemical and Petrochemical Plants requiring precise thermal feedback for reactor control

• Food and Beverage Industry to maintain regulated cooking and storage environments

• Pharmaceutical Manufacturing where temperature consistency is vital for compliance

• HVAC Systems in large-scale commercial or industrial facilities

• Metallurgical and Steel Plants for furnace and cooling process control

• Pulp and Paper Mills monitoring process heat and fluid temperatures

Product Advantages

• Direct RTD Support: Eliminates need for external RTD signal conditioners

• High Accuracy & Resolution: Provides precision monitoring with ±0.5°C accuracy and 0.1°C resolution

• Flexible Sensor Wiring: Supports 2, 3, and 4-wire RTD connections, accommodating different installation requirements

• Field-Rugged Design: Built for use in harsh, industrial field environments with an IP65 enclosure rating

• Fast Update Time: Ensures near real-time responsiveness for process-critical temperature control

• Diagnostics and LED Indicators: Quick detection of wiring issues, sensor failure, or temperature excursions

• Safe and Isolated: High isolation protects against electrical noise and potential damage from transients

• Part of Genius I/O Family: Seamless integration with GE distributed control systems

• Reduced System Costs: Fewer external components required, leading to simpler installation and maintenance

• Long Service Life: Designed for years of operation with minimal degradation or recalibration needs
