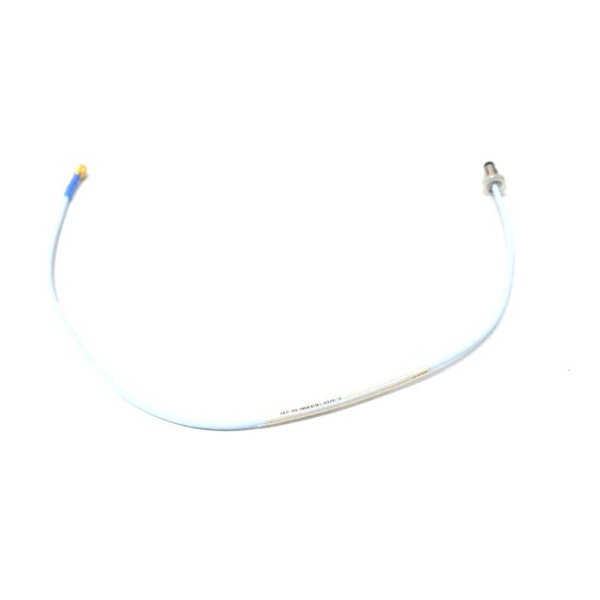

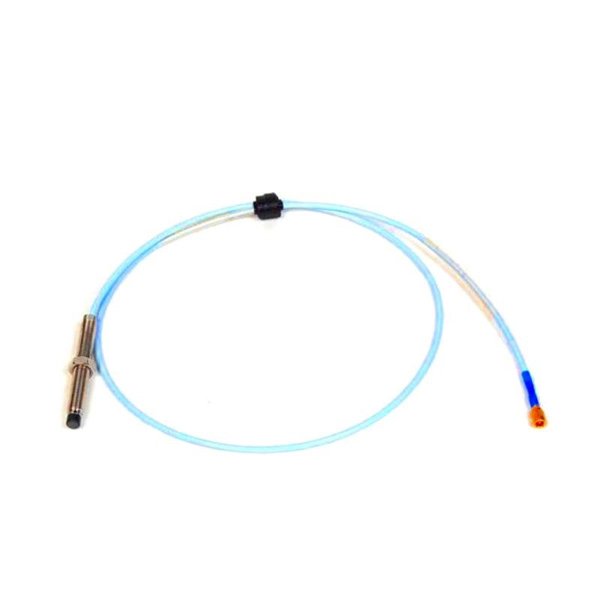

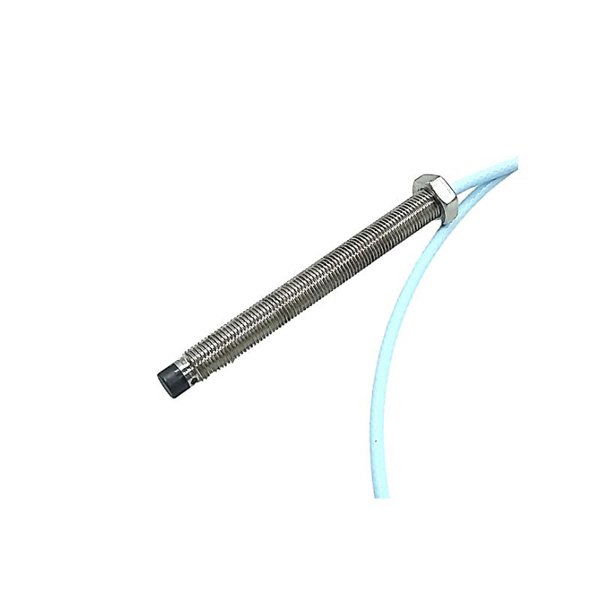

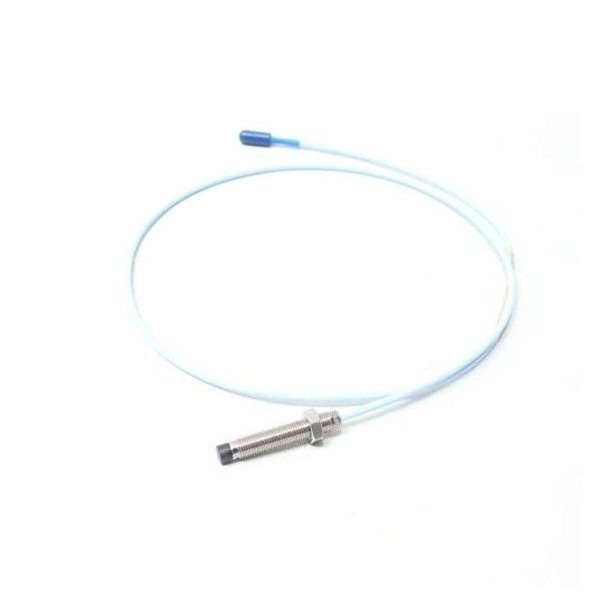

Bently Nevada 330101-00-65-10-11-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-65-10-11-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-65-10-11-05 is part of the 3300 XL 8 mm Proximity Transducer System. It consists of a non-contacting proximity probe, delivering precise static (position) and dynamic (vibration) measurements. This probe is primarily used for monitoring rotating machinery such as turbines, compressors, and pumps.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (0.712 lb) |
| Cable Type | Standard coaxial with ClickLoc connector |
| Operating Temp (Probe) | -52°C to +177°C |
| Pressure Seal | Viton® O-ring sealed |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| ISF (Scale Factor) | 7.87 V/mm ±5% (200 mV/mil) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Humidity Resistance | <3% change @ 93% RH up to 56 days |
Applications
-
Vibration monitoring of critical rotating equipment
-
Shaft position measurement in fluid-film bearing machinery
-
Keyphasor® reference signal for rotational speed detection
-
Overspeed protection (with proper configuration)
Product Advantages
-
Complies fully with API 670 mechanical standards
-
Backward compatible with 3300 5 mm and 8 mm systems
-
ClickLoc connectors for secure, tool-free installation
-
TipLoc and CableLoc features enhance mechanical integrity
-
High immunity to EMI/RFI interference
-
Optional FluidLoc cables prevent oil ingress
-
Suitable for harsh industrial environments
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 330101-00-65-10-11-05 probe?
A1: It measures shaft vibration and position in rotating machinery.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: What is the linear measurement range of the probe?
A3: From 0.25 mm to 2.3 mm (10 to 90 mils).
Q4: Does it support high-temperature applications?
A4: Yes, standard models operate up to +177°C; ETR versions support up to +218°C.
Q5: What kind of connector does it use?
A5: It uses a gold-plated ClickLoc miniature coaxial connector.
Q6: Can it be used for overspeed protection applications?
A6: Yes, when configured correctly and referenced with application notes.
Q7: Is calibration required for each probe and cable combination?
A7: No, the system is fully interchangeable and factory-calibrated.
Q8: How should the probe be gapped?
A8: Typically gapped at -9 Vdc, about 1.27 mm (50 mils) from the shaft surface.
Q9: Is there a specific shaft size required?
A9: It is recommended for shafts ≥76.2 mm in diameter to minimize scale factor variation.
Q10: Does it require any special tools for installation?
A10: No special tools are required due to the ClickLoc connector design.
