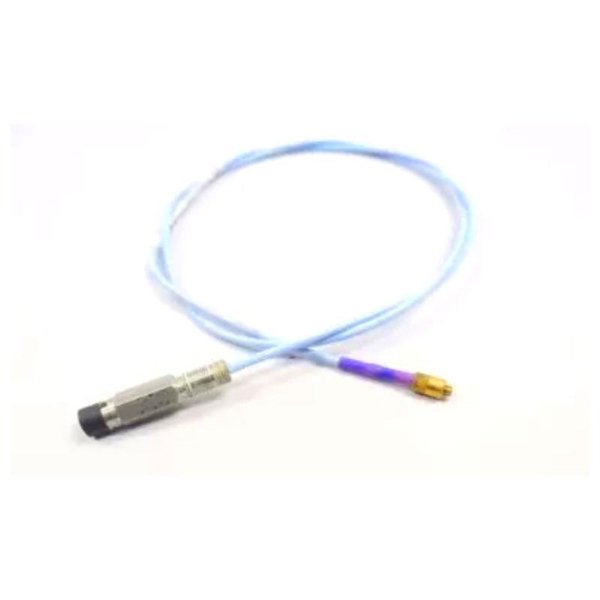

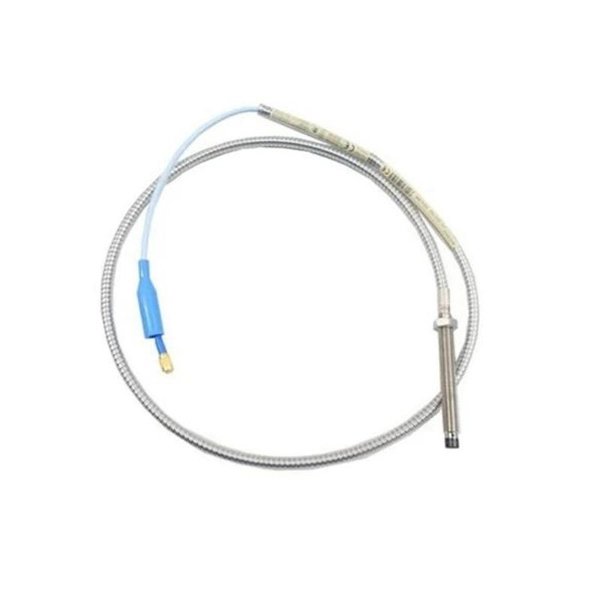

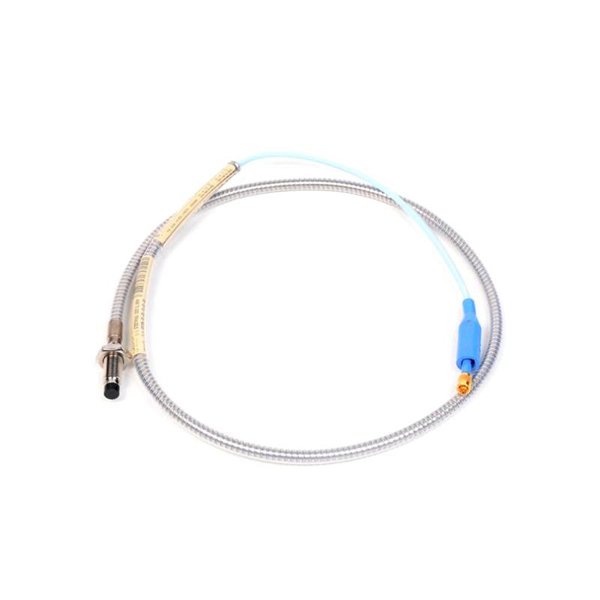

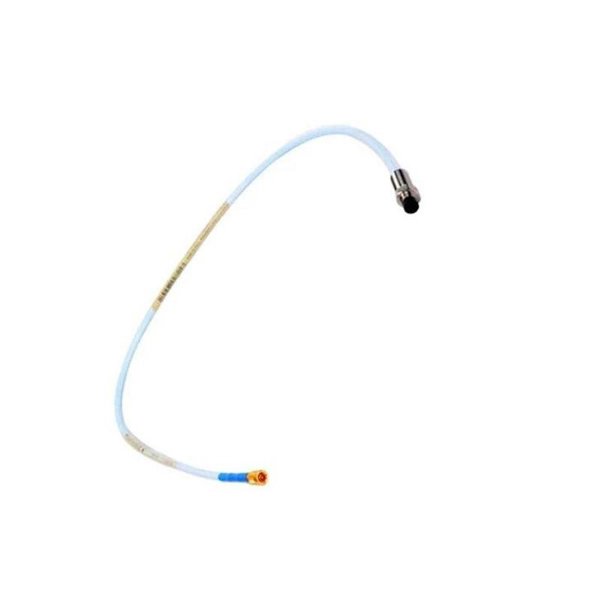

Bently Nevada 330104-00-06-50-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-06-50-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:5.0 meters
Weight:1.165kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-06-50-02-00 is part of the 3300 XL 8 mm Proximity Transducer System. It includes an 8 mm proximity probe engineered for precise shaft vibration and position measurements in critical rotating machinery. The model features a rugged armored cable and high immunity to electrical noise, offering reliability even in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe (Armored) |
| Part Number | 330104-00-06-50-02-00 |
| Thread Size | M10 x 1 |
| Total Cable Length | 5.0 meters |
| Weight | Approx. 1.165 kg (2.57 lbs) |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Case Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Insulation | FEP (Fluoroethylene Propylene) |
| Connector Type | ClickLoc, miniature coaxial, with protector |
| Max Temperature (Standard) | 177°C (350°F) |
| Max Temperature (ETR Option) | 218°C (425°F) tip, 260°C (500°F) cable |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Gap | 1.27 mm (50 mils) |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Shaft position and movement detection
-
Overspeed protection and Keyphasor signal generation
-
Suitable for use in hazardous industrial areas
Product Advantages
-
API 670 Compliance: Fully meets API 670 mechanical configuration and performance standards
-
Environmental Robustness: FluidLoc and CableLoc technology resist oil intrusion and provide high pull strength
-
ClickLoc Connectors: Secure, tool-free installation
-
Extended Temperature Range Available: Ensures performance in demanding thermal environments
-
Backward Compatibility: Compatible with legacy 3300 series 5 mm/8 mm systems
-
Improved EMI/RFI Immunity: Suitable for fiberglass enclosures without shielding
FAQ
Q1: What is the primary function of the 330104-00-06-50-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery using eddy current technology.
Q2: What materials is the probe made from?
A2: The probe case is stainless steel; the tip is PPS (Polyphenylene Sulfide).
Q3: Can this probe be used in hazardous areas?
A3: Yes, it supports CSA, ATEX, and IECEx certifications for Zone 0/1/2 environments.
Q4: What is the recommended shaft diameter?
A4: Minimum recommended shaft diameter is 76.2 mm (3 inches).
Q5: What connector type is included?
A5: It uses a miniature coaxial ClickLoc connector with a protector.
Q6: Is it compatible with non-XL 3300 series?
A6: Yes, it is fully backward compatible with non-XL 5 mm and 8 mm series.
Q7: What is the probe’s total cable length?
A7: This model has a 5.0-meter cable.
Q8: How does the system handle electrical noise?
A8: It offers high immunity to EMI and RFI without needing shielded enclosures.
Q9: Is the probe suitable for high temperatures?
A9: Yes, up to 177°C standard; up to 218°C/260°C with the ETR version.
Q10: What is the probe weight?
A10: Approx. 1.165 kg total including cable and connector.
