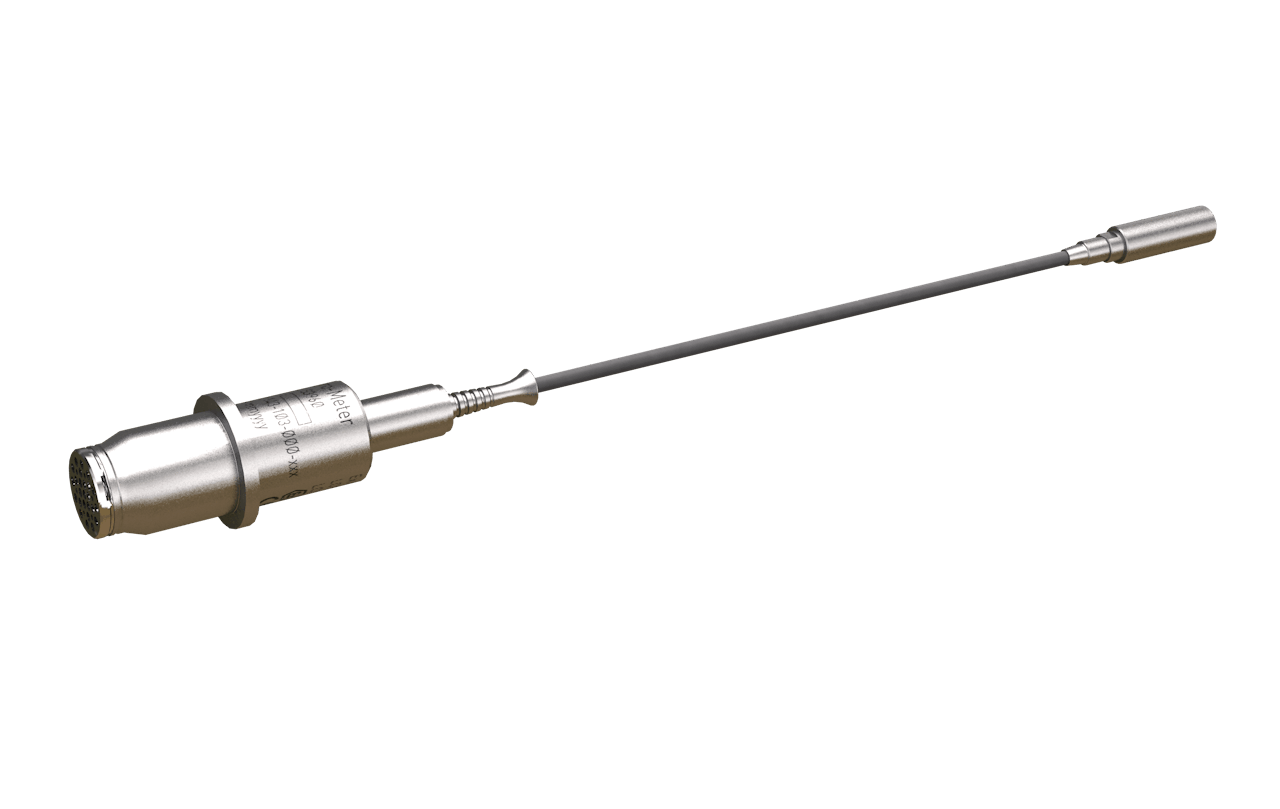

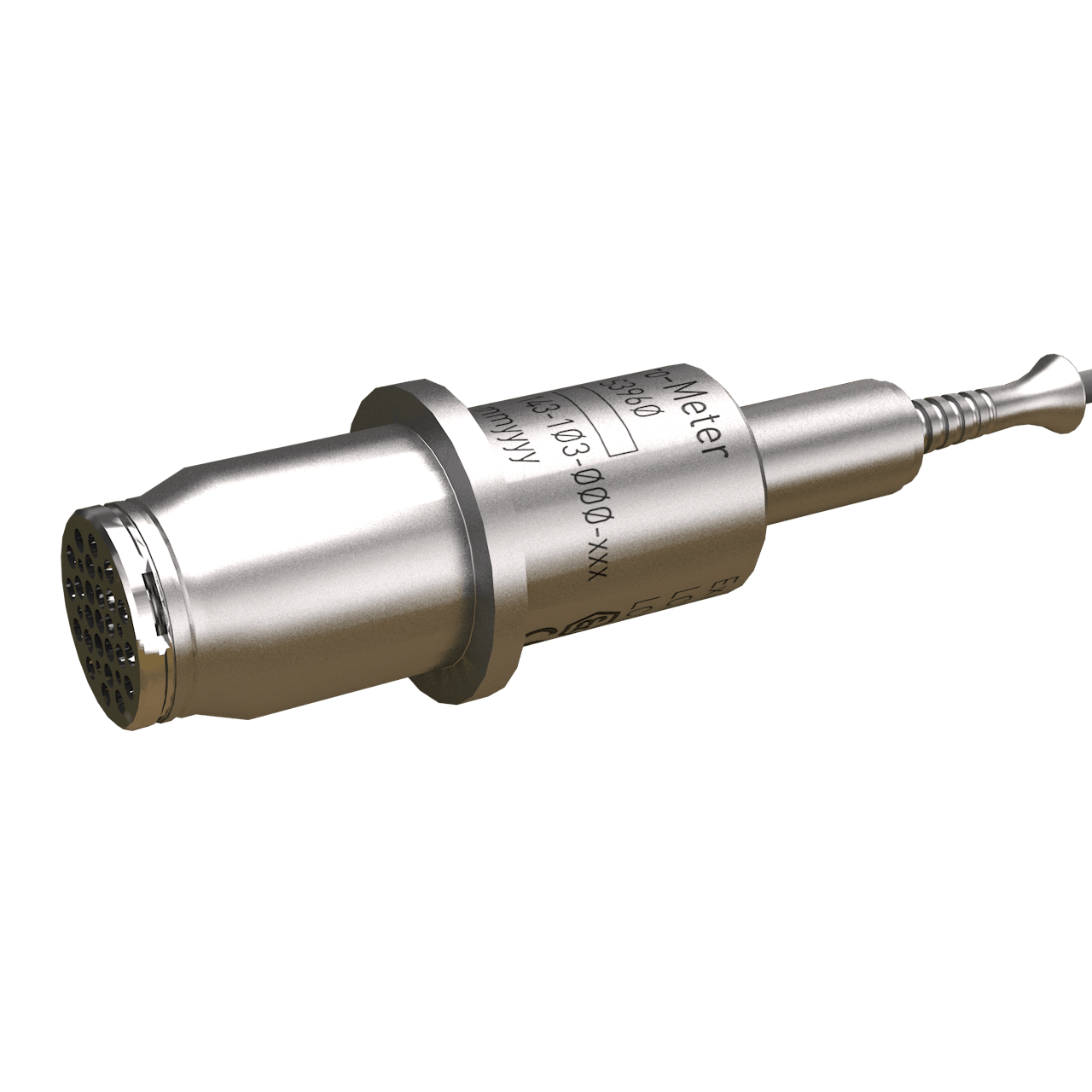

Vibro-Meter CP103 143-103-000-931 Piezoelectric Pressure Transducer
Item Number: CP103 143-103-000-931
Brand:Vibro-Meter
Lead Time: In stock
Description: Piezoelectric Pressure Transducer
Payment: T/T
Product Description
CP103 143-103-000-931 piezoelectric pressure sensor is a dynamic pressure sensor that uses a piezoelectric sensing element to output a charge signal. An external charge amplifier (such as an IPC704 signal conditioner) is required to convert this charge-based signal into a current or voltage signal. The sensor is specially developed for use in high temperature and/or hazardous areas (potentially explosive environments) and can be used for long-term measurement of pressure pulsations in extreme environments such as gas turbine combustion chambers.
Function & Features
- CP103 143-103-000-931 has a sensitivity of 232 pC/bar and can accurately sense pressure changes.
- CP103 143-103-000-931 provides one-piece mineral insulated (MI) cables of different lengths and can be terminated with high-temperature connectors or LEMO connectors.
- CP103 143-103-000-931 is suitable for combustion chamber pressure pulsation, surge monitoring/high-temperature reactors, engine combustion dynamic testing, etc.
Specifications
|
Parameter |
Details |
|
MODEL |
CP103 143-103-000-931 |
|
OUTPUT TYPE |
Charge (2-wire) |
|
SENSITIVITY |
16.0 pC/psi | 232 pC/bar |
|
OPERATING TEMPERATURE RANGE |
-65 to 1202 °F | -54 to 650 °C |
|
FREQUENCY RESPONSE |
Up to 10000 Hz |
|
DYNAMIC MEASUREMENT RANGE |
0.0006 to 290 psi | 0.00004 to 20 bar |
|
OVERLOAD CAPACITY |
Up to 3626 psi | Up to 250 bar |
|
LINEARITY |
±1% |
|
ACCELERATION SENSITIVITY |
≤0.05 pC/g |
|
RESONANT FREQUENCY |
>50 kHz |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Piezoelectric Pressure Transducer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
