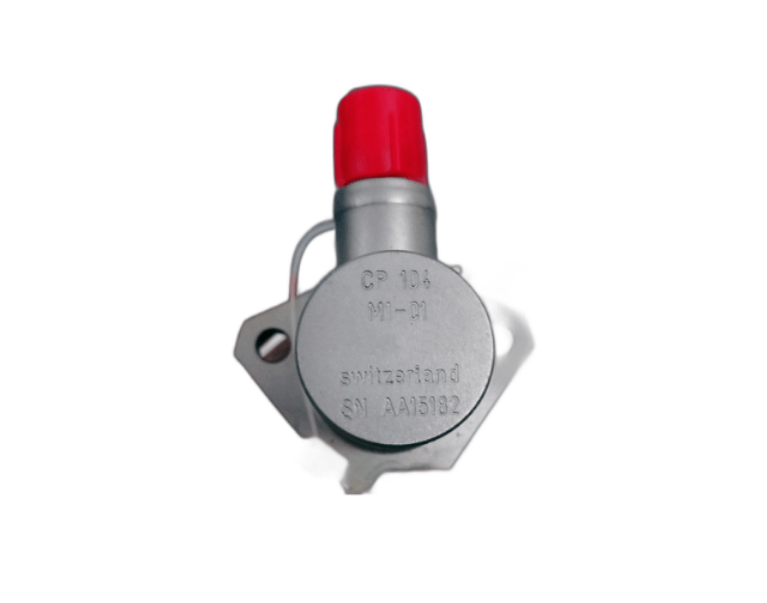

CP104 143-104-000-101 Piezoelectric Pressure Transducer
Item Number: CP104 143-104-000-101
Brand:Vibro-Meter
Lead Time: In stock
Description: Piezoelectric Pressure Transducer
Payment: T/T
Product Description
The CP104 143-104-000-101 piezoelectric pressure sensor is a compression mode dynamic pressure sensor using VC2 type single crystal material. It works in compression mode. The sensor supports soft wire or hard wire cable (select according to temperature requirements) and has acceleration compensation function. It has high temperature working capability and can operate normally in the temperature range of -196°C to +400°C. It is especially suitable for dynamic pressure measurement in extreme environments, such as the main circuit of the advanced boiling water reactor (ABWR).
Function & Features
- The CP104 143-104-000-101 has an acceleration compensation function that reduces the effect of acceleration changes on the measurement results.
- The CP104 143-104-000-101 can operate in the primary circuit of an ABWR (Advanced Boiling Water Reactor) and is suitable for specific nuclear circuits.
- The CP104 143-104-000-101 uses VC2 type crystal elements.
- The frequency response range of the CP104 143-104-000-101 is 2 Hz to 6000 Hz, which can effectively capture dynamic pressure signals within this frequency range.
Specifications
|
Parameter |
Details |
| Model | CP104 143-104-000-101 |
|
Sensitivity (at 2 Hz) |
190 pC/bar (nominal) |
|
Dynamic Measuring Range |
0.00005 bar to 20 bar (nominal) |
|
Overload Capacity (Spikes) |
Up to 100 bar |
|
Linearity |
±1% over dynamic measuring range |
|
Acceleration Sensitivity |
≤ 0.1 pC/g (≤ 0.0005 bar/g) |
|
Resonant Frequency |
> 30 kHz |
|
Frequency Response |
2 Hz to 6,000 Hz ±5% (Lower cutoff frequency depends on connected electronics) |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Piezoelectric Pressure Transducer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
