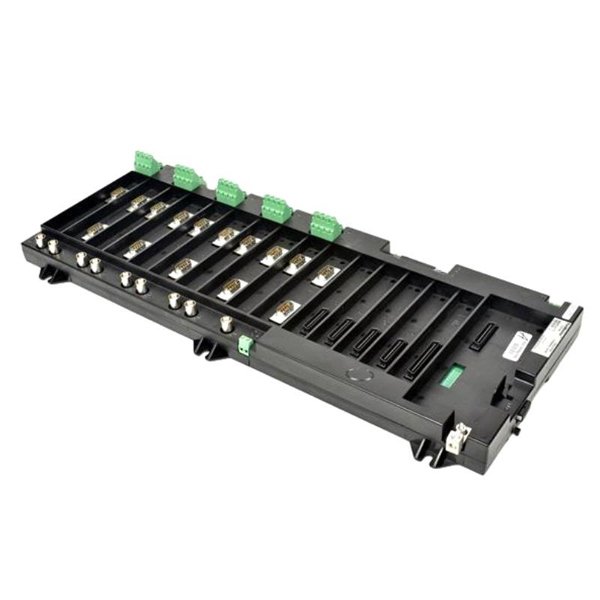

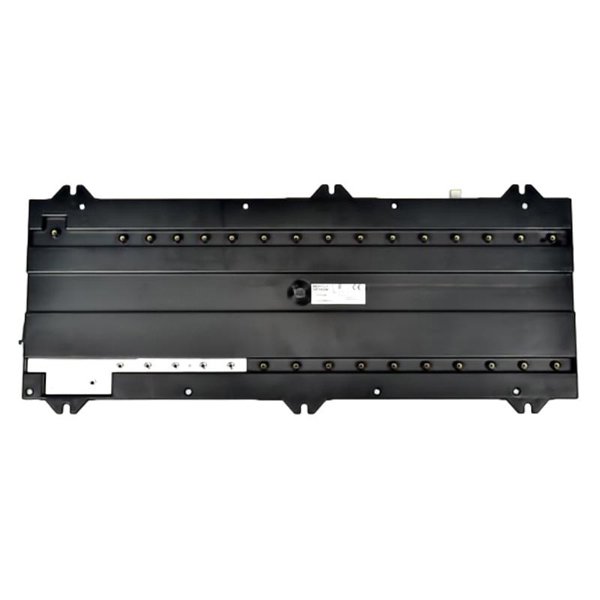

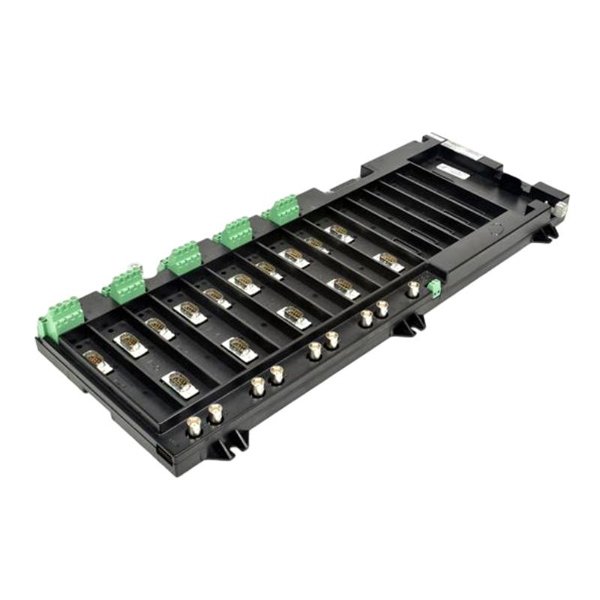

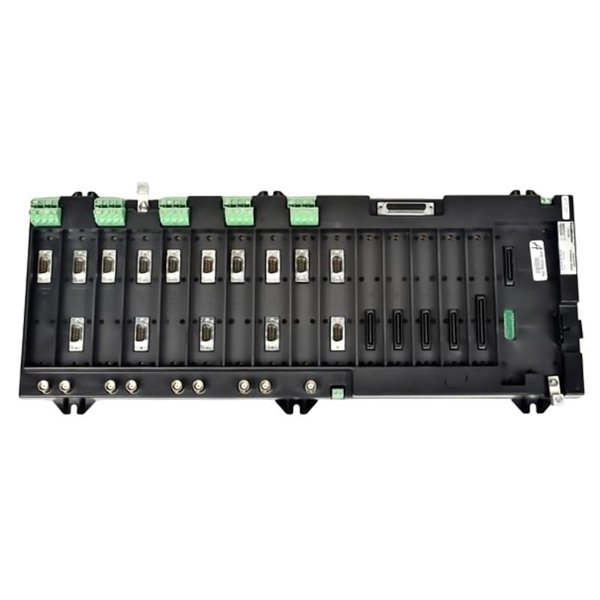

Bently Nevada 1701/06 141377-01 Isolator Terminal Base

The Bently Nevada 1701/06 141377-01 Isolator Terminal Base is a critical component used in machinery protection and condition monitoring systems. It provides the electrical isolation, secure termination, and reliable interface necessary for connecting sensors, monitors, and associated field wiring. Designed as part of Bently Nevada’s modular system architecture, the 1701/06 Isolator Terminal Base ensures that signals are transmitted safely and accurately from machinery sensors to monitoring modules, minimizing risks associated with electrical interference and grounding issues.

Its rugged construction, high-quality materials, and compliance with industrial standards make it suitable for use in demanding environments such as oil refineries, petrochemical facilities, power generation stations, and other heavy industrial plants. The isolator terminal base improves overall monitoring system reliability by protecting critical instrumentation from noise, transient voltages, and improper grounding.

Product Parameters

Product Applications

• Vibration Monitoring Systems – Used as a connection base for proximity probes and vibration sensors in turbomachinery.

• Machinery Protection Systems – Ensures safe and isolated transmission of signals to monitoring modules in Bently Nevada 1701/06 systems.

• Oil & Gas Industry – Widely used in compressor, turbine, and pump monitoring systems.

• Power Generation – Supports monitoring in gas turbines, steam turbines, and generators.

• Petrochemical Industry – Ensures reliability in high-noise environments and hazardous operating conditions.

• Industrial Automation – Provides secure wiring interface in large rotating machinery systems.

Product Advantages

1. High Electrical Isolation – Protects sensitive monitoring equipment from electrical surges and interference.

2. Secure Termination – Multiple terminal points allow for organized and reliable sensor wiring.

3. Durable Construction – Built with flame-resistant thermoplastic suitable for harsh industrial conditions.

4. System Compatibility – Seamlessly integrates with Bently Nevada vibration monitoring platforms.

5. Noise Immunity – Reduces the effect of EMI and ground loop disturbances.

6. Ease of Installation – Modular design simplifies wiring and replacement.

7. Safety Certified – Compliant with CE, CSA, and ATEX standards for hazardous environments.

8. Stable Performance – Consistent operation across a wide temperature range.

9. Compact Design – Saves panel space without sacrificing functionality.

10. Proven Reliability – Trusted by industries worldwide for critical machinery protection.

FAQ

1. What monitoring systems is the 1701/06 141377-01 compatible with?

   It is primarily designed for use with Bently Nevada 1701/06 Vibration Protection and Monitoring Systems.

2. What type of isolation does the terminal base provide?

   It provides galvanic isolation up to 2500 Vrms to protect against voltage transients and ground loops.

3. Can this base be used with proximity probes?

   Yes, it supports standard Bently Nevada proximity probes and associated cabling.

4. What is the maximum current supported per terminal?

   Each terminal supports up to 2 A, ensuring safe operation under standard load conditions.

5. Does the base reduce electromagnetic interference?

   Yes, it is designed with shielding and grounding provisions to minimize EMI.

6. How does the base integrate into the monitoring rack?

   It mounts directly in the system rack, providing secure wiring termination points for sensors and modules.

7. Can the base operate in hazardous environments?

   Yes, it is CSA and ATEX certified for safe use in hazardous and explosive atmospheres.

8. What protection does it provide for monitoring equipment?

   It isolates field wiring from monitoring electronics, preventing surges and ensuring stable signal transmission.

9. Is it hot-swappable during system maintenance?

   It is not hot-swappable; system power should be disconnected during installation or replacement.

10. What types of signals can be terminated on the base?

    It supports both dynamic vibration signals and static position signals from Bently Nevada probes and transducers.
