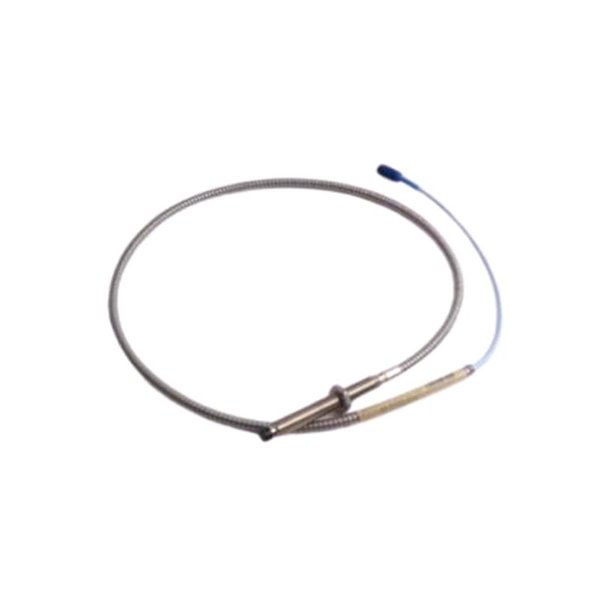

Bently Nevada 330104-00-03-05-11-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-03-05-11-05 3300 XL 8 mm Proximity Probe is a precision vibration and position sensing device designed for use in industrial rotating machinery monitoring systems. It is a critical component in predictive maintenance and machine protection applications, ensuring safe operation of turbines, compressors, pumps, motors, and other high-speed rotating equipment.

This probe is engineered to provide accurate and stable measurements of shaft vibration and displacement by detecting changes in the magnetic field between the probe tip and the rotating shaft. As part of the 3300 XL series, it is known for its robust design, long-term reliability, and compatibility with Bently Nevada’s monitoring systems.

Technical Specifications

Product Applications

• Turbomachinery: Monitoring shaft vibration, thrust position, and eccentricity in turbines and compressors.

• Pumps and Motors: Detecting misalignment, imbalance, or bearing faults.

• Gearboxes: Tracking gear mesh vibration and shaft behavior.

• Industrial Fans and Blowers: Ensuring reliability in continuous process operations.

• Predictive Maintenance Systems: Integrating with Bently Nevada monitoring platforms for real-time diagnostics.

Product Advantages

• High Accuracy: Provides precise vibration and displacement measurement for machine protection.

• Rugged Design: Withstands harsh industrial environments including high temperature and vibration.

• Extended Cable Options: Available in various lengths for flexible installation.

• Global Compliance: Certified for use in hazardous and explosive atmospheres.

• Compatibility: Fully compatible with Bently Nevada 3300 XL Proximitor Sensors and monitoring systems.

• Long-Term Reliability: Engineered for stable performance and minimal drift over extended service life.

FAQ

Q1: What is the typical sensitivity of the 330104-00-03-05-11-05 probe?

A1: It offers a typical sensitivity of 200 mV/mil (7.87 mV/µm).

Q2: Can this probe operate in high-temperature environments?

A2: Yes, it is designed to operate in a temperature range of -35 °C to +177 °C.

Q3: Which Proximitor sensors are compatible with this probe?

A3: It is fully compatible with Bently Nevada 3300 XL Proximitor sensors.

Q4: What is the frequency response of this proximity probe?

A4: The probe provides a frequency response from DC to 10 kHz.

Q5: How does this probe ensure measurement accuracy?

A5: It uses Eddy-current sensing technology with stable linear response and minimal thermal drift.

Q6: Is it certified for hazardous area applications?

A6: Yes, depending on configuration, it meets CE, ATEX, CSA, and IECEx standards.

Q7: What type of faults can it detect in rotating machinery?

A7: It can detect imbalance, misalignment, bearing wear, shaft rubs, and eccentricity.

Q8: How does cable length affect probe performance?

A8: The probe is factory-calibrated with matched cable length and Proximitor sensor to maintain accuracy.

Q9: Can the probe be used for thrust position monitoring?

A9: Yes, it is suitable for thrust position as well as radial vibration measurements.

Q10: What makes the 3300 XL series more reliable than earlier generations?

A10: The series offers improved insulation, corrosion resistance, and tighter calibration tolerances for long-term stability.
