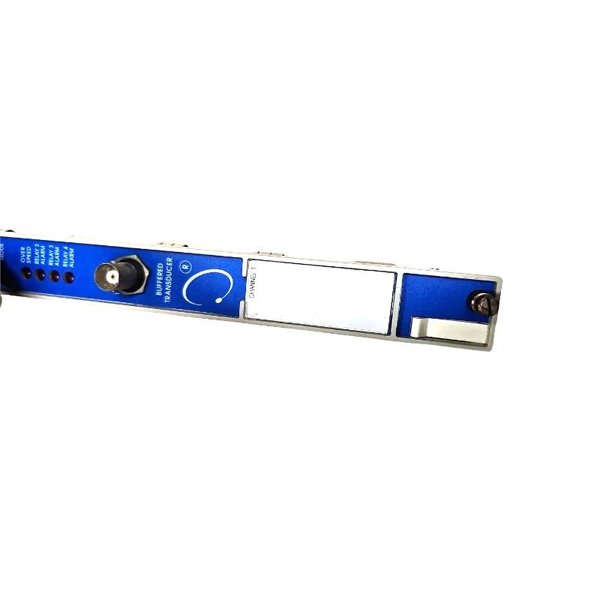

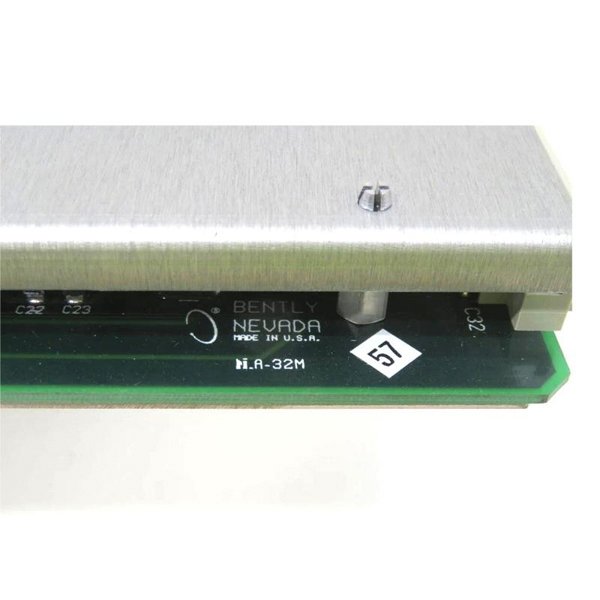

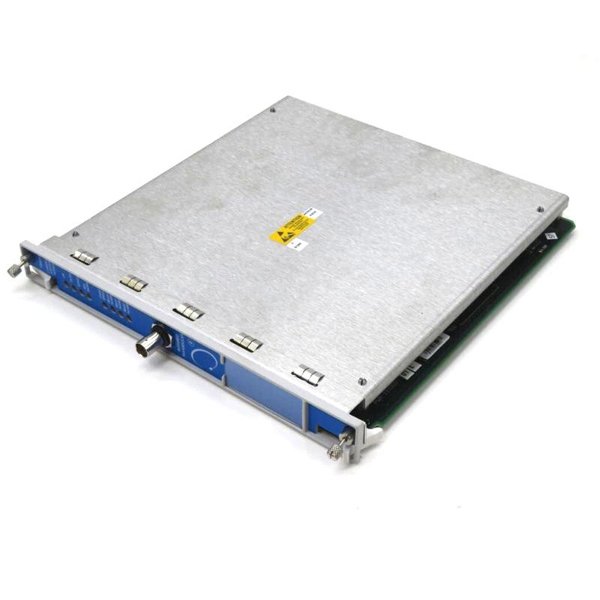

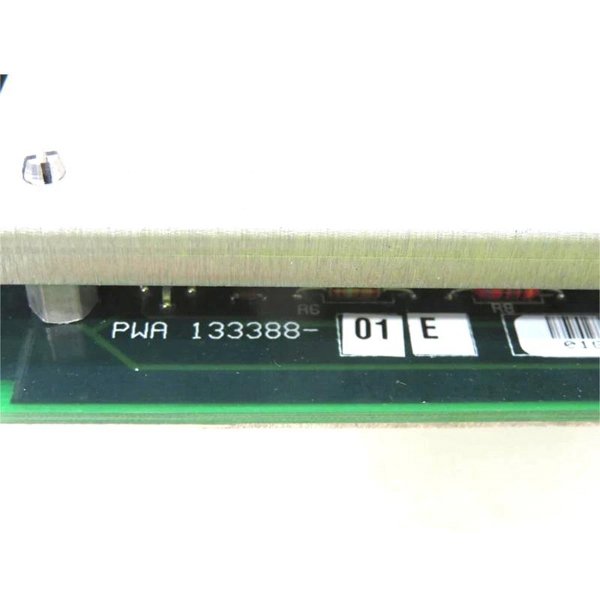

Bently Nevada 3500/53-02-00 133388-01 Overspeed Detection Module
Manufacturer:Bently Nevada
Product Number:3500/53-02-00 133388-01
Product Type:Overspeed Detection Module
Origin:USA
Dimensions:241.3 x 24.4 x 241.8 mm
Weight:0.82 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 3500/53-02-00 Overspeed Detection Module is a highly reliable and rapid-response module used for overspeed protection in rotating machinery. Compliant with API 670 and API 612 standards, it is an essential part of Bently Nevada’s 3500 Series Monitoring System and supports redundant, fault-tolerant configurations (2-out-of-2 or 2-out-of-3 voting logic).
Applications
-
Steam and gas turbines
-
Critical-speed protected rotating machinery
-
Power generation units
-
Oil & gas compressors
-
API 670 compliance installations
Advantages
-
Meets stringent API 670 & 612 standards
-
Redundant architecture enhances safety
-
Rapid fault detection with <30 ms alarm response
-
Buffered transducer outputs for diagnostics
-
Configurable thresholds and voting logic
-
Supports wide transducer compatibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Signal Range | +10.0 V to -24.0 V |
| Input Impedance | 20 kΩ |
| Power Consumption | 8.0 W (typical) |
| Transducers Supported | 3300/7200 Proximitor, magnetic pickups |
| Relay Type | SPDT, epoxy sealed |
| Max Switching Power | 120 W DC, 600 VA AC |
| Max Switching Current | 5 A |
| Speed Range | Up to 99,999 rpm, max 20 kHz input |
| Speed Accuracy | ±0.1 rpm (<100 rpm), ±1 rpm (100–10,000 rpm), ±0.01% (10k–99.9k) |
| Alarms | Under, Over, Danger levels with <30 ms delay |
| Recorder Output | +4 to +20 mA |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95% non-condensing |
| Compliance | CE, CSA/NRTL/C Class I Div 2 Groups A–D |
| Monitor Module Dimensions (HxWxD) | 241.3 x 24.4 x 241.8 mm |
| Monitor Module Weight | 0.82 kg |
| I/O Module Dimensions (HxWxD) | 241.3 x 24.4 x 99.1 mm |
| I/O Module Weight | 0.45 kg |
FAQ (Frequently Asked Questions)
Q1: What is the function of the 3500/53 Overspeed Detection Module?
A1: It monitors and protects rotating machinery against overspeed events, shutting down equipment if speed exceeds safe limits.
Q2: What voting logic configurations are supported?
A2: It supports 2-out-of-2 and 2-out-of-3 configurations for redundancy and high reliability.
Q3: What types of transducers are compatible with this module?
A3: It is compatible with Bently Nevada 3300/7200 series Proximitor sensors and magnetic pickups.
Q4: How fast can the system respond to an overspeed condition?
A4: The alarm response time is less than 30 milliseconds above 300 Hz.
Q5: Is the module compliant with API standards?
A5: Yes, it complies with API 670 and API 612 standards for overspeed protection.
Q6: What is the maximum speed it can monitor?
A6: It can monitor speeds up to 99,999 rpm with up to 255 events per revolution.
Q7: Can the module be configured remotely?
A7: Yes, setpoints and logic can be configured via 3500 software.
Q8: Does it support redundant power supplies?
A8: Yes, redundant power supplies are mandatory for safe operation.
Q9: What are the LED indicators on the front panel for?
A9: LEDs indicate OK status, communication, bypass mode, test mode, and alarms.
Q10: What kind of output does the module provide for recorders?
A10: It provides a 4–20 mA analog output proportional to measured speed.
