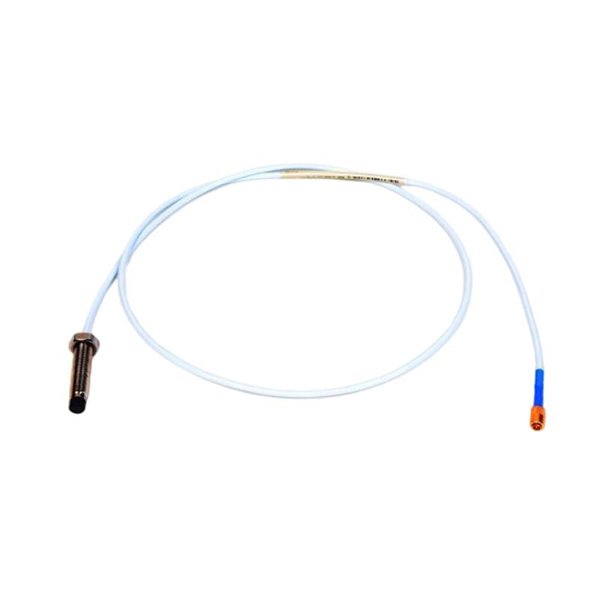

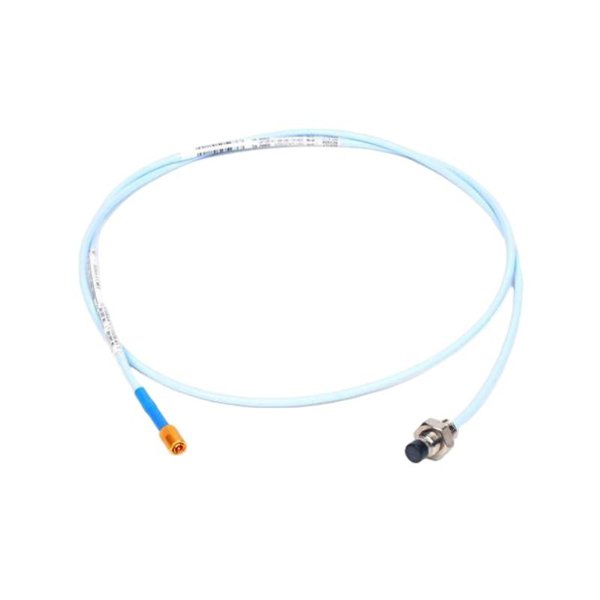

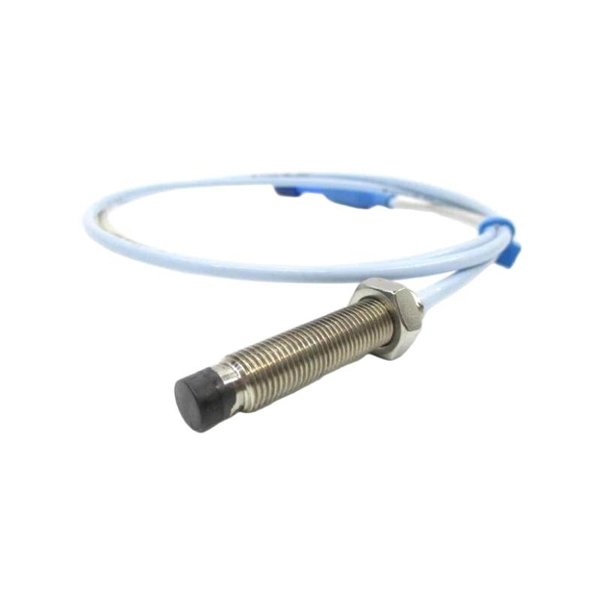

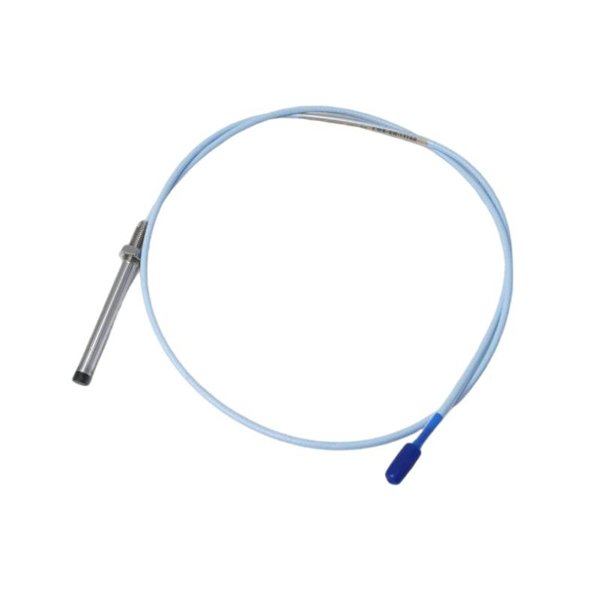

Bently Nevada 330101-00-16-50-02-CN 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-16-50-02-CN is a high-precision 8 mm proximity probe from the 3300 XL series, designed for accurate measurement of shaft vibration and position in various industrial machinery. This model is equipped with a 5.0-meter cable length and weighs 1.615 kg, offering an extended reach for complex installations. The probe is commonly used in demanding applications such as turbines, compressors, pumps, and electric generators, where precise vibration and shaft position data are essential for ensuring smooth operations and preventing unplanned downtimes.

The 3300 XL series is known for its reliability and durability in harsh industrial environments. It is engineered with high-quality materials, such as stainless steel for the probe tip, which ensures resistance to wear, corrosion, and extreme conditions. With its long cable length, the 330101-00-16-50-02-CN model is ideal for applications where traditional probes with shorter cables would be insufficient.

This proximity probe offers the flexibility needed for a wide variety of applications, providing a stable AC voltage output signal that integrates seamlessly with the Bently Nevada monitoring systems. The extended cable length allows for efficient installation even in large machinery setups while ensuring that measurement accuracy is not compromised.

Product Specifications

Product Applications

The Bently Nevada 330101-00-16-50-02-CN proximity probe is designed for high-precision vibration monitoring and shaft position detection in large, complex machinery setups. The long cable length of 5.0 meters makes it suitable for applications where traditional probes with shorter cables are not feasible.

Common applications include:

• Turbines: Monitoring rotor position and vibration for operational safety and efficiency.

• Compressors: Detecting and monitoring shaft vibrations to prevent mechanical issues and ensure stable performance.

• Electric Generators: Continuous monitoring of shaft displacement and vibration for optimal performance.

• Centrifugal Pumps: Early detection of misalignments or wear in the shaft for preventive maintenance.

• Industrial Fans: Detecting vibration anomalies to prevent damage and failure.

• Motors: Real-time measurement of shaft position to optimize operation and reduce wear.

Product Advantages

1. Extended Cable Length: With a total length of 5.0 meters, this probe offers exceptional flexibility in large or complex machinery installations.

2. Durable Construction: The stainless steel tip provides excellent resistance to wear, corrosion, and extreme temperatures.

3. Precision Measurement: The 8 mm sensing gap allows for precise shaft position and vibration measurements.

4. Wide Temperature Range: Operates in temperatures ranging from -40°C to +121°C, ensuring reliability in a variety of industrial environments.

5. High Signal Integrity: AC voltage output ensures stable and reliable data transmission.

6. IP65 Protection: The probe is protected against dust and water jets, making it suitable for both indoor and outdoor applications.

7. Versatile Mounting Options: Supports both threaded and flanged mounting configurations for easy integration into existing setups.

8. Lightweight Design: Despite its long cable length, the probe weighs only 1.615 kg, ensuring easy handling and installation.

9. Easy Integration: Fully compatible with Bently Nevada’s 3300 XL monitoring systems, allowing for seamless data collection and analysis.

10. Optimized for Predictive Maintenance: By providing accurate data on shaft condition and vibration, this probe aids in predictive maintenance, minimizing downtime and reducing maintenance costs.

FAQs

1. What is the sensing gap of this proximity probe?

   The sensing gap is 8 mm.

2. What is the total length of the cable?

   The total length is 5.0 meters.

3. What is the weight of the probe?

   The probe weighs 1.615 kg.

4. What is the operating temperature range for this probe?

   The operating temperature range is from -40°C to +121°C.

5. What type of output signal does this probe provide?

   The probe outputs an AC voltage signal.

6. What is the material used for the probe tip?

   The tip is made of stainless steel.

7. What are the mounting options for this probe?

   The probe can be mounted using either threaded or flanged options.

8. Is this probe compatible with other Bently Nevada monitoring systems?

   Yes, it is fully compatible with Bently Nevada’s 3300 XL series systems.

9. What environmental protection does this probe offer?

   This probe has an IP65 rating, providing protection against dust and water jets.

10. Can this probe be used in high-moisture environments?

    Yes, the IP65 rating ensures protection in environments with high moisture levels.
