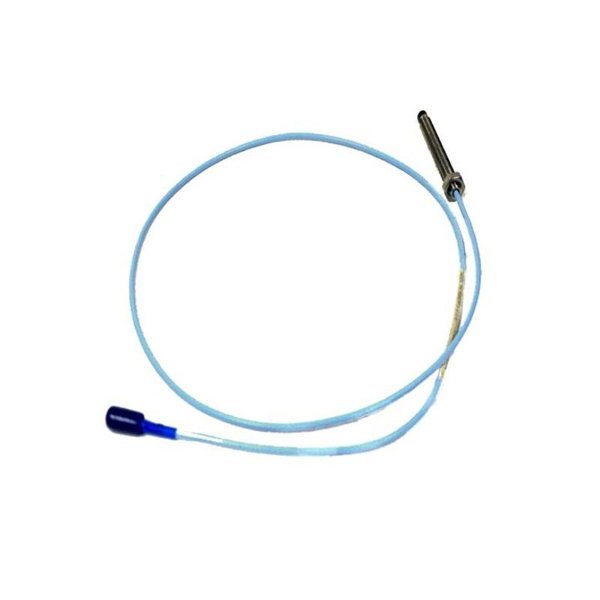

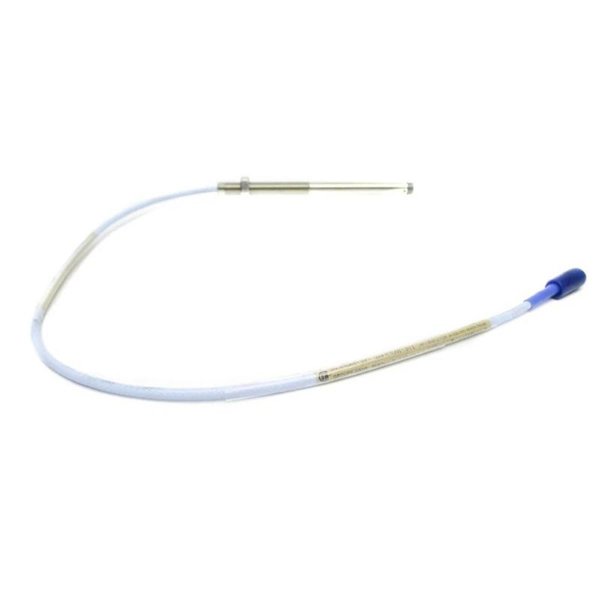

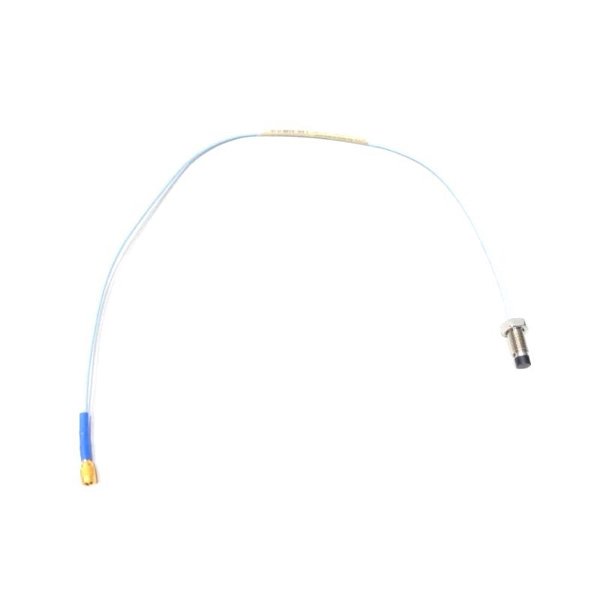

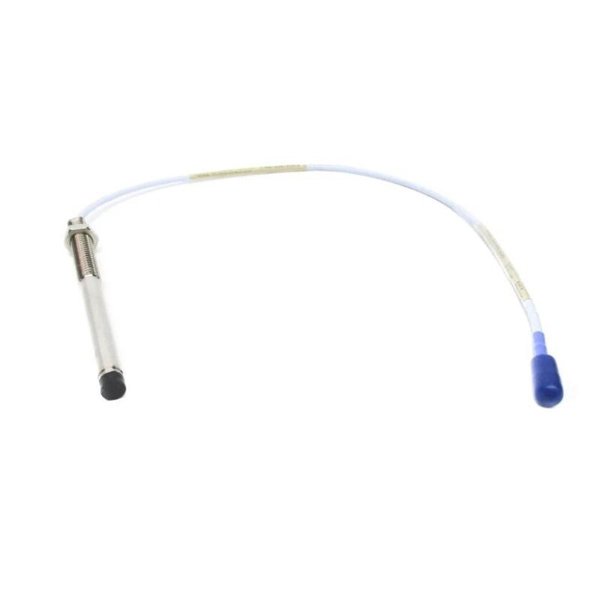

Bently Nevada 330101-00-16-10-02-CN 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-16-10-02-CN is part of the 3300 XL 8 mm Proximity Probe System, designed for precise measurement of shaft vibration and position in rotating machinery. Engineered to meet API 670 requirements, it ensures accuracy, stability, and reliability under demanding industrial environments. Its rugged stainless steel housing, PPS probe tip, and advanced connection technology provide long-term performance in hazardous locations.

Technical Specifications

Product Applications

• Monitoring shaft vibration in turbines, compressors, pumps, and motors

• Measuring shaft axial displacement and rotor position

• Detecting machinery malfunctions such as imbalance, misalignment, or bearing wear

• Condition monitoring in power plants, petrochemical industries, and refineries

• Integration with Bently Nevada Proximitor sensors and monitoring systems

Product Advantages

• High Accuracy: Provides precise static and dynamic displacement measurements.

• API 670 Compliance: Meets strict industry standards for reliability and interchangeability.

• Durable Design: Stainless steel housing and PPS tip withstand harsh industrial environments.

• Reliable Connectivity: ClickLoc connectors and CableLoc attachment ensure secure and corrosion-resistant connections.

• Ease of Installation: SpringLoc terminal strips reduce wiring time and improve connection integrity.

• Backward Compatibility: Interchangeable with earlier 3300 series probes and extension cables.

FAQ

Q1: What is the primary function of the 330101-00-16-10-02-CN probe?

A1: It measures both vibration and shaft position, delivering a voltage output proportional to the distance to the shaft surface.

Q2: Is this probe interchangeable with older 3300 series probes?

A2: Yes, it is fully interchangeable and backward-compatible with non-XL 3300 series probes and extension cables.

Q3: What is the recommended installation environment?

A3: It is suitable for industrial environments including hazardous zones, with certifications such as ATEX, IECEx, and NEPSI.

Q4: Can the probe handle high temperatures?

A4: Yes, it operates reliably between –51 °C and +177 °C.

Q5: What makes the ClickLoc connector unique?

A5: It is a gold-plated, corrosion-resistant connector that locks securely without special tools.

Q6: How does the TipLoc feature improve reliability?

A6: TipLoc provides molded construction that prevents the probe tip from loosening under vibration.

Q7: Does the probe require a matching Proximitor sensor?

A7: Yes, it must be paired with a compatible 3300 XL Proximitor sensor for correct calibration and linearity.

Q8: What kind of shaft materials can this probe measure?

A8: It is designed for conductive surfaces such as steel, which are standard in rotating machinery.

Q9: What are typical industries using this probe?

A9: Power generation, oil & gas, petrochemical, pulp & paper, and general process industries.

Q10: What is the probe’s weight and cable length?

A10: The total length is 1.0 m and the probe weight is 0.323 kg.
