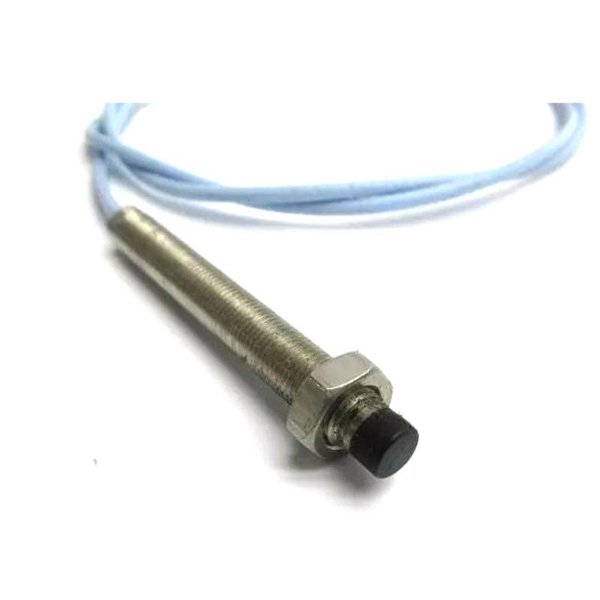

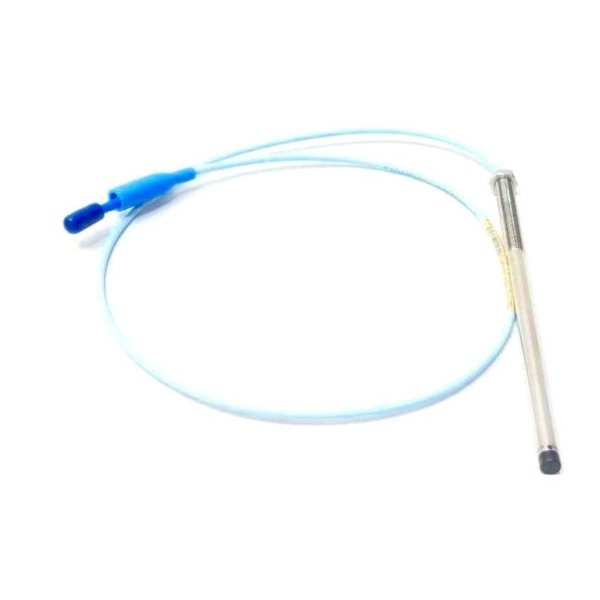

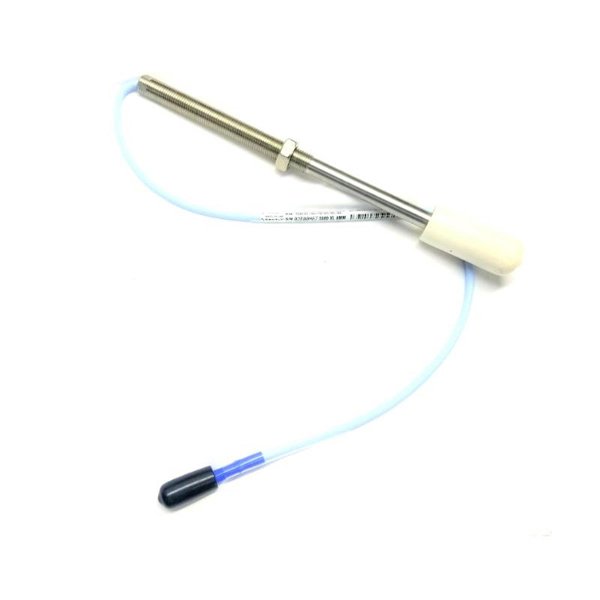

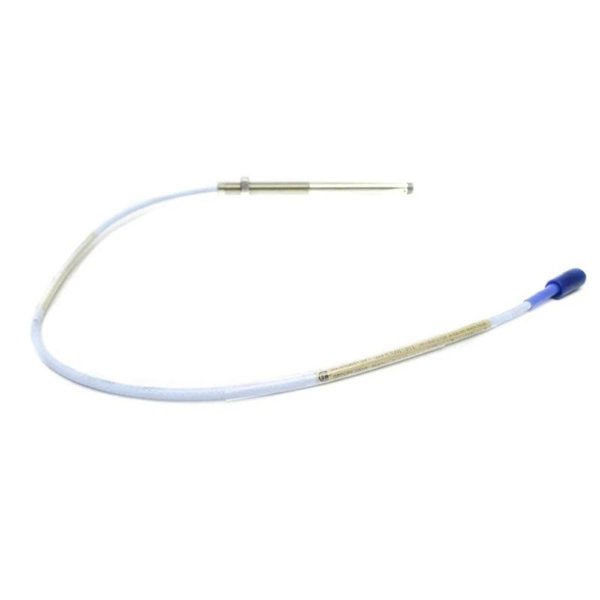

Bently Nevada 330101-15-40-10-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-15-40-10-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-15-40-10-02-00 3300 XL 8 mm Proximity Probe is a robust, non-contact transducer designed for measuring vibration and shaft position in rotating machinery. It converts physical displacement into a proportional voltage output. Its design ensures compatibility with API 670 standards and seamless interchangeability with other 3300 series components.
Product Features and Advantages
-
Fully compliant with API 670 mechanical, accuracy, and temperature standards.
-
High RFI/EMI immunity for reliable operation in industrial environments.
-
Patented TipLoc and CableLoc designs improve mechanical robustness.
-
Optional FluidLoc cable for liquid-tight installations.
-
No special tools needed due to ClickLoc connectors with positive locking.
Applications
-
Shaft vibration and position monitoring on turbines, compressors, and pumps.
-
Keyphasor reference and speed measurement.
-
Fluid-film bearing machinery condition monitoring.
-
Overspeed protection systems (with appropriate calibration).
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330101-15-40-10-02-00 |
| Total Length | 1.0 meter |
| Weight | Approx. 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C (standard) |
| Extended Temperature Option | Up to +218°C (probe tip) |
| Pressure Seal | Viton O-ring |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥ 76.2 mm |
| Cable Type | 75Ω triaxial FEP insulated |
FAQ
Q1: What is the linear measurement range of this probe?
A1: The linear range is 0.25 mm to 2.3 mm (10 to 90 mils).
Q2: Does this model comply with API 670?
A2: Yes, it fully meets API 670 requirements for configuration, accuracy, and stability.
Q3: Can it operate in high-temperature environments?
A3: Yes, standard up to 177°C, and with the ETR option up to 218°C at the probe tip.
Q4: Is it backward compatible with older 3300 systems?
A4: Yes, it is fully backward compatible and interchangeable with 3300 5 mm and 8 mm systems.
Q5: What is the minimum recommended shaft diameter?
A5: Recommended minimum shaft diameter is 76.2 mm for optimal accuracy.
Q6: Does it require calibration to specific materials?
A6: It is factory calibrated to AISI 4140 steel; other materials require recalibration.
Q7: How does the ClickLoc connector improve installation?
A7: It provides secure, finger-tight installation with audible feedback, eliminating over/under-tightening.
Q8: Can I use this probe in high-vibration environments?
A8: Yes, the robust mechanical design and secure connections ensure reliable operation under vibration.
Q9: Is there a risk of leakage through the cable?
A9: Standard cables can allow leakage; the FluidLoc option prevents fluid ingress.
Q10: What is the output sensitivity of the system?
A10: Approximately 7.87 V/mm (200 mV/mil) ±5% over the linear range.
