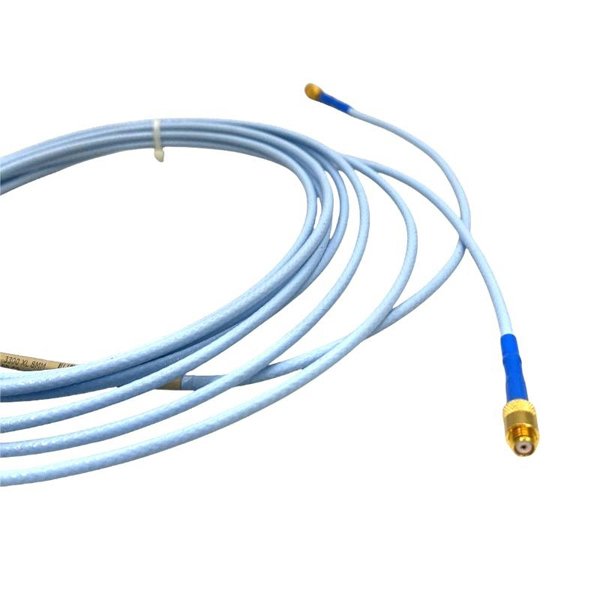

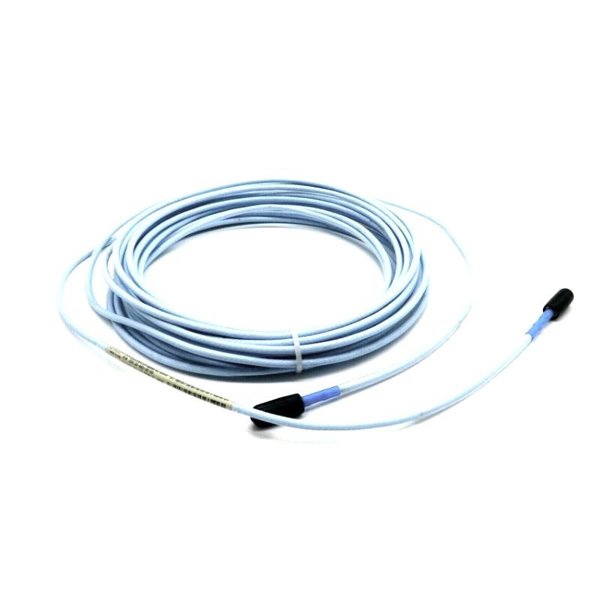

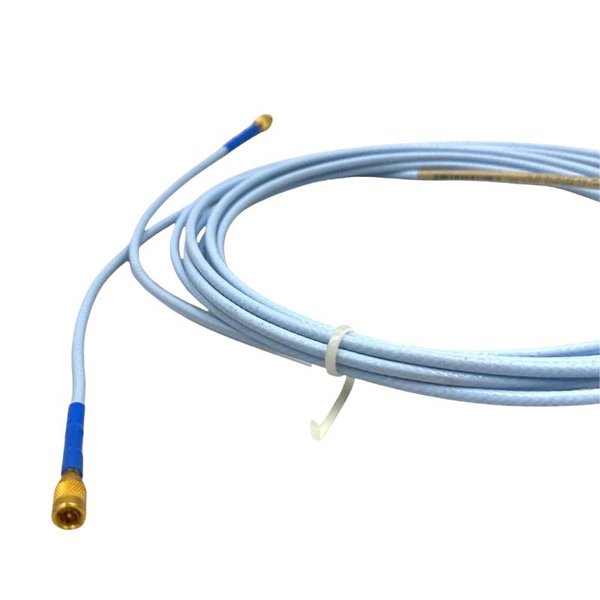

Bently Nevada 330130-045-02-00 3300 XL Standard Extension Cable

The Bently Nevada 330130-045-02-00 is a 4.5-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. It forms part of a system that includes a proximity probe and a Proximitor sensor. Designed for high reliability in industrial environments, it provides robust electrical connections between probe and sensor, ensuring accurate vibration and position measurements in machinery monitoring.

Technical Specifications

Applications

• Vibration monitoring in rotating machinery

• Shaft position detection on fluid-film bearing machines

• Speed and phase reference measurements

• Integration in API 670-compliant systems

• Machinery health monitoring in turbines, compressors, and pumps

Advantages

• ClickLoc Connectors: Easy to install, finger-tight, and secure with audible “click” feedback

• High Accuracy: Ensures precise signal transmission for dynamic and static measurements

• Robust Design: Withstands harsh industrial environments, oil ingress, and mechanical stress

• Compatibility: Interchangeable with other 3300 XL and non-XL series components

• Low Capacitance: Maintains signal integrity over longer distances

• Field-Proven Durability: Suitable for extended operation in high-temperature zones

Frequently Asked Questions (FAQ)

Q1: What systems is the 330130-045-02-00 cable compatible with?

A1: It is compatible with all 3300 XL 8 mm Proximity Transducer Systems.

Q2: Is the cable interchangeable with older 3300 series components?

A2: Yes, it is both electrically and mechanically interchangeable with non-XL 3300 series 8 mm components.

Q3: What does the ’02’ in the model number signify?

A3: It indicates the cable is a standard version with connector protectors installed.

Q4: Can this extension cable be used in high-temperature environments?

A4: Yes, it operates reliably up to 177°C (350°F).

Q5: Does it require any special tools for installation?

A5: No, the ClickLoc connectors allow finger-tight installation without tools.

Q6: What is the typical resistance of this cable?

A6: Around 0.99 ± 0.15 Ω for the center conductor and 0.30 ± 0.06 Ω for the shield.

Q7: Is it suitable for use in hazardous areas?

A7: Yes, when used with properly rated system components and barriers.

Q8: How is the environmental sealing ensured?

A8: Through connector protectors and FEP insulation to prevent oil ingress.

Q9: Can the cable be armored?

A9: Not this model. For armored versions, use options like 330130-045-01-00 or 03-00.

Q10: What is the minimum bend radius?

A10: 25.4 mm (1 inch), ensuring flexible routing without signal degradation.
