Bently Nevada 330103-00-06-05-02-00 3300 XL 8mm Proximity Probes

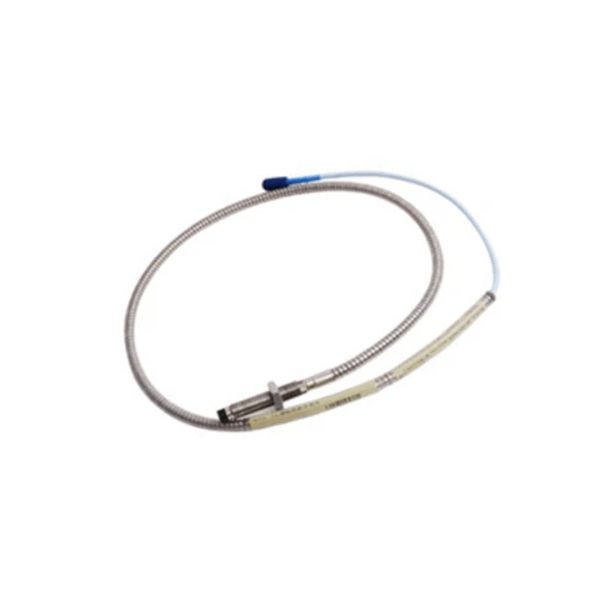

The Bently Nevada 330103-00-06-05-02-00 is a high-precision proximity probe from the 3300 XL 8mm series, designed and manufactured by Baker Hughes’ Bently Nevada division. As a trusted solution for machinery protection and condition monitoring, this probe is engineered for stability, resilience, and accuracy in mission-critical rotating equipment.

It functions as part of a proximity transducer system when combined with an extension cable and a 3300 XL Proximitor Sensor. The probe operates by detecting the distance between the probe tip and the rotating shaft of a machine, translating this displacement into a voltage signal for monitoring vibration, position, and runout in real-time.

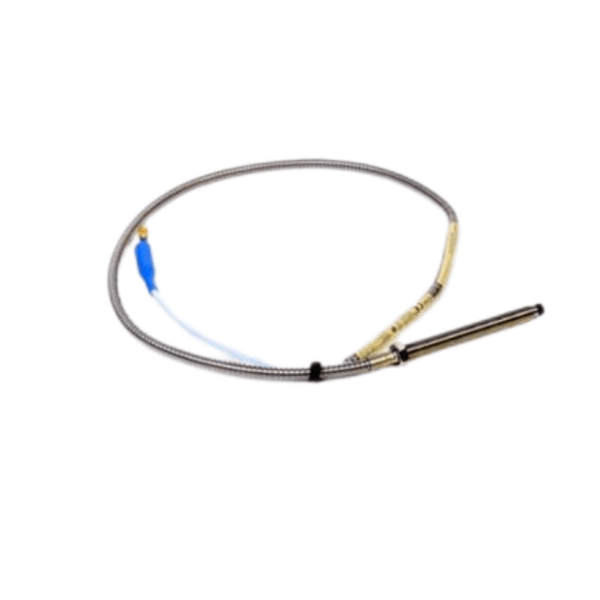

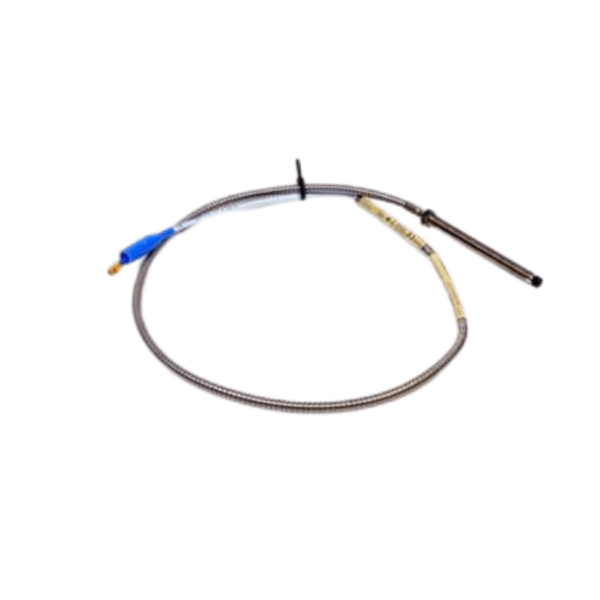

This specific model features a probe tip with an 8mm diameter, a 3/8-24 UNF-2A thread, and a 0.5 meter integral cable. It is widely implemented in sectors such as oil and gas, power generation, and industrial manufacturing, wherever reliable shaft condition monitoring is a necessity.

Technical Specifications

Applications

The 330103-00-06-05-02-00 proximity probe is suitable for a broad range of industrial applications, particularly for continuous condition monitoring and machine protection. Key uses include:

• Steam and gas turbines

• Centrifugal and reciprocating compressors

• Electric motors and large generators

• Industrial fans, pumps, and blowers

• Gear-driven equipment and couplings

It is extensively used in refineries, power plants, chemical facilities, offshore platforms, and production lines where critical machinery reliability is paramount.

Key Advantages

• Precision Engineered: Maintains excellent linearity and stability in proximity measurement even under harsh conditions.

• Robust Construction: Stainless steel body offers excellent resistance to corrosion, vibration, and wear.

• Extended Operating Range: Tolerates extreme temperatures up to 177°C (350°F), making it ideal for demanding applications.

• Plug-and-Play Compatibility: Seamlessly integrates with Bently Nevada’s 3300 XL extension cables and Proximitor sensors.

• Environmental Sealing: IP68-rated for protection against water and dust ingress in challenging environments.

• Reliability Under Load: Engineered for long-term performance in high-speed, high-temperature rotating machinery.

Frequently Asked Questions (FAQ)

1. Q: What components are required to complete the proximity system using this probe?

   A: The system requires a 3300 XL extension cable and a 3300 XL Proximitor Sensor module.

2. Q: What is the standard calibration gap for this probe system?

   A: The standard calibration gap is 2 mm (80 mils), consistent with API 670 guidelines.

3. Q: Is this probe certified for use in hazardous areas?

   A: It can be installed in hazardous environments when paired with appropriately certified Proximitor sensors and barriers.

4. Q: What is the function of the molded boot on the connector?

   A: It protects the connector interface from contamination, moisture, and mechanical stress.

5. Q: Can this probe be customized for different thread lengths?

   A: Yes, Bently Nevada offers custom configurations for various mounting requirements.

6. Q: How often does this probe require replacement?

   A: These probes are durable, but inspection is recommended annually or during major overhauls.

7. Q: What’s the maximum cable length from probe to sensor module?

   A: The system supports cable lengths up to 9 meters when using Bently Nevada extension cables.

8. Q: How accurate is the probe under high-speed vibration?

   A: It maintains excellent fidelity up to 10 kHz, suitable for high-speed shaft monitoring.

9. Q: Can it be used to measure axial thrust or radial vibration?

   A: Yes, depending on installation orientation, it can measure axial position or radial vibration.

10. Q: Is field calibration necessary?

    A: Factory calibration ensures performance, but field verification is advised during installation.
