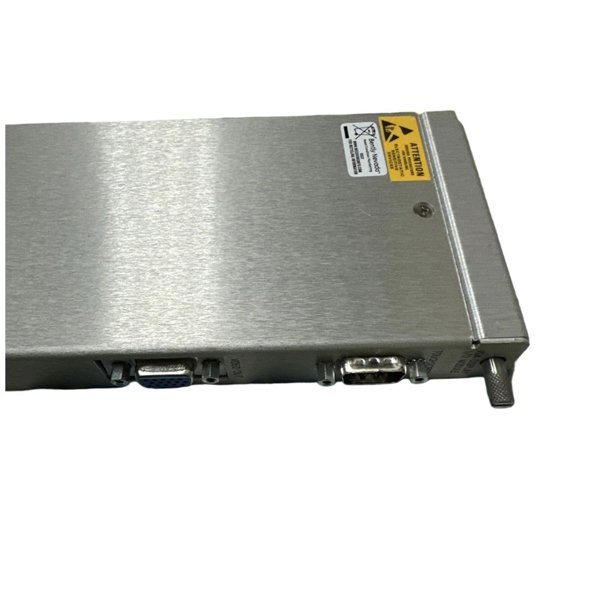

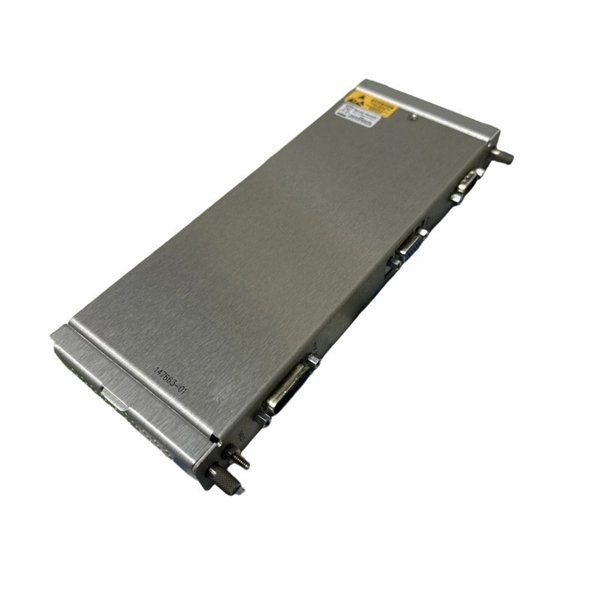

Bently Nevada 3500/94 147663-01 VGA Display I/O Module

The Bently Nevada 3500/94 147663-01 is a high-performance monitoring module designed for the 3500 Series Machinery Protection System. This module serves as a key component in critical industrial applications, offering reliable, real-time monitoring and protection for rotating machinery. With its robust construction and proven reliability, it is widely used in power generation, oil and gas, and heavy industrial environments. The module integrates seamlessly into existing 3500 Series racks, providing enhanced operational safety and reducing the risk of catastrophic equipment failure.

Product Advantages

• High Reliability: Designed for continuous operation in demanding industrial environments, ensuring minimal downtime.

• Accurate Monitoring: Delivers precise vibration, speed, and position measurements, critical for predictive maintenance.

• Flexible Integration: Compatible with the full 3500 Series platform and supports a wide range of sensors.

• User-Friendly Interface: Simplifies diagnostics and configuration, reducing the time required for commissioning.

• Enhanced Safety: Supports machinery protection functions to prevent damage and costly repairs.

• Durable Design: Constructed with high-quality materials to withstand harsh conditions including vibration, temperature extremes, and electrical noise.

Technical Specifications

Product Applications

The 3500/94 147663-01 module is widely used in industrial machinery protection systems, particularly in the following applications:

• Turbomachinery Monitoring: Protects turbines, compressors, and generators from overspeed, vibration, and misalignment damage.

• Power Generation: Ensures continuous operation of critical electrical generation equipment.

• Oil & Gas Facilities: Monitors pumps, motors, and compressors in upstream, midstream, and downstream processes.

• Pulp & Paper Plants: Safeguards rotating equipment in high-speed, high-load applications.

• Chemical & Petrochemical Plants: Provides early detection of potential machinery failure to reduce production loss.

• Industrial Manufacturing: Enhances reliability of heavy machinery with real-time protection functions.

Frequently Asked Questions (FAQ)

Q1: What is the primary purpose of the 3500/94 147663-01 module?

A1: It functions as a display router module to provide real-time data access and diagnostics for the 3500 Series machinery protection system.

Q2: Which racks are compatible with this module?

A2: The module is compatible with 3500/94 Series racks.

Q3: Can this module operate in high-temperature environments?

A3: Yes, it is designed to operate reliably in temperatures ranging from -40°C to 70°C.

Q4: What type of communication ports does the module support?

A4: It supports Ethernet, RS-232, and optionally Modbus communication protocols.

Q5: How much power does the module require?

A5: It requires a nominal 24 VDC power supply and consumes up to 2.5 A.

Q6: Is the module suitable for outdoor installations?

A6: While robust, it is recommended for installation in controlled environments or properly enclosed cabinets for outdoor use.

Q7: How is the module mounted?

A7: It is designed for standard 19-inch rack mounting.

Q8: Does it provide any indicators for module status?

A8: Yes, it includes multiple status LEDs for module health and communication status.

Q9: What industries commonly use this module?

A9: It is widely used in power generation, oil & gas, chemical, pulp & paper, and heavy industrial manufacturing sectors.

Q10: Can it interface with other 3500 Series modules?

A10: Yes, it integrates seamlessly with other 3500 Series modules for comprehensive machinery protection.
