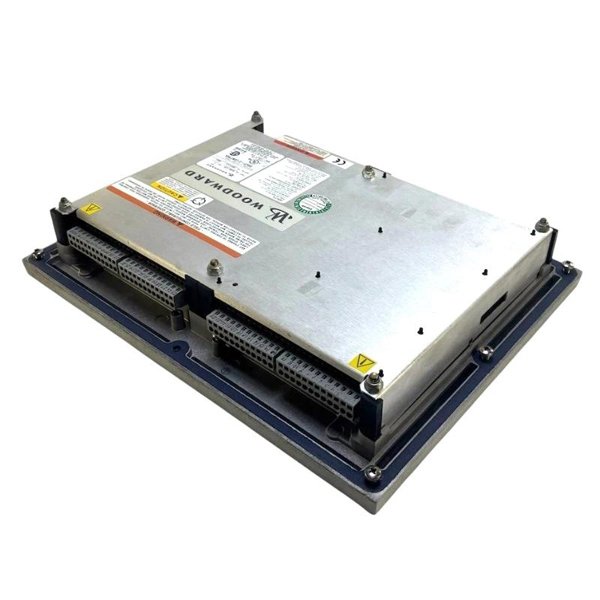

Woodward 8406-120 Digital Controller

The Woodward 8406-120 Digital Controller is a high-performance control unit designed to provide precise and reliable management of prime movers such as gas turbines, steam turbines, and large diesel engines. Developed by Woodward, a global leader in energy control solutions, this controller is part of the advanced 8400 series and is engineered to deliver exceptional control, monitoring, and protection functionality in industrial and utility-grade applications.

Equipped with powerful processors, multiple I/O capabilities, and real-time control logic execution, the 8406-120 is optimized for both standalone and integrated system operation. Its modular architecture allows for flexible customization, while its compatibility with industry-standard protocols ensures easy system integration.

Product Specifications

Product Applications

The Woodward 8406-120 controller is built for high-reliability environments where real-time engine/turbine control is essential. It is extensively used in:

• Gas Turbines: Controls fuel flow, temperature, and startup/shutdown sequences.

• Steam Turbines: Manages steam valves, load balancing, and safety shutoffs.

• Large Diesel Engines: Maintains speed, load control, and generator synchronization.

• Combined Heat and Power (CHP) Systems: Enables precise thermal and electrical output control.

• Marine Propulsion Systems: Ensures stable engine operations under dynamic conditions.

• Industrial Compressors and Pumps: Provides torque and speed control for critical processes.

Product Advantages

• Advanced Control Logic: Built-in real-time control algorithms for fast and accurate response.

• Flexible I/O Configuration: Supports a broad range of sensor and actuator interfaces.

• Network Integration: Native support for Modbus, CANopen, and Ethernet for system-wide connectivity.

• Scalable Architecture: Easily extendable for multi-machine or redundant system configurations.

• Rugged Design: Industrial-grade construction for harsh environmental conditions.

• User-Friendly Configuration: Compatible with Woodward’s ToolKit and Control Assistant software.

• Built-in Protection Functions: Includes over/under-speed protection, loss-of-signal detection, and self-diagnostics.

• Remote Monitoring: Supports remote SCADA and control center integration for real-time oversight.

• Compliance Ready: Fully certified for industrial, marine, and hazardous-area operations.

• Low Power Consumption: Efficient design ensures minimal electrical footprint in large systems.

FAQ

1. What types of communication interfaces are supported by the 8406-120 controller?

   It supports Ethernet, RS-485, Modbus TCP/IP, CANopen, and SNMP protocols.

2. Can the controller be used in redundant configurations?

   Yes, it supports redundant and fail-safe configurations for critical applications.

3. How many analog and digital I/O points can be configured?

   The controller supports multiple analog inputs (voltage/current) and digital I/O points depending on expansion modules.

4. Is the controller programmable for custom logic?

   Yes, it supports real-time logic programming through Woodward’s Control Assistant software.

5. Can the 8406-120 perform real-time speed and load sharing?

   Yes, it is equipped with dynamic PID control algorithms suitable for generator paralleling and load balancing.

6. Does the controller support HMI integration?

   Yes, it is compatible with remote HMIs via serial or Ethernet connections.

7. What is the controller’s response time for real-time signals?

   Typical response times are within milliseconds due to its high-speed DSP architecture.

8. Can firmware be updated remotely?

   Yes, firmware updates can be performed over Ethernet or serial links.

9. Is the controller suitable for hazardous environments like ATEX Zone 2?

   Yes, it is ATEX Zone 2 and CSA-certified for use in potentially explosive atmospheres.

10. Does the 8406-120 offer diagnostic capabilities?

    Yes, it includes self-diagnostics, alarm/event logging, and watchdog functionality.
