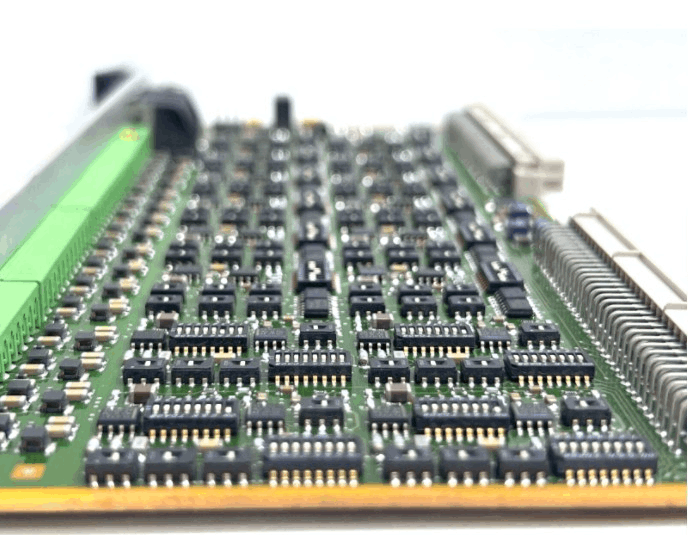

Vibro-Meter IOC16T 200-565-000-013 Input/Output Card
Item Number: IOC16T 200-565-000-013
Brand: Vibro-Meter
Lead Time: In stock
Description: Input/Output Card
Payment: T/T
Product Description
IOC16T 200-565-000-013 Input/Output Card is a signal interface card for CMC16 (condition monitoring card). It is installed at the rear of the ABE 04X rack and directly connected to the rack backplane through two connectors. Each IOC16T card is associated with a specific CMC16 card and is installed directly behind it. The card has a terminal block for connecting the transmission cables from the sensor and regulator. If the signal is provided through the "raw bus" and "speed bus" of the backplane, it can be directly selected without additional wiring.
Function & Features
- Interface configuration: IOC16T 200-565-000-013 is a 16-channel interface card for CMC16, equipped with a screw terminal block (48 terminals).
- Signal conditioning: IOC16T 200-565-000-013 performs pulse shaping, level adjustment, and AC/DC selection on speed, acceleration, displacement and other signals.
- Channel selection: The first 4 channels of IOC16T can be selected as speed or dynamic (such as vibration) inputs; the last 12 channels can be selected as dynamic or process inputs; the 16th channel can be selected as dynamic, process or thermocouple cold junction compensation input.
Specifications
|
Parameter |
Details |
| Prat Number | IOC16T 200-565-000-013 |
|
Input impedance |
200 kΩ |
|
Type |
D16 / A24 slave mode |
|
Transmit/receive rate |
1 Mbyte/s |
|
Supply voltage |
5 V<sub>DC</sub> ± 5%, +12 V<sub>DC</sub> and -12 V<sub>DC</sub> |
|
Consumption from +5 V<sub>DC</sub> supply |
2 W |
|
Consumption from +12 V<sub>DC</sub> supply |
1.2 W max. |
|
Consumption from -12 V<sub>DC</sub> supply |
1 W max. |
|
Height |
262 mm |
|
Width |
20 mm |
|
Depth |
125 mm |
|
Weight |
0.30 kg |
FAQ
Q: What is the brand?
A: Others
Q: What is the type?
A: I/O card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
