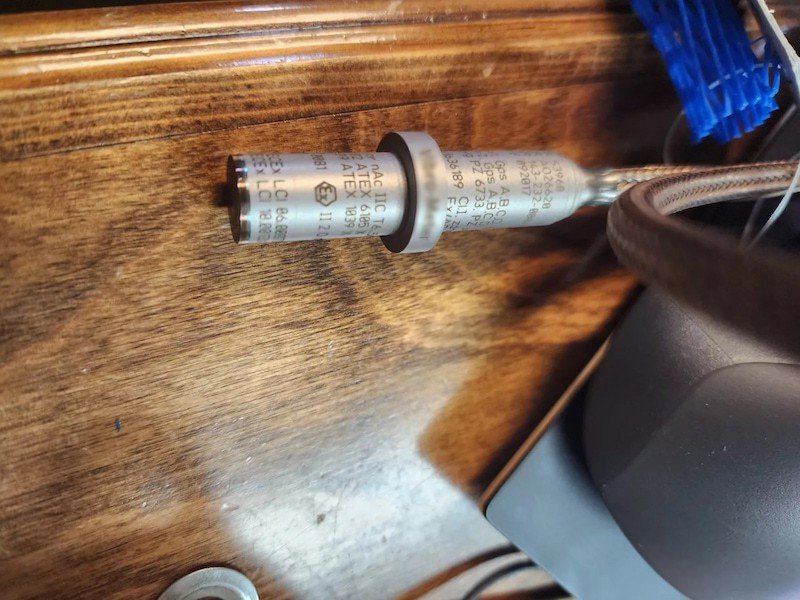

CP232 143-232-000-222 Piezoelectric Pressure Transduce
Item Number: CP232 143-232-000-222
Brand: Vibro-Meter
Lead Time: In stock
Description: Piezoelectric Pressure Transduce
Payment: T/T
Product Description
The CP232 143-232-000-222 is a dynamic piezoelectric pressure sensor based on the piezoelectric effect. It has a piezoelectric sensing element and requires an external charge amplifier (such as the IPC704 signal conditioner) to convert the charge-based signal into a current or voltage signal. Designed for extreme environments (such as gas turbine combustion chambers), it provides a charge output (750 pC/bar) and needs to be converted to a standard current/voltage signal with an IPC704 charge amplifier.
Function & Features

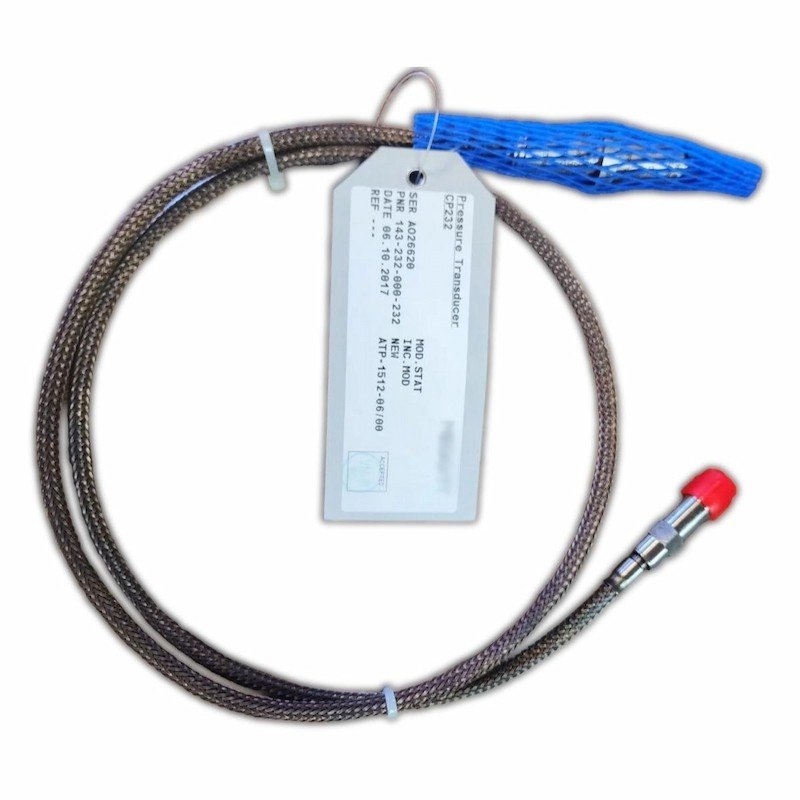

- Multiple cable configurations: cp232 143-232-000-222 is available with integral mineral insulated (MI) cables of different lengths and terminated with high-temperature connectors.
- Accurate measurements: The sensitivity of cp232 is up to 750 pC/bar, which enables it to accurately detect small changes in pressure and provide high-precision data for pressure measurement.
- Required accessories: cp232 143-232-000-222 must be ordered with IPC704 signal conditioner.
- Cable length: Select MI cable according to installation distance (1m/3m/5m optional).
Specifications
|
Parameter |
Value |
|
OUTPUT TYPE |
Charge (2 - wire) |
|
SENSITIVITY |
51.7 pC/psi |
|
OPERATING TEMPERATURE RANGE |
-67 to 968 °F |
|
FREQUENCY RESPONSE |
Up to 10000 Hz |
|
DYNAMIC MEASUREMENT RANGE |
0.0007 to 72.5 psi |
|
OVERLOAD CAPACITY |
Up to 1450 psi |
Typical applications
Gas turbine : Combustion chamber pressure pulsation monitoring
Aerospace : Engine combustion analysis
Industrial process : Dynamic pressure measurement in explosive environments
FAQ
Q: What is the brand?
A: Others
Q: What is the type?
A:Piezoelectric Pressure Transduce
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
