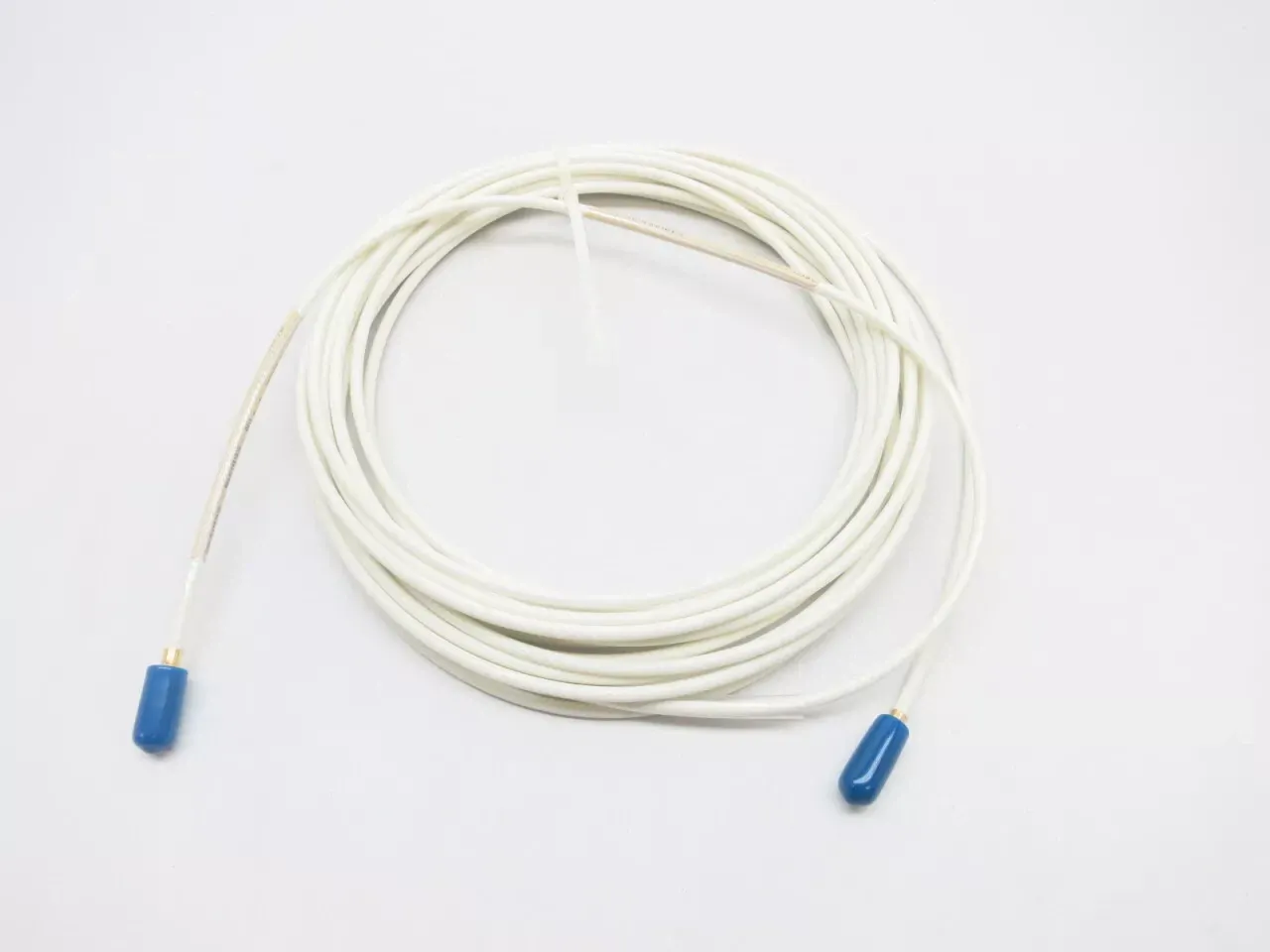

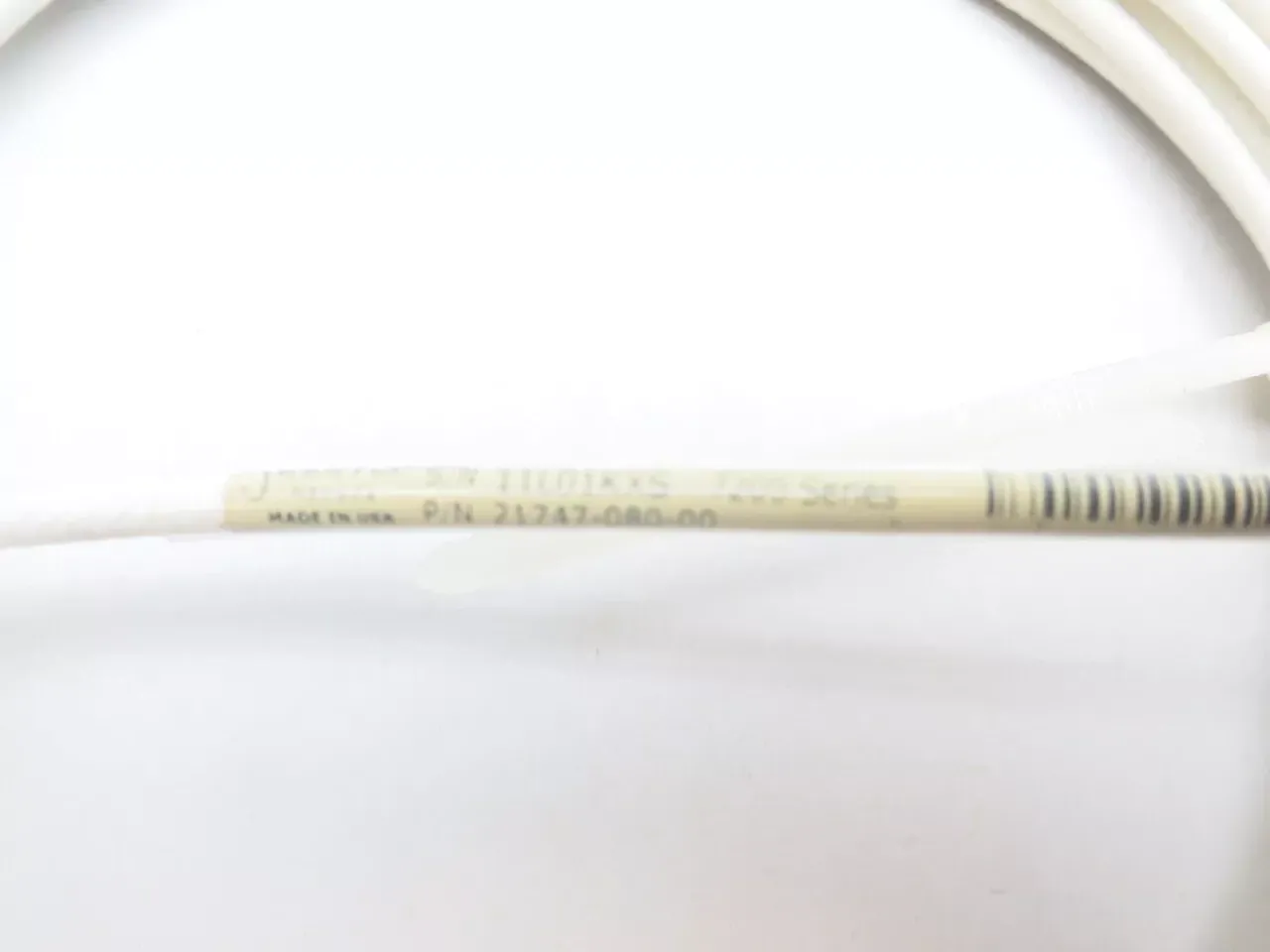

Bently Nevada 21747-080-00 Proximitor Probe Extension Cable
Item Number:21747-080-00
Brand:Bently Nevada
Lead Time: In stock
Description:Proximitor Probe Extension Cable
Payment: T/T
Product Description
The 21747-080-00 is a Proximitor Probe Extension Cable developed by Bently Nevada. It is designed as part of the Bently Nevada 3300 Series proximity transducer systems, which are non-contact, gap-to-voltage systems. These systems measure both static and dynamic distances between the probe tip and the observed object, typically used for shaft position and vibration monitoring.
Fuctions & Features
- Non-contact displacement measurement: Ideal for applications that require precise measurement without direct contact.
- Versatile: Commonly used for shaft position and vibration monitoring in rotating and reciprocating machinery.
- Widely applicable: Suitable for a wide range of machine types, including gas and steam turbines, compressors, pumps, centrifuges, motors and generators.
- API 670 compliant: Meets the industry standard for machinery protection and monitoring.
- Linear measurement range: 80 mil (2mm) for precise measurement.
- Frequency response: 0 Hz (DC) to 10 kHz, ensuring effective measurement over a wide frequency spectrum.
Specification
|
Details |
|
|
Determination Conditions |
Determined with a - 24 Vdc power supply, 10 kΩ load, and an AISI 4140 steel target at + 72°F(+22°C) |
|
INPUT - Power |
-17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
|
OUTPUT - Calibrated Range |
80 mils (2.0 mm), begins at approximately 10 mils(0.25 mm) from probe face |
|
Scale Factor |
200 mV/mil (7.87 V/mm), ±4% (measured in increments of 10 mils over the calibrated range) if calibrated as a system; within ±9.5% including interchangeability errors |
|
Linearity |
Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line if calibrated as a system; within 2.3 mils (0.06 mm) of a 200 mV/mil straight line including interchangeability errors |
|
Frequency Response |
0 to 10 kHz(0 to 600,000 cpm); -596 at 10 kHz(600,000 cpm) |
|
Temperature Sensitivity |
Typically -3% change in scale factor at + 150°F(+65°C) at 50 mils gap(1.27 mm) |
|
Extension Cable Operating Temperature |
-30°F to +350°F(-34°C to +177°C) |
|
Cable length option |
080 = 8.00 metres (315 inches) |
|
Armor option |
00 = Without armor |
FAQs
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A:Proximitor Probe Extension Cable
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
