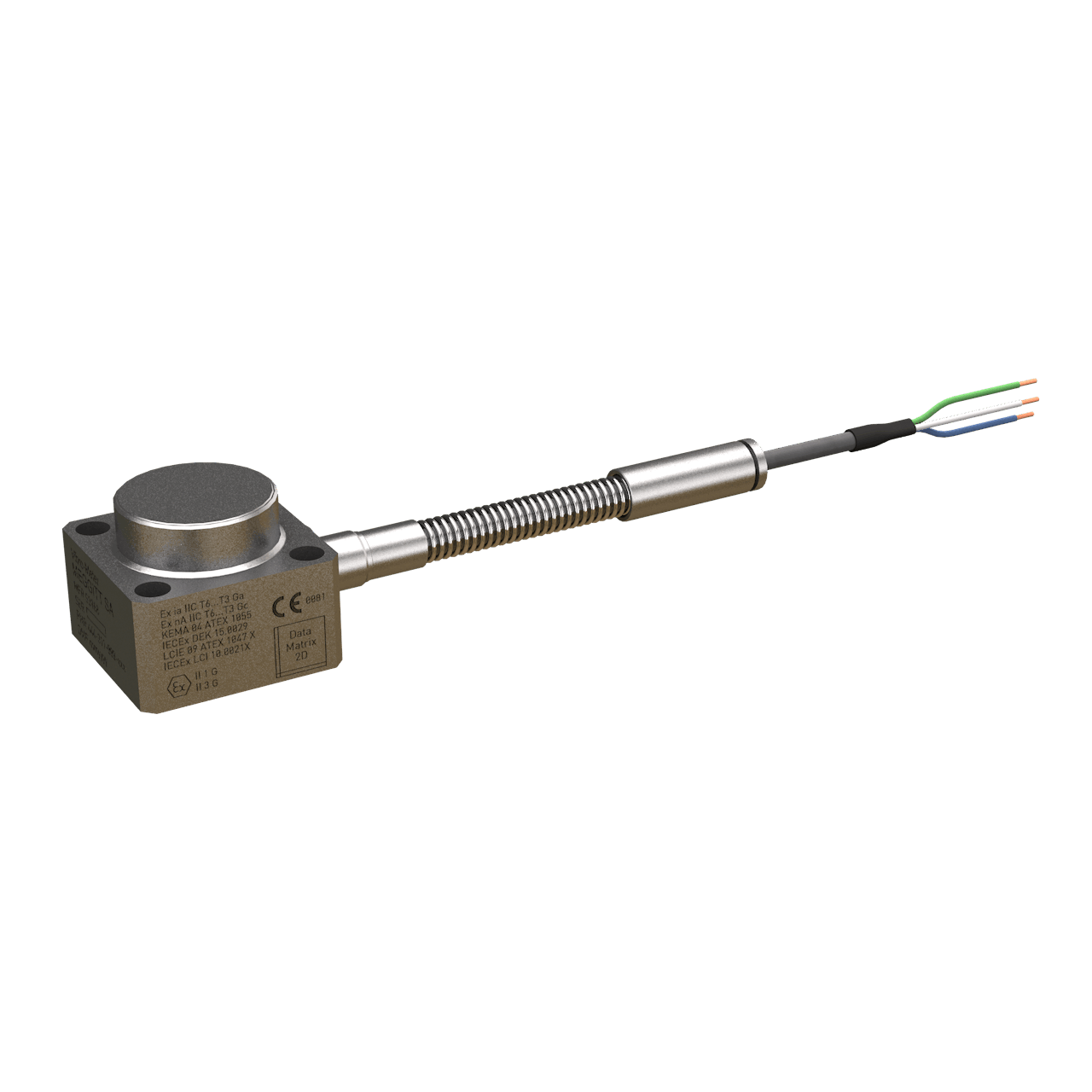

Vibro-Meter CE311 444-311-000-031 Piezoelectric Accelerometer
Item Number: CE311 444-311-000-031
Brand: Vibro-Meter
Lead Time: In stock
Description:Piezoelectric Accelerometer
Payment: T/T
Product Description
CE311 444-311-000-031 piezoelectric accelerometer is an industrial-grade vibration sensor with unique shear piezoelectric technology and built-in signal conditioning circuit, no additional amplifier is required. It is designed for vibration monitoring and protection of mechanical equipment in hazardous areas.
Applicable industries: energy, petrochemical, shipbuilding, mining, heavy machinery
Function & Features
- Sensing technology: Shear-Mode piezoelectric element uses polycrystalline material, built-in circuit directly completes charge-current conversion, no external charge amplifier is required
- Fully sealed structure: CE311 444-311-000-031 sensor and stainless steel protective hose are laser sealed and welded to prevent the intrusion of coolant, lubricating oil, water vapor and other pollutants.
- Armored shielded cable: CE311 444-311-000-031 comes standard with twisted pair shielded cable, optional explosion-proof version (Ex).
Specifications
|
Parameter |
Details |
| Part Number | CE311 444-311-000-031 |
|
Sensitivity |
50 μA/g±5% |
|
Dynamic measurement range |
0.004 to 40 gpeak |
|
Overload capacity (spikes) |
Up to 100 gpeak |
|
Linearity |
±1% over dynamic measurement range |
|
Transverse sensitivity |
< 3% (measured at 15 Hz with 5 g) |
|
Resonant frequency (mounted) |
20 kHz typ. |
|
Connection |
Flying leads |
|
Weight - Sensor |
245 g (0.54 lb) approx. |
|
Weight - Cable/flexible stainless - steel hose |
135 g/m (0.091 lb/ft) approx. |
FAQ
Q: What is the brand?
A: CE311
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
