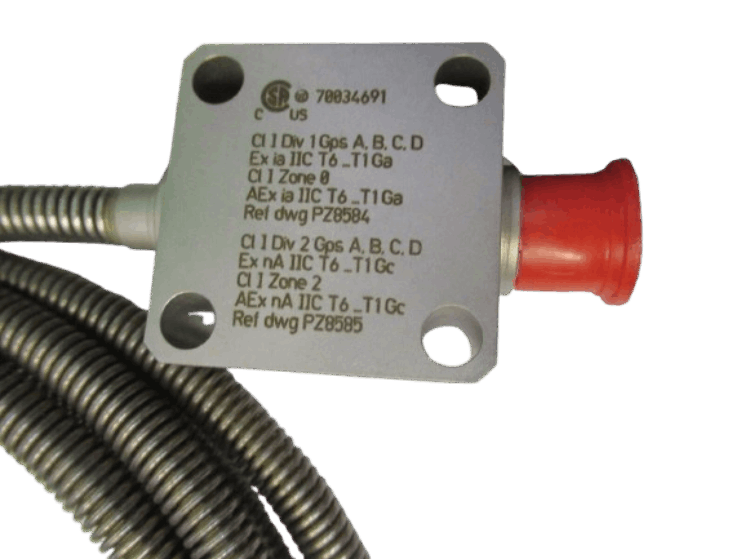

Vibro-Meter CE134 444-134-000-405 Piezoelectric Accelerometer
Item Number: CE134 444-134-000-405
Brand:Vibro-Meter
Lead Time: In stock
Description: Piezoelectric Accelerometer
Payment: T/T
Product Description
CE134 444-134-000-405 piezoelectric accelerometer is an industrial-grade piezoelectric accelerometer. Its core innovation lies in the integrated electronic module (built-in charge-current conversion), which does not require an external charge amplifier and can directly output current modulation signals (5 µA/g), suitable for long-distance transmission. The sensor adopts a fully sealed welded structure (AISI 316L stainless steel housing + flexible protective hose) to resist erosion by coolants, lubricating oils, steam and other pollutants.
Function & Features
- The CE134 444-134-000-405 has built-in electronics (temperature zone C) that convert charge to current and provide a current modulated output signal suitable for long distance transmission without the need for external signal conditioners and without the need to withstand high temperature zones A and B close to machinery.

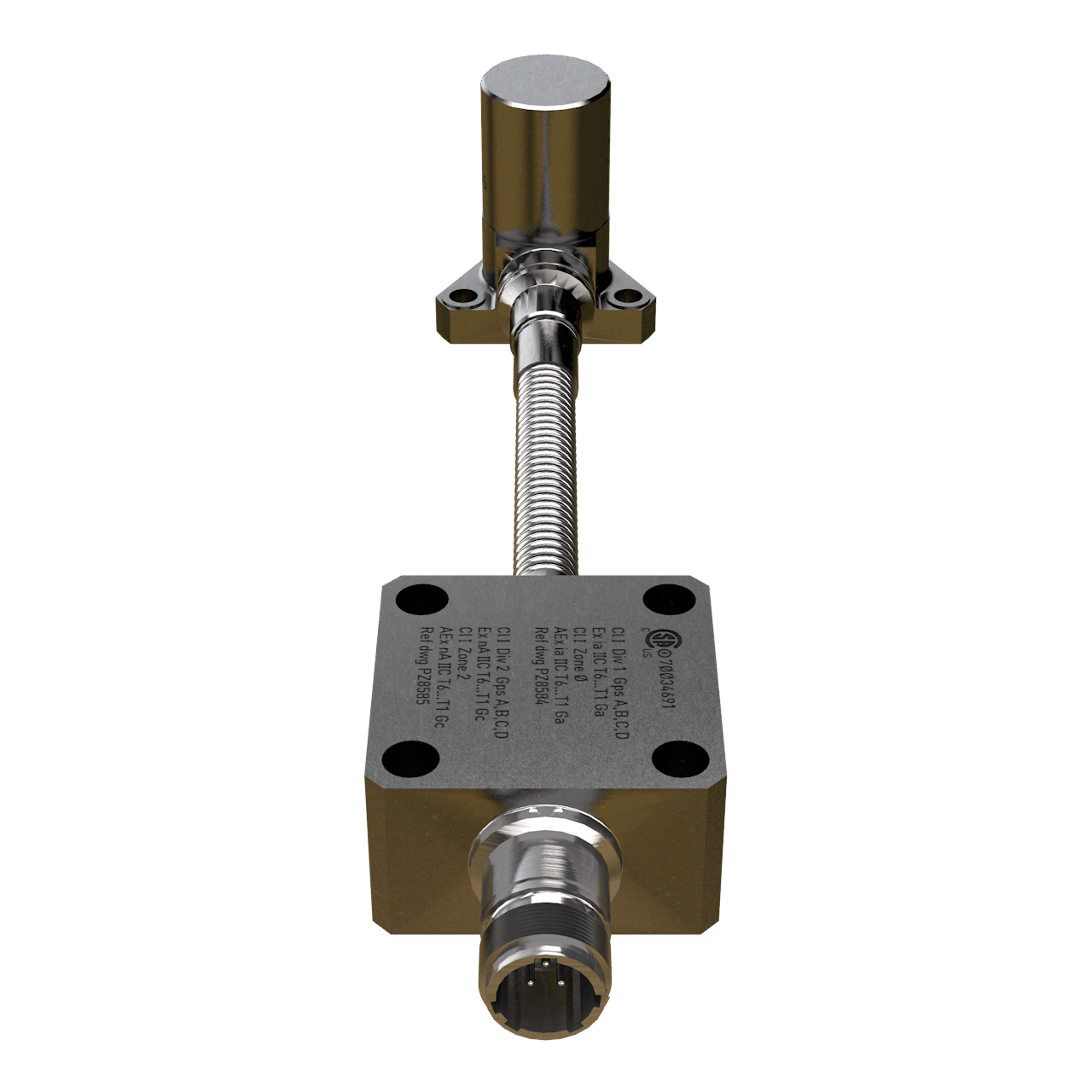

- The CE134 444-134-000-405 sensor head, protection tube and electronics housing are connected by gas-tight welding and are equipped with a flexible stainless steel leak-proof protection tube.
- The CE134 444-134-000-405 uses a centrally mounted symmetrical compression mode measuring cell (ceramic material) combined with an integral housing insulation design.
Specifications
|
Parameter |
Details |
|
Model |
CE134 444-134-000-405 |
|
Sensitivity (at 120 Hz) |
5 μA/g ±5% |
|
Dynamic measurement range (random) |
0.001 to 400 g PEAK. Note: The sensor resonance effect is corrected by a filter. |
|
Overload capacity (spikes) |
Up to 1000 g PEAK (random vibration) |
|
Linearity |
≤1% over dynamic measurement range |
|
Transverse sensitivity (measured with 5 g at 15 Hz) |
≤5% |
|
Resonant frequency (mounted) |
23 kHz typ. |
|
Frequency response - Low - frequency (LF) version |
-3 dB at 5 Hz. ±5% from 10 to 500 Hz (with typical deviations of −10% at 1000 Hz and −30% at 2000 Hz). |
|
Frequency response - High - frequency (HF) version |
-3 dB at 5 Hz. ±5% from 10 to 5000 Hz. ±10% from 5000 to 10000 Hz. |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
