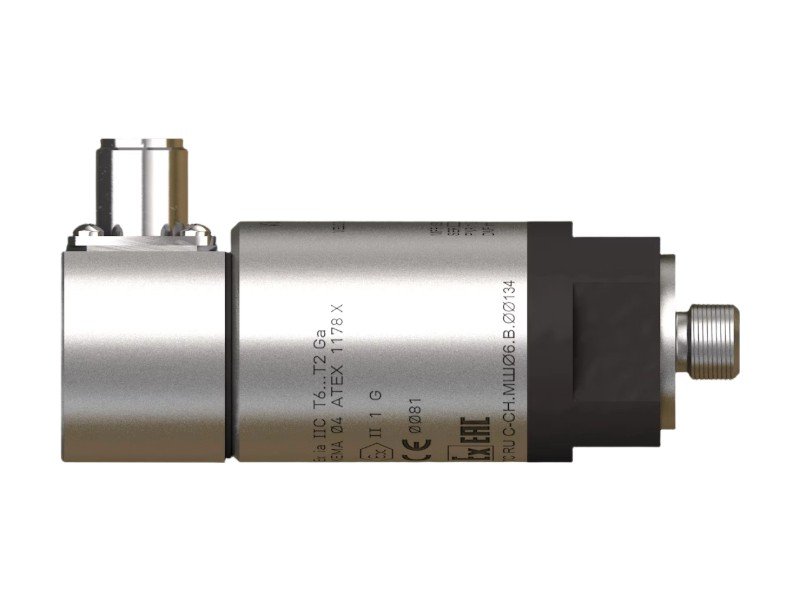

Vibro-Meter CV213 110-213-000-012 Velocity Transducer
Item Number:CV213 110-213-000-012
Brand:Vibro-Meter
Lead Time: In stock
Description:Velocity Transducer
Payment: T/T
Product Description
The CV213 110-213-000-012 is a velocity sensor for measuring absolute vibration. Designed for low-frequency vibration monitoring, it operates based on the principle of electromagnetic induction. When used with a dedicated cable assembly, it connects to monitoring equipment without the need for additional signal conditioning or power supply, directly outputting a voltage signal proportional to the vibration velocity.
Function & Features
- Self-generating Operation: The core of the CV213 110-213-000-012 sensor is a moving coil-magnet structure (a coil moves around a permanent magnet). When vibration occurs, the coil cuts through the magnetic flux lines, directly generating a voltage signal based on the principle of electromagnetic induction.
- Designed for Specific Industrial Environments: Unlike its CV214 counterpart, the CV213 110-213-000-012 is designed for operation in high-temperature environments, allowing it to be installed near heat sources such as steam turbines and high-temperature pumps.
- Specialized Cable Assembly: The CV213 110-213-000-012's housing is constructed of anodized aluminum and must be used with the ED120 cable assembly, while the CV214 uses the ED121 cable assembly.
Specifications
| Category | Details |
|---|---|
| Model Number | CV213 110-213-000-012 |
| Operating principle | Moving coil and magnet |
| Power supply | No external power supply required |
| Signal transmission | 2-wire system insulated from casing, voltage-based output |
| Sensitivity - Directionality | Calibrated along the long axis of the transducer |
| Sensitivity - Nominal sensitivity at 22°C (71.6°F) ±5°C | 20 mV/mm/s (508 mV/in/s) ±5% with signal of 100 Hz |
| Materials - Body | Anodised Anticorodal® 100 |
| Materials - Mounting foot | Ryton® (high-performance thermoplastic) |
| Materials - Mounting screw | Stainless steel 1.4301 (AISI 304) |
| Weight | 0.4 kg approx. |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
