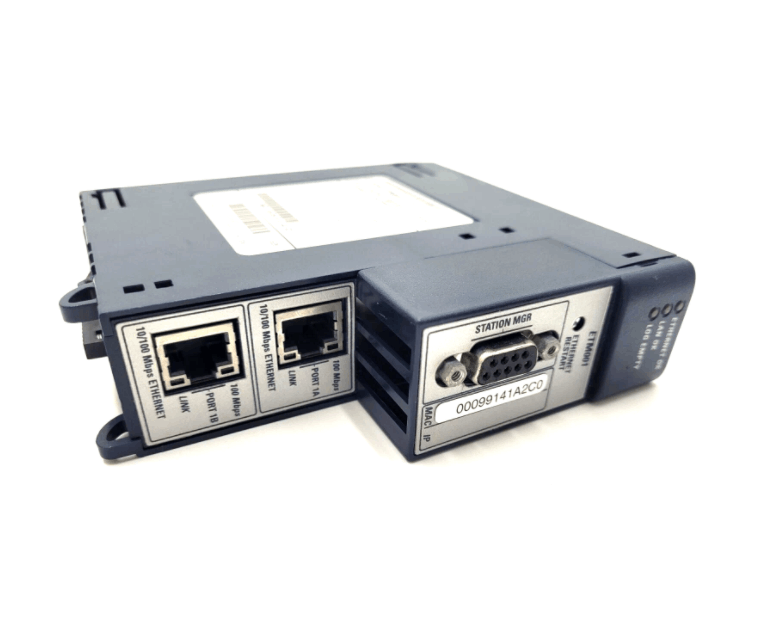

General Electric IC695ETM001 Ethernet Interface Module
Item Number:IC695ETM001
Brand: GE
Lead Time: In stock
Description:Ethernet Interface Module
Payment: T/T
Product Description
GE IC695ETM001 Ethernet Interface Module is used to connect a PACSystems RX3i controller to an Ethernet network, enabling the RX3i controller to communicate with other PACSystems devices, Series 90, and VersaMax controllers.
The module implements TCP/IP communications with other PLCs, host computers running the Host Communications Kit or programming software, and computers running the TCP/IP version of the programming software, using the GE Fanuc SRTP and Ethernet Global Data (EGD) protocols over a four-layer TCP/IP (Internet Protocol) stack.
Function & Features
- Device Type and Service Support:The IC695ETM001 has Class 1 and Class 2 device functionality. It provides full PLC programming and configuration services, supporting firmware upgrades through the PLC CPU using the WinLoader software tool (WinLoader is included with Ethernet interface software updates).

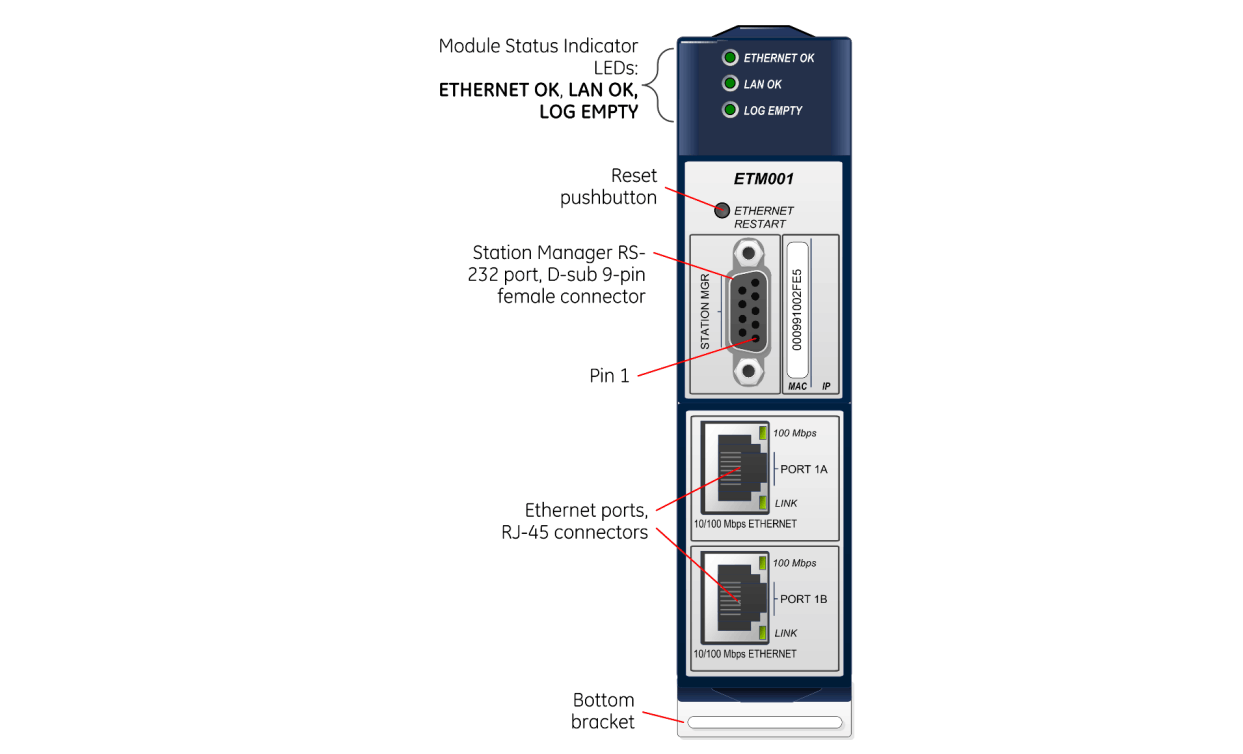

- Network Connectivity and Interfaces:The IC695ETM001 is equipped with two 10Base-T/100Base-TX RJ-45 shielded twisted pair Ethernet ports with auto-sensing capabilities, a built-in network switch, and supports auto-negotiation, sensing,speed, and crossover detection.
- Operation and Maintenance:The IC695ETM001 has a recessed Ethernet reset button to manually reset the Ethernet firmware without powering down the system. It has a built-in Station Manager and supports online monitoring access through a dedicated Station Manager port.
Specifications
|
Parameter |
Details |
|
Model |
IC695ETM001 |
|
Ethernet Processor Speed |
200 MHz |
|
Connectors |
- Station Manager (RS-232) Port: 9-pin female D-connector - Ethernet Ports: Two 10BaseT/100BaseTX (8-pin shielded RJ-45) |
|
LAN Standards |
- IEEE 802.2 Logical Link Control Class I - IEEE 802.3 CSMA/CD (10/100 Mbps) |
|
IP Address Support |
1 (per module) |
|
Ethernet Ports |
2 (auto-sensing 10/100BaseTX, RJ-45) |
|
Embedded Ethernet Switch |
Yes (supports daisy-chaining of nodes) |
|
Serial Port |
Station Manager Port: RS-232 DCE, 1200–115200 bps |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Ethernet Interface Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
