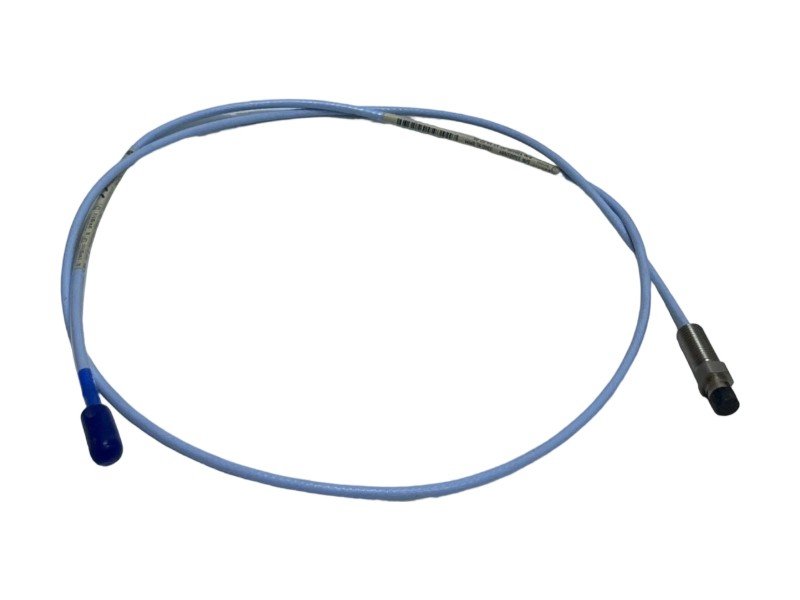

Bently Nevada 330105-02-12-10-02-05 Reverse Mount Probe
Item Number: 330105-02-12-10-02-05
Brand:Bently Nevada
Lead Time: in stock
Description: Reverse Mount Probe
Payment: T/T
Product Description
Bently Nevada 330105-02-12-10-02-05 is a reverse-mount probe. Based on the eddy current principle, it provides non-contact measurement of radial shaft vibration and displacement (shaft position) on rotating machinery (such as steam and gas turbines, compressors, and pumps).
Note: A tool is required to mount the probe onto the bracket using its UNF threads. The ClickLoc™ connector must be fully inserted into the extension cable or Proximitor Sensor until it locks into place with an audible click.
Function & Features
- Thread Specifications: The 330105-02-12-10-02-05 probe features two 3/8-24 UNF fine-pitch threads and is reverse mounted, with the cable exiting from the rear of the probe.
- Connector Type: The 330105-02-12-10-02-05 probe features the 02 option - a micro ClickLoc™ coaxial connector.
- Probe Housing Material: The 330105-02-12-10-02-05 probe is constructed of AISI 303 or 304 stainless steel. This provides corrosion resistance and withstands moisture, heat, and chemical attack.
Specifications
| Parameter |
Details |
|
Model |
Bently Nevada 330105-02-12-10-02-05 Bently Nevada 330105-02-12-10-02-CN |
|
Product Type |
Reverse Mount Eddy Current Probe |
|
Probe Type |
|
|
Linear Range |
80 mils (2.0 mm) |
|
Total Length |
1.0 m (3.3 feet) |
|
Thread Specification |
3/8-24 UNF (2 places) |
|
Weight |
0.3 kg |
