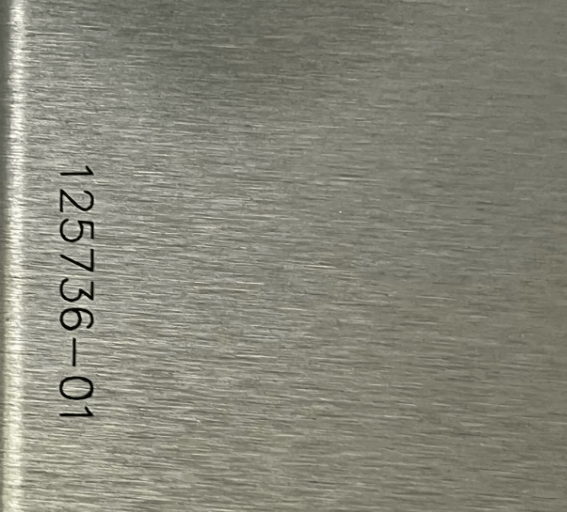

Bently Nevada 3500/92-01-01-00 125736-01 Communication Gateway I/O Module
Item Number:3500/92-01-01-00 125736-01
Brand:Bently Nevada
Lead Time: In stock
Description:Communication Gateway I/O Module
Payment: T/T
Product Description
Bently Nevada 3500/92-01-01-00 125736-01 is a communications gateway module for the 3500 Series Monitoring Systems, supporting Ethernet TCP/IP and serial communications (RS232/RS422/RS485). It supports Modbus and Modbus/TCP protocols for serial and Ethernet communications, as well as the proprietary Bently Nevada protocol.
The module collects time-stamped measurements and system data from other modules in the rack at high speeds, with data acquisition rates of less than 1 second. It includes an RJ45 Ethernet connection, LED indicators for status monitoring, and a software password for secure configuration protection. The module replaces the master value Modbus registers with a configurable Modbus register utility.
Function & Features
- The 3500/92-01-01-00 125736-01 supports the Modicon Modbus protocol (serial communication), the Modbus/TCP protocol (a serial Modbus variant for TCP/IP Ethernet communication), and the proprietary Bently Nevada protocol (for communication with the 3500 rack configuration and data acquisition software package).
- The 3500/92-01-01-00 125736-01 replaces the primary value Modbus registers with a configurable Modbus register utility.
- The 3500/92-01-01-00 125736-01 utilizes the internal network to collect information from other modules in the rack, such as time-stamped current measurements, module status, and current alarm status, at a data acquisition rate of less than 1 second.
- The Ethernet connection of 3500/92-01-01-00 125736-01 is an RJ45 interface, which can be used for 10BASE-T star configuration Ethernet network. The system configuration is protected by a software password to prevent unauthorized changes or tampering.
Specifications
| Category | Details |
|---|---|
| Part Number | 3500/92-01-01-00 |
| Model Number | 125736-01 |
| Input |
- Power Consumption:
- Modbus RS232/RS422 I/O Module: 5.0 W - Modbus RS485 I/O Module: 5.6 W |
| Output |
- OK LED: Indicates normal operation of the 3500/92 module.
- TX/RX LED: Indicates communication status between the 3500/92 and other modules in the 3500 chassis. |
| Protocol |
- BNC Host Protocol: Communicates with 3500 configuration software and 3500 data acquisition and display software via Ethernet TCP/IP.
- Modbus: Based on AEG Modicon PI-MBUS-300 reference manual, using Remote Terminal Unit (RTU) transmission mode. |
| Dimensions | 241 mm x 24.4 mm x 99.1 mm (9.50 inches x 0.96 inches x 3.90 inches) |
| Weight | 0.44 kg (0.96 lb) |
Loading comments...
Bently Nevada 3500/92-01-01-00 125736-01 Communication Gateway I/O Module
Item Number:3500/92-01-01-00 125736-01
Brand:Bently Nevada
Lead Time: In stock
Description:Communication Gateway I/O Module
Payment: T/T
Product Description
Bently Nevada 3500/92-01-01-00 125736-01 is a communications gateway module for the 3500 Series Monitoring Systems, supporting Ethernet TCP/IP and serial communications (RS232/RS422/RS485). It supports Modbus and Modbus/TCP protocols for serial and Ethernet communications, as well as the proprietary Bently Nevada protocol.
The module collects time-stamped measurements and system data from other modules in the rack at high speeds, with data acquisition rates of less than 1 second. It includes an RJ45 Ethernet connection, LED indicators for status monitoring, and a software password for secure configuration protection. The module replaces the master value Modbus registers with a configurable Modbus register utility.
Function & Features
- The 3500/92-01-01-00 125736-01 supports the Modicon Modbus protocol (serial communication), the Modbus/TCP protocol (a serial Modbus variant for TCP/IP Ethernet communication), and the proprietary Bently Nevada protocol (for communication with the 3500 rack configuration and data acquisition software package).
- The 3500/92-01-01-00 125736-01 replaces the primary value Modbus registers with a configurable Modbus register utility.
- The 3500/92-01-01-00 125736-01 utilizes the internal network to collect information from other modules in the rack, such as time-stamped current measurements, module status, and current alarm status, at a data acquisition rate of less than 1 second.
- The Ethernet connection of 3500/92-01-01-00 125736-01 is an RJ45 interface, which can be used for 10BASE-T star configuration Ethernet network. The system configuration is protected by a software password to prevent unauthorized changes or tampering.
Specifications
| Category | Details |
|---|---|
| Part Number | 3500/92-01-01-00 |
| Model Number | 125736-01 |
| Input |
- Power Consumption:
- Modbus RS232/RS422 I/O Module: 5.0 W - Modbus RS485 I/O Module: 5.6 W |
| Output |
- OK LED: Indicates normal operation of the 3500/92 module.
- TX/RX LED: Indicates communication status between the 3500/92 and other modules in the 3500 chassis. |
| Protocol |
- BNC Host Protocol: Communicates with 3500 configuration software and 3500 data acquisition and display software via Ethernet TCP/IP.
- Modbus: Based on AEG Modicon PI-MBUS-300 reference manual, using Remote Terminal Unit (RTU) transmission mode. |
| Dimensions | 241 mm x 24.4 mm x 99.1 mm (9.50 inches x 0.96 inches x 3.90 inches) |
| Weight | 0.44 kg (0.96 lb) |
