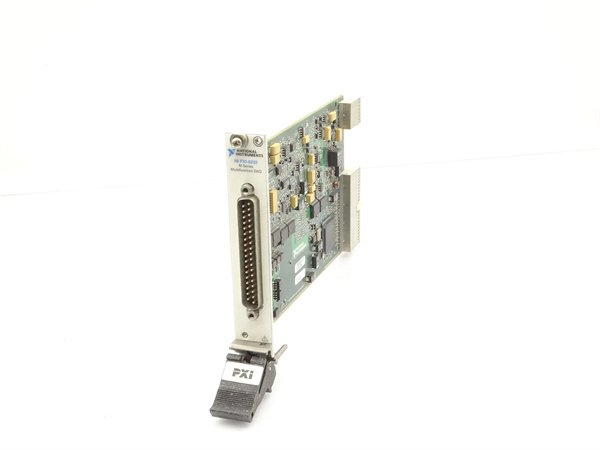

NI PXI-6232 Mid-Range Multifunctional PXI Data Acquisition Card

The NI PXI-6232 is a mid-range multifunctional PXI DAQ card developed by National Instruments (NI), engineered to deliver essential data acquisition capabilities at a lower cost than high-performance models like the NI PXI-6255. Unlike the NI PXI-6255 (with 32 AI channels and scatter-gather DMA), the NI PXI-6232 streamlines features to 16 AI channels and basic DMA—making it ideal for applications where mid-speed sampling (up to 250 kS/s) and moderate channel counts meet user needs, such as academic research, small-scale industrial monitoring, and benchtop electronics testing.

In PXI-based workflows, the NI PXI-6232 acts as a “practical data hub” for connecting sensors and actuators without unnecessary complexity. For example, in a university mechatronics lab, it uses 8 differential analog inputs to measure robotic arm joint voltages (16-bit resolution, 200 kS/s) and 2 analog outputs to control servo motors—all while synchronizing with a NI PCI-MXI-2 (linking the PXI chassis to a PCI-based PC). Its > 85 dB SNR and anti-aliasing filters ensure reliable measurements for low-level signals (e.g., 500 µV strain gauge outputs), while its 7 W power consumption fits within compact PXI chassis with limited power budgets—an advantage over the 10 W NI PXI-6255.

Detailed parameter table

Core advantages and technical highlights

Cost-Effective Balance of Performance and Features: The NI PXI-6232 delivers 16-bit resolution and 250 kS/s sampling at 40% lower cost than the NI PXI-6255, making it accessible for budget-constrained users. It retains critical features (anti-aliasing filters, overcurrent protection) while omitting niche ones (PXI star trigger, scatter-gather DMA)—avoiding paying for unused functionality. For instance, a small electronics manufacturer uses the NI PXI-6232 to test PCB voltage regulators: its 16 AI channels measure 8 regulators (2 channels each) at 100 kS/s, and 2 AO channels simulate input voltages—achieving accurate results without the NI PXI-6255’s higher speed or channel count.

Lower Power Consumption for Compact Systems: With 7 W typical power consumption (30% less than the NI PXI-6255), the NI PXI-6232 is ideal for small PXI chassis (e.g., 4-slot models) with limited backplane power. In a portable environmental monitoring system, it operates alongside a NI PXI-5412 (AWG) in a battery-powered PXI chassis—extending runtime by 25% compared to using the NI PXI-6255. This efficiency also reduces heat generation, making it suitable for enclosed test enclosures (e.g., climate-controlled chambers) where overheating could disrupt measurements.

Simplified Integration with Legacy and Modular Systems: Like the NI PXI-6255, the NI PXI-6232 works with the NI PCI-MXI-2 (for PCI-PXI integration) and NI-DAQmx driver—ensuring compatibility with legacy PCI systems and existing LabVIEW code. Users upgrading from entry-level DAQ cards (e.g., NI PCIM-DAS160216) can reuse 90% of their software, reducing reconfiguration time. For example, a food processing plant with a PCI-based control system adds the NI PXI-6232 (via NI PCI-MXI-2) to monitor 8 temperature sensors—using existing LabVIEW dashboards to visualize data without rewriting code.

Reliable Precision for Low-Level Signals: The NI PXI-6232’s > 85 dB SNR and 25 kHz anti-aliasing filters ensure accurate capture of low-level signals (e.g., 500 µV thermocouple outputs). Unlike generic DAQ cards, its 10 GΩ input impedance minimizes loading effects on sensors—critical for measuring weak signals. In a biology lab, the NI PXI-6232 records 1 mV electrophysiology signals from cell cultures: its low noise and high impedance prevent signal distortion, enabling researchers to analyze cellular activity with confidence.

Typical application scenarios

In academic research, the NI PXI-6232 supports undergraduate engineering projects in control systems. A student team uses the NI PXI-6232 in a 4-slot PXI chassis (connected to a PC via NI PCI-MXI-2) to build a temperature control system: 4 AI channels measure heat sink temperature (via thermistors, ±2.5 V range) at 50 kS/s, 2 AO channels adjust heater power (0–10 V), and 4 digital I/O lines trigger cooling fans. The NI PXI-6232’s 16-bit resolution ensures temperature is controlled within ±0.1 °C, and its low cost lets the lab deploy 8 systems for parallel student work—something the NI PXI-6255’s higher price would not allow.

In small-scale industrial monitoring, the NI PXI-6232 tracks water quality in a municipal treatment plant. The plant uses 8 differential AI channels of the NI PXI-6232 to measure pH (±1 V), dissolved oxygen (±5 V), and turbidity (±10 V) at 100 kS/s—sending data to a central control system via DMA. Its 2 AO channels adjust chemical dosing pumps (0–10 V), while 2 counters track pump runtime for maintenance scheduling. The NI PXI-6232’s reliability (50 g shock resistance) withstands plant vibrations, and its ±3.5 mV accuracy ensures compliance with EPA water quality standards—all at a cost that fits the plant’s maintenance budget.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing NI PXI-6232, power off the PXI chassis (e.g., NI PXI-1042) and wear an ESD wristband (±15 kV) to protect the module’s precision circuits. Align the NI PXI-6232 with the chassis guide rails, insert firmly until the backplane connector is fully seated, then secure with the front-panel screw. Connect sensors/actuators to the 68-pin VHDCI connector via NI TB-4353 terminal block—use twisted-pair shielded cables for analog inputs to minimize noise. If integrating with a PCI PC, install NI PCI-MXI-2 in the PC and connect it to the PXI chassis via an MXI-2 cable. Install the latest NI-DAQmx driver and LabVIEW, then use NI Measurement & Automation Explorer (MAX) to detect the NI PXI-6232—run a “Basic Function Test” to verify AI/AO/digital I/O functionality.

Maintenance suggestions: Calibrate NI PXI-6232 annually using a NIST-traceable voltage reference (e.g., NI 9172) to maintain ±3.5 mV AI accuracy. Inspect the VHDCI connector quarterly: clean contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth to remove dust or oxidation—dirty contacts can cause signal drift. If the NI PXI-6232 experiences data dropouts, check the PXI backplane power (ensure stable 5 V/12 V) or update the NI-DAQmx driver. Avoid exposing the module to temperatures above 55 °C or humidity above 90%—extreme conditions can damage its ADC and anti-aliasing filters. Replace the module’s internal configuration EEPROM (via NI spare parts) every 7 years to retain calibration settings.
