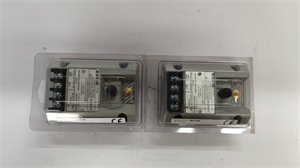

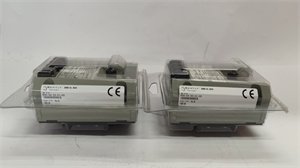

Bently Nevada 990-04-50-01-00 2-Wire Vibration Transmitter
Manufacturer:Bently Nevada
Product Number:
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 990-04-50-01-00 is a compact, 2-wire vibration transmitter designed for continuous monitoring of rotating machinery. It converts displacement signals from non-contacting proximity probes into a standardized 4–20 mA output, enabling integration with PLC systems, DCS, or SCADA networks. With a full-scale range of 0–4 mils peak-to-peak (0–100 μm pp), this transmitter delivers precise measurements for detecting rotor vibration, misalignment, or bearing wear in critical industrial equipment.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 990-04-50-01-00 |
| Input | 1 non-contacting 3300 NSV proximity probe |
| Power Supply | +12 to +35 VDC (loop-powered) |
| Output | 4–20 mA (proportional to vibration amplitude) |
| Measurement Range | 0–4 mils pp (0–100 μm pp) |
| Accuracy | ±1% of full scale |
| Frequency Response | 0–10 kHz |
| Maximum Loop Resistance | 1,000 Ω (at 35 VDC) |
| Mounting | DIN rail (35 mm) or panel-mounted |
| Weight | 2 kg |
| Operating Temperature | -40°C to +85°C |
Advantages and Features
- Simplified Installation: DIN rail mounting and loop-powered design reduce wiring complexity.
- Wide Temperature Range: Operates in extreme conditions (-40°C to +85°C), suitable for harsh environments.
- High Reliability: Rugged construction and EMI/RFI protection ensure stable performance.
- Cost-Effective: Direct 4–20 mA output eliminates the need for additional signal conditioning.
Case Study: A steel mill reduced unplanned downtime by 30% by using the 990-04-50-01-00 to monitor blower vibrations, enabling predictive maintenance.
Application Fields and Case Studies
Industries:
- Manufacturing, power generation, oil and gas, and wastewater treatment.
typical application:
- Motors, pumps, compressors, and fans.
Case Study: A chemical plant improved agitator reliability by 25% using the transmitter to detect excessive shaft movement during operation.
Competitive Comparison
The Bently Nevada 990-04-50-01-00 stands out due to:
- Dual-Wire Simplicity: Eliminates separate power cables, reducing installation costs compared to 3-wire alternatives.
- Wide Power Range: Accepts 12–35 VDC inputs, compatible with diverse industrial power systems.
- Extended Temperature Tolerance: Operates in colder/hotter environments than standard transmitters (typically -20°C to +70°C).
Selection Recommendation
- Measurement Range: Choose this model for applications requiring 0–4 mils pp vibration monitoring.
- Installation Space: Opt for DIN rail mounting if panel space is limited.
- Compatibility: Ensure compatibility with Bently 3300 Series probes and existing 4–20 mA systems.
Precautions
- Probe Calibration: Calibrate the proximity probe with the transmitter to ensure accurate measurements.
- Cable Length: Use shielded cables up to 5.0 meters (16.4 feet) to minimize signal interference.
- Loop Resistance: Verify loop resistance does not exceed 1,000 Ω to avoid voltage drop issues.
