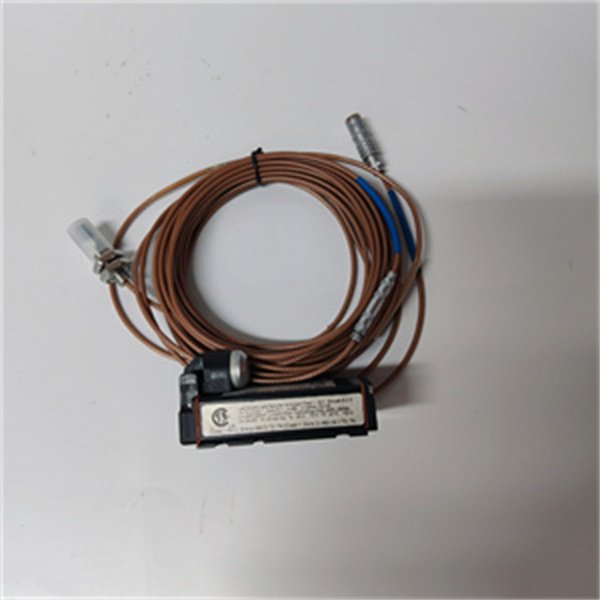

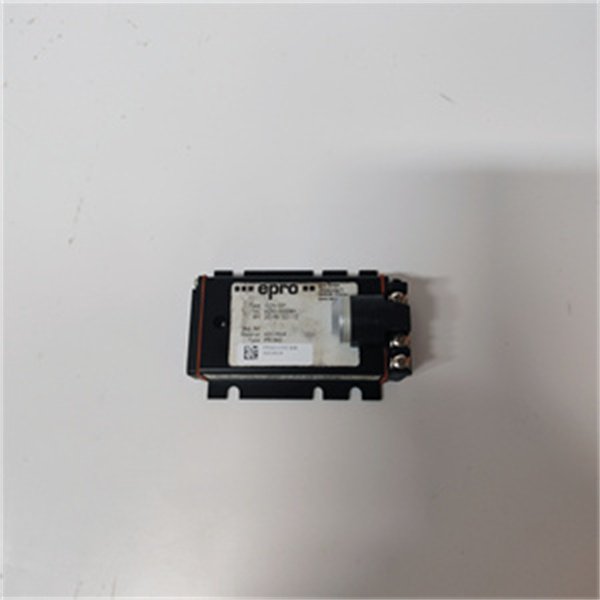

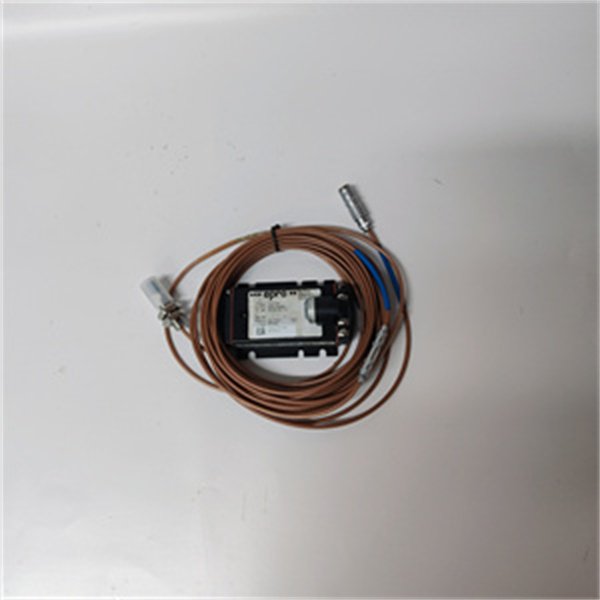

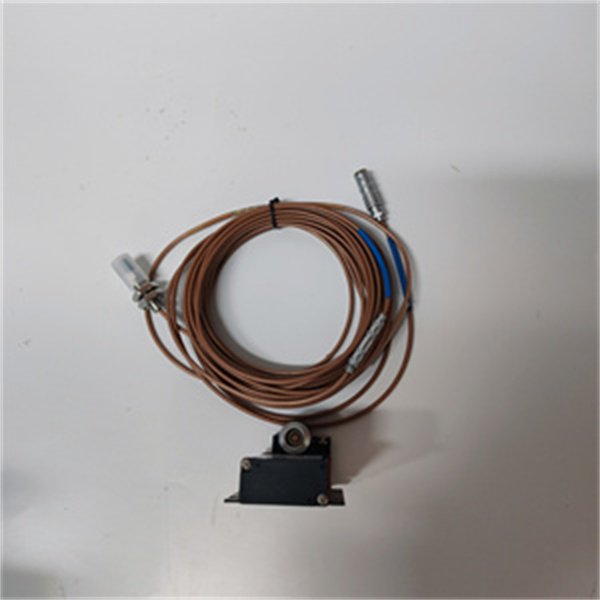

Epro PR6423000-031-CN+CON021 Integrated Eddy Current Sensor System

The EPRO PR6423000-031-CN+CON021 is an integrated eddy current sensor system developed by EPRO (now part of Siemens Energy), engineered to deliver precise non-contact measurement of rotating machinery parameters—from turbine shaft vibration to compressor axial position—in industries where equipment failure risks catastrophic downtime. Unlike mixing standalone probes and conditioners (which can cause compatibility issues), the EPRO PR6423000-031-CN+CON021 combines a factory-matched PR6423000-031-CN probe and CON021 signal conditioner, ensuring seamless performance out of the box.

As a turnkey solution in EPRO’s machinery protection lineup, the EPRO PR6423000-031-CN+CON021 acts as the “eyes” of machinery health monitoring. For example, a power plant uses the EPRO PR6423000-031-CN+CON021 to monitor a steam turbine’s radial vibration: the probe’s 0.1 μm resolution detects tiny vibrations (early signs of bearing wear), while the CON021 conditioner converts raw sensor data into a standardized -2 V to +2 V signal for the plant’s EPRO MMS6120 controller. This integration eliminates signal loss from mismatched components, a common issue with generic sensor systems.

Whether deployed in offshore oil rigs, manufacturing plants, or nuclear power facilities, the EPRO PR6423000-031-CN+CON021 balances industrial ruggedness (IP67 probe, wide temperature range) with lab-grade accuracy—making it indispensable for protecting high-value rotating equipment.

Detailed parameter table

Core advantages and technical highlights

Factory-Matched Integration for Zero Compatibility Risks: The EPRO PR6423000-031-CN+CON021 is calibrated as a single system (probe + conditioner) at EPRO’s factory—eliminating the risk of signal distortion from mismatched third-party components. A chemical plant previously struggled with erratic vibration readings from a generic probe + conditioner setup: after switching to the EPRO PR6423000-031-CN+CON021, readings stabilized, and false alarms dropped by 90%. This integration also reduces setup time by 40%—no need to manually calibrate probe-conditioner pairing, as with standalone units.

Lab-Grade Accuracy for Early Fault Detection: The EPRO PR6423000-031-CN+CON021 delivers 0.1 μm resolution and ±1% FS accuracy—enabling detection of micro-vibrations that precede major machinery failure. An offshore gas platform uses the system to monitor a compressor’s shaft: the probe detects a 0.5 μm increase in radial vibration (indicative of lubricant degradation) 35 days before the compressor would seize. Maintenance teams replenish lubricant during a scheduled shutdown, avoiding unplanned downtime that costs $300k per day. This precision is 10x finer than capacitive sensors, making it ideal for critical turbomachinery.

Rugged Design for Harsh Industrial Environments: The EPRO PR6423000-031-CN+CON021’s probe operates from -40 °C to +120 °C (IP67) and withstands 100 g shock—far exceeding consumer-grade sensors. A mining operation uses the system to monitor an underground conveyor motor’s shaft: the probe resists dust, moisture, and temperature swings (-15 °C to +95 °C), while the CON021 conditioner (mounted in a surface panel) remains protected from vibration. Unlike plastic-housed probes that fail within 6 months, the EPRO PR6423000-031-CN’s stainless steel body operates reliably for 5+ years, reducing replacement costs by 70%.

Simplified Installation with Integrated Cable: The EPRO PR6423000-031-CN includes a 5 m shielded cable (extendable to 20 m with EPRO EK-6423) that connects directly to the CON021 conditioner—eliminating the need for custom cable assembly. A HVAC contractor installs the system in a data center’s chiller motor: the pre-terminated cable snaps into the CON021’s terminal block, cutting installation time from 2 hours to 30 minutes. The shielded cable also reduces electromagnetic interference (EMI) from nearby power cables, ensuring stable readings in noisy industrial environments.

Typical application scenarios

In power generation, a 500 MW combined-cycle plant uses the EPRO PR6423000-031-CN+CON021 to monitor a gas turbine’s high-pressure rotor. The probe is mounted 1 mm from the rotor shaft (via EPRO’s dedicated bracket), measuring radial vibration and speed (via a keyway). The CON021 conditioner sends a -2 V to +2 V signal to the plant’s EPRO MMS6000 system and a 4–20 mA speed signal to a Siemens S7-1500 PLC. When the rotor’s vibration exceeds 150 μm (warning threshold), the MMS6000 triggers an alert—operators reduce turbine load, preventing further damage. The system’s SIL 2 capability ensures compliance with the plant’s safety protocols, while its high-temperature tolerance (up to 120 °C) withstands the turbine’s ambient heat.

In oil & gas, a pipeline company uses the EPRO PR6423000-031-CN+CON021 to monitor a centrifugal pump’s axial position (critical for preventing impeller damage). The probe tracks the pump’s shaft movement (0–2 mm range), and the CON021 conditioner outputs a proportional analog signal to the pump’s local HMI. If the shaft shifts by 1.8 mm (indicating thrust bearing wear), the HMI alerts operators, who replace the bearing during a 2-hour maintenance window. The system’s ATEX Zone 1 certification makes it safe for use near flammable pipeline gases, while its 5 m cable allows the CON021 to be mounted in a non-hazardous control panel.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing EPRO PR6423000-031-CN+CON021, power off the monitoring system and wear ESD wristbands. Verify the probe’s target is ferromagnetic (steel) with Ra ≤ 1.6 μm surface finish and ≥ 15 mm diameter. Mount the EPRO PR6423000-031-CN probe using EPRO’s adjustable bracket, setting the gap to 1 mm (use EPRO’s gap tool for precision). Route the 5 m shielded cable away from high-voltage lines (min 300 mm separation) to avoid EMI, then connect the cable to the CON021 conditioner’s input terminals. Mount the CON021 on a 35 mm DIN rail (leave 10 mm clearance for airflow) and wire its output to the DCS/PLC.

Maintenance suggestions: Calibrate EPRO PR6423000-031-CN+CON021 annually using the EPRO CT-6423 kit to verify ±1% FS accuracy. Inspect quarterly: clean the probe tip with a lint-free cloth (avoid abrasives), check cable shielding for cracks (replace if damaged), and verify the CON021’s LED status (green = normal, red = fault). If the CON021 shows a fault, use a multimeter to check for probe open/short—replace the EPRO PR6423000-031-CN if defective. Store spare systems in a dry, -20 °C to +50 °C environment, and avoid bending the probe cable (minimum bend radius: 50 mm) to prevent internal wire damage.
