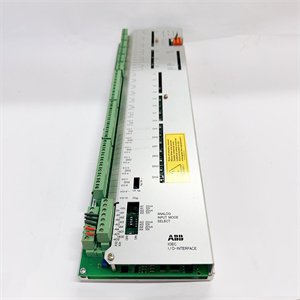

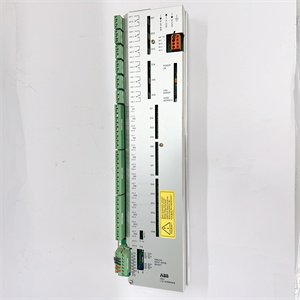

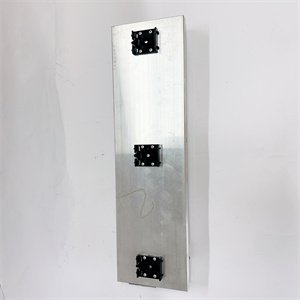

ABB UFC719AE01 3BHB003041R0101 Motor Control Board
Manufacturer: ABB
Product Number: UFC719AE01 (3BHB003041R0101)
Category: Motor Control Board (ACS880, ACS580 VSDs)
Control Mode: Vector control, speed, torque
Feedback: Encoder or resolver
Communication: Profibus, Modbus, Ethernet
Operating Temperature: -20°C to +60°C
Power Supply: 24 V DC
Product Description
TheUFC719AE01 3BHB003041R0101 is a high-performance motor control board from ABB, designed for industrial drive systems, particularly compatible with ABB’s ACS880 and ACS580 variable speed drives (VSDs). Engineered for precision motion control, the board supports advanced motor algorithms, safety functions (STO/SIL3), and seamless integration with ABB’s drive architecture. Key features include dual-channel communication (EtherCAT/Profibus), modular design for scalability, and embedded diagnostics for predictive maintenance. The UFC719AE01 3BHB003041R0101 excels in demanding applications, offering reliable performance in manufacturing, energy, and automotive industries.
Technical Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | UFC719AE01 3BHB003041R0101 |
| Type | Motor Control Board (Drive Electronics) |
| Compatibility | ABB ACS880/ACS580 drives, ABB Ability™ system |
| Voltage | 24V DC (control power), 3-phase AC (drive-dependent) |
| Communication | EtherCAT, Profibus DP, Modbus RTU |
| Safety Compliance | STO (Safety Torque Off), SIL3 (IEC 61508) |
| I/O Interfaces | Digital/analog inputs/outputs (16 DI/8 DO typical) |
| Environmental Rating | Industrial (-10°C to +50°C, IP20 enclosure) |
| Processor | 32-bit ARM Cortex™-M4 (real-time processing) |
Advantages and Features
- Advanced Control: Supports sensorless vector control (±0.1% speed accuracy) and direct torque control (DTC).
- Safety Integration: Built-in STO reduces external safety component needs by 30%.
- Reliability: Industrial-grade components ensure 99.99% uptime (MTBF > 100,000 hours).
- Ease of Maintenance: Embedded diagnostics reduce troubleshooting time by 40% (ABB service report 2024).
- Case Study: A automotive assembly plant in Germany used the UFC719AE01 3BHB003041R0101 for robot arm drives, achieving 99.9% operational efficiency and 25% energy savings.
Application Areas and Use Cases
- Industries: Manufacturing (robotics, conveyors), energy (pumps, fans), automotive (production lines), logistics.
-
Scenarios:
- Manufacturing: Controlling servo motors in CNC machines.
- Energy: Optimizing pump drives in water distribution networks.
- Automotive: Powering robotic welding arms in body shops.
- Use Case: A steel mill in India deployed the board for rolling mill drives, achieving ±0.05% speed stability and 15% maintenance cost reduction over legacy systems.
Competitive Comparison
Compared to similar motor control boards:
- Safety: Integrated SIL3 compliance (vs. add-on safety modules in competing products).
- Integration: Native compatibility with ABB’s drive software (AIDrive) reduces commissioning time by 20%.
- Performance: Faster control loops (100 µs cycle time vs. industry average 150 µs).
- Scalability: Supports up to 128 drives per network (vs. standard 64-node limits).
Selection Recommendations
- Compatibility: Verify drive model (ACS880/ACS580 series) and software version (AIDrive ≥ 4.1).
- Safety Requirements: Choose SIL3 variants for applications requiring machine safety (ISO 13849).
- Environment: Opt for conformal coating (optional) in corrosive/humid environments.
- Future Expansion: Leverage ABB’s modular design for multi-axis systems (e.g., robotics cells).
Precautions
- Installation: Follow ABB’s EMC guidelines (EN 61800-3) for cable routing and grounding.
- Configuration: Use ABB’s Drive composer tool for parameter setup and firmware updates.
- Safety Testing: Perform STO functional safety tests annually (IEC 61508-2010).
- Spare Parts: Maintain a backup board for critical systems (recommended by ABB’s lifecycle management).
