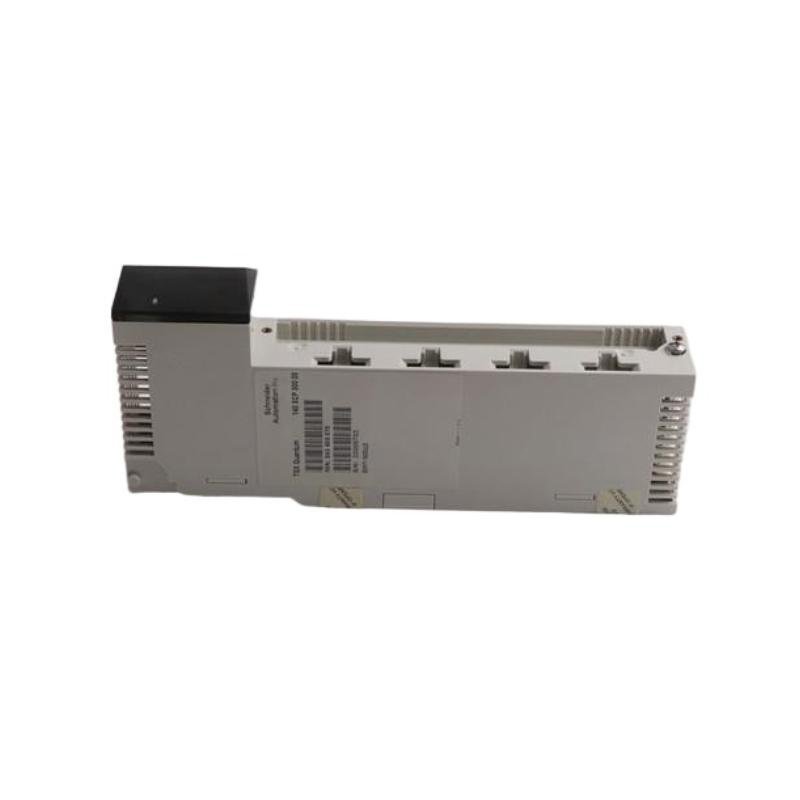

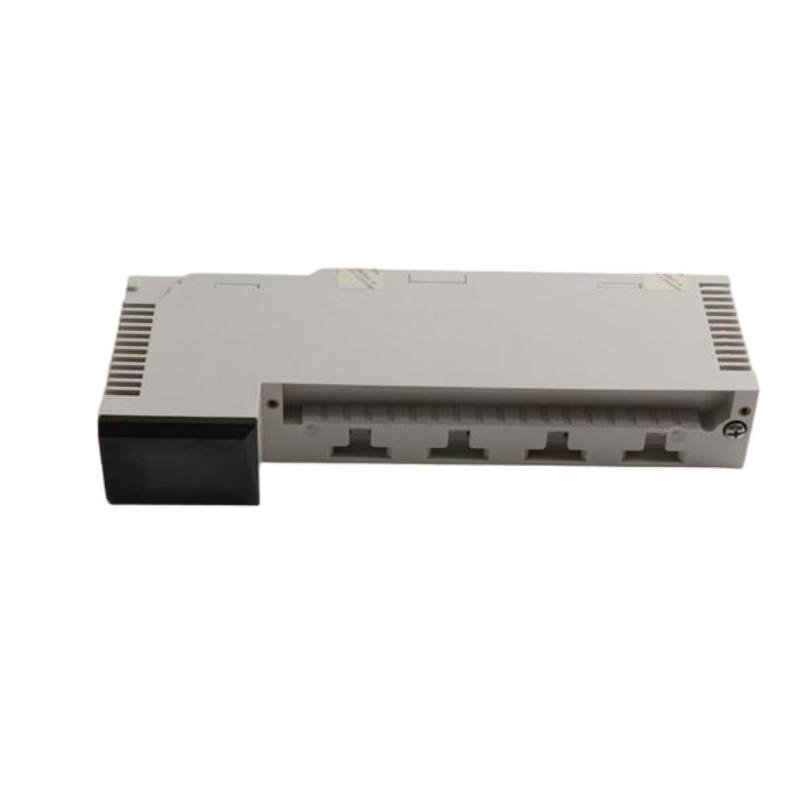

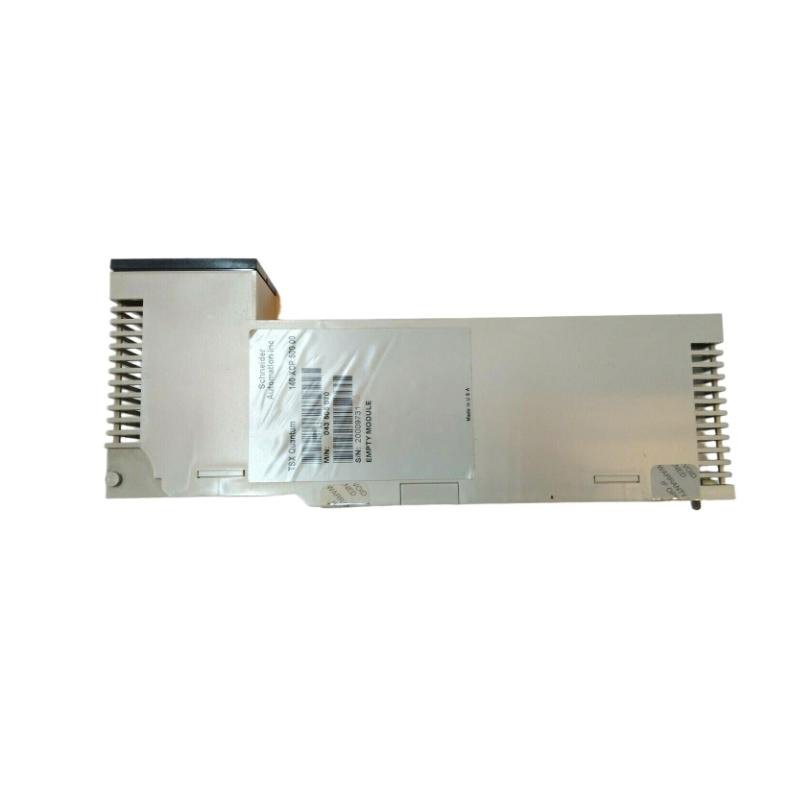

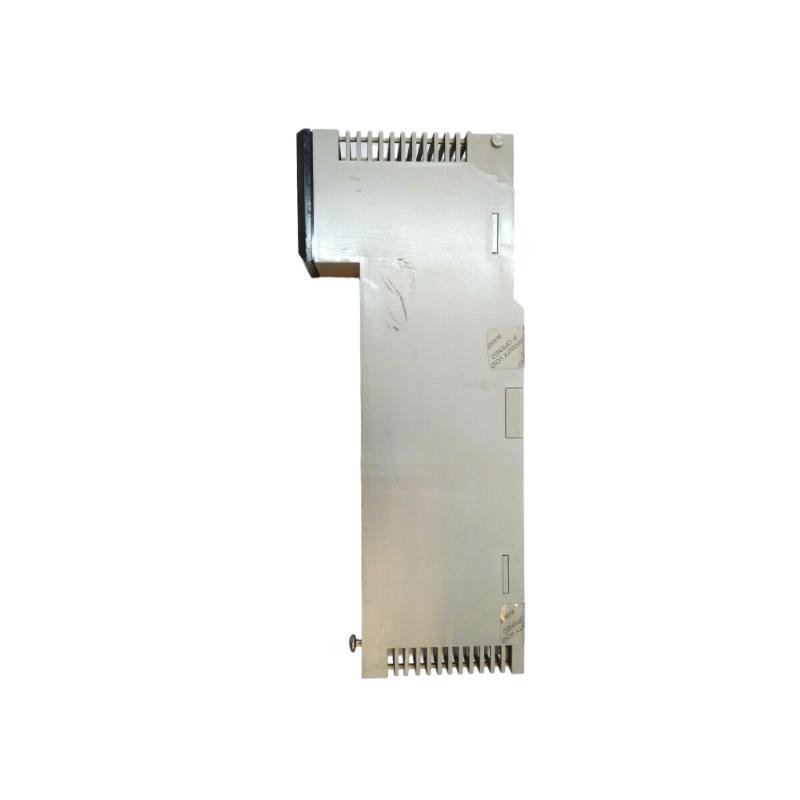

Schneider 140XCP50000 Discrete I/O Modules
Manufacturer: Schneider Electric
Product Number: 140XCP50000
Category: Discrete I/O Module (Modicon Quantum)
System Compatibility: Modicon Quantum control systems
Function: Expands digital input and output capabilities for monitoring and controlling discrete devices
Product Description
The Schneider 140XCP50000 Discrete I/O Module is designed to expand the digital input and output capabilities of Schneider Electric’s Modicon Quantum control systems. This module provides a reliable interface for monitoring and controlling discrete field devices, such as switches, relays, and indicators, in industrial automation environments. Engineered for durability and seamless integration, the 140XCP50000 is ideal for applications that demand precise, high-density digital I/O in harsh industrial conditions.
Key Features
-
High-Density Digital I/O–Supports multiple discrete input and output channels to interface with a variety of field devices
-
Flexible Configuration–Enables customization of I/O channel assignments to meet system-specific requirements
-
Reliable Operation–Designed for continuous performance in demanding industrial environments with electrical noise and vibration
-
Seamless System Integration–Fully compatible with Schneider Modicon Quantum automation platforms for easy system expansion
-
Industrial-Grade Construction–Built with robust materials to ensure longevity and performance under extreme conditions
-
Simplified Maintenance–Includes diagnostic indicators for quick status checks and fault identification
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size: 50 x 170 x 320 mm |
| Weight | Package weight 0.312kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| I/O Type | Discrete (digital inputs and outputs) |
| Number of Channels | Module-dependent configuration |
| Input Voltage Range | 24 VDC typical (other ranges optional) |
| Output Voltage Range | 24 VDC typical (other ranges optional) |
| Output Current Capacity | Up to 2 A per output channel (model-dependent) |
| Isolation Rating | 1500 V RMS between channels and system |
| Power Supply | 24 VDC (nominal) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Meets IEC and industrial standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Schneider Modicon Quantum Automation Platform |
| Mounting | Rack-mounted in Quantum system chassis |
Industry Applications
-
Factory Automation–Provides reliable I/O for machinery, conveyors, and automated equipment
-
Process Control–Interfaces with discrete devices for monitoring and control in industries such as refining, petrochemical, and food processing
-
Power Generation–Supports control functions for auxiliary systems and safety interlocks
-
Water and Wastewater Treatment–Enables digital control of pumps, valves, and alarm systems
-
Oil & Gas–Suitable for field control in onshore and offshore applications where ruggedness is required
The Schneider 140XCP50000 Discrete I/O Module is a dependable and scalable solution for expanding the digital control capabilities of Modicon Quantum systems. Its high-performance design, flexible configuration options, and robust construction make it ideal for a wide range of industrial automation applications.
