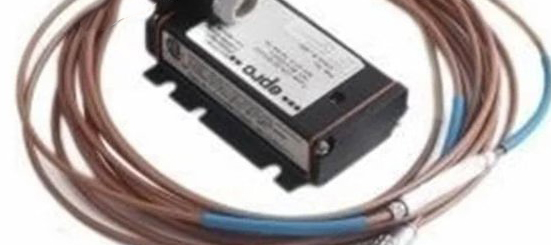

Epro CON021+PR6424/000-100 Eddy Current Monitoring System

The EPRO CON021 + PR6424/000-100 system accurately monitors critical rotating machines. It supports turbines, compressors, pumps, and fans. This solution ensures precise shaft displacement, position, eccentricity, and speed measurements.

CON021 Signal Converter Specifications

This converter processes eddy current sensor signals for precise condition monitoring.

• Frequency Range: 0 to 20,000 Hz (-3 dB)
• Rise Time: Responds in less than 15 microseconds
• Operating Temperature: Functions from -30°C to 100°C
• Shock and Vibration: Withstands 5g at 60 Hz at 25°C
• Protection Class: Rated IP20
• Supply Voltage:
  • -23V to -32V (Output: -4V to -20V)
  • -21V to -32V (Output: -2V to -18V)
• Housing Material: Uses LMgSi 0.5 F22 alloy
• Weight: Weighs approximately 120 grams
• Mounting: Mounts with four M5x20 screws
• Connections:
  • Transducer: Features a self-locking Lemo plug
  • Supply/Output: Uses screw terminals (max 1.5 mm² wire)

PR6424 Eddy Current Sensor Specifications

The PR6424 sensor detects dynamic shaft movements with high resolution.

• Measurement Range: Measures 0.25 mm to 10 mm
• Resolution: Delivers high-precision readings
• Output Signal: Provides a stable analog signal
• Operating Temperature: Operates from -25°C to +125°C
• Power Supply: Uses standard industrial voltage levels
• Protection Rating: Achieves IP67 for dust and water resistance
• Material: Uses corrosion-resistant metal housing
