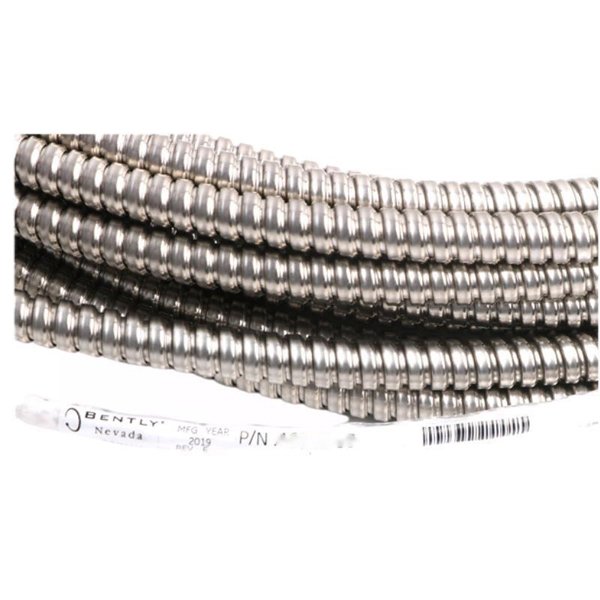

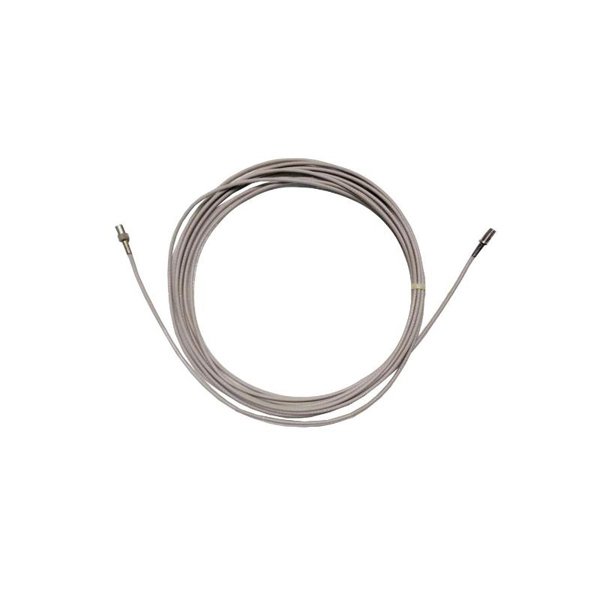

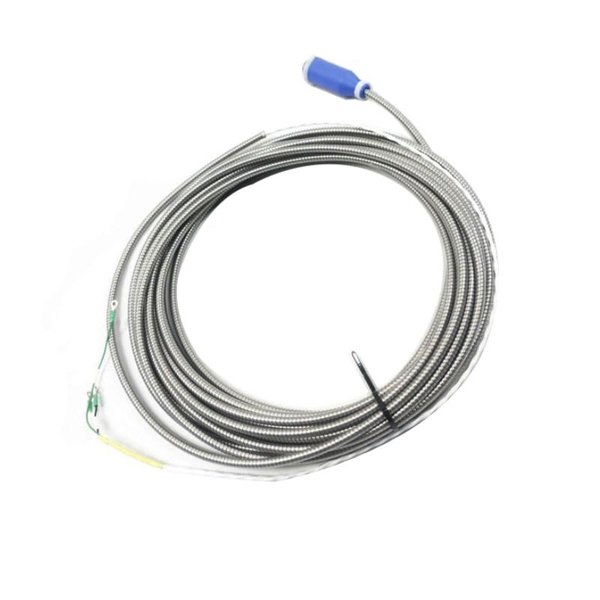

Bently Nevada 330104-00-14-10-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-14-10-02-CN
Product Type:Digital Output Module
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-14-10-02-CN 3300 XL 8 mm Proximity Probe is a robust eddy-current proximity transducer designed for measuring vibration and position in fluid-film bearing machines. It delivers high linearity, accuracy, and stability, fully compliant with API 670 standards. The probe features rugged construction with armored cable, advanced RFI immunity, and easy-to-use ClickLoc connectors, making it ideal for critical machinery monitoring.
Product Applications
-
Vibration monitoring of turbines, compressors, and pumps
-
Shaft position and axial displacement measurements
-
Keyphasor reference and rotational speed detection
-
Overspeed protection systems
-
Condition monitoring in hazardous environments
Product Advantages
-
Compliant with API 670 for superior reliability
-
Fully interchangeable components, no bench calibration needed
-
Armored cable and patented TipLoc for enhanced durability
-
Wide operating temperature and pressure ranges
-
Compact M10x1 thread for confined installation spaces
-
Reduced installation complexity with SpringLoc connections
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Proximity Probe with Armor |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | Stainless Steel 303/304 |
| Cable Type | Armored, FEP insulated, 75Ω triaxial |
| Operating Temperature | -52°C to +177°C (standard) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Output Scale Factor | 200 mV/mil ±5% (standard 5m system) |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Min. | 76.2 mm diameter |
Frequently Asked Questions
Q1: What is the main use of the 330104-00-14-10-02-CN probe?
A1: It is used for measuring shaft vibration, position, and speed in rotating machinery.
Q2: Is it compatible with older Bently Nevada systems?
A2: Yes, it is fully backward compatible with non-XL 3300 8 mm systems.
Q3: Does it meet API 670 requirements?
A3: Yes, the system meets API 670 mechanical and electrical specifications.
Q4: Can this probe be installed in high-temperature environments?
A4: Yes, the standard probe can operate up to +177°C, with ETR versions rated even higher.
Q5: What is the linear measurement range?
A5: The probe provides accurate measurements from 0.25 mm to 2.3 mm gap.
Q6: How is the cable protected?
A6: The probe comes with an armored cable and optional FluidLoc sealing for liquid ingress protection.
Q7: What connector type does it use?
A7: It features gold-plated ClickLoc connectors requiring only finger-tight torque.
Q8: Is the probe easy to install?
A8: Yes, the SpringLoc terminal strips and ClickLoc connectors simplify installation.
Q9: Can it be used in hazardous areas?
A9: Yes, it is certified for use in hazardous locations with proper barriers or isolators.
Q10: What maintenance does it require?
A10: It requires minimal maintenance; regular visual inspection and gap verification are recommended.
