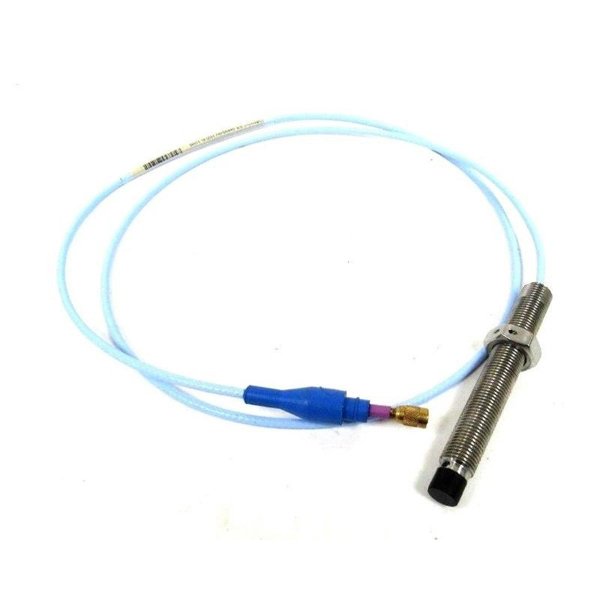

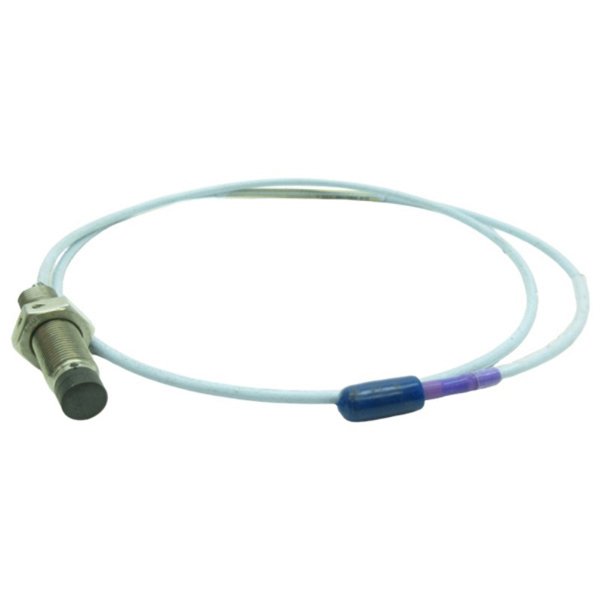

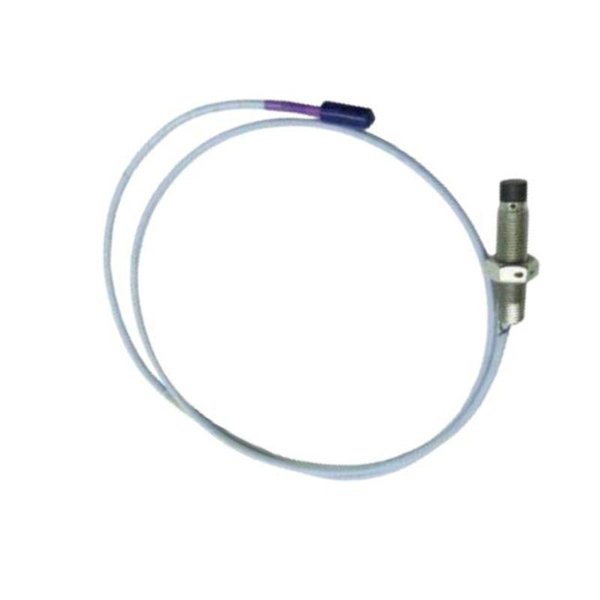

The Bently Nevada 330701-00-20-10-11-00 3300 XL 11 mm Proximity Probe is a high-precision vibration and displacement sensor designed for continuous monitoring of rotating machinery. As part of the renowned 3300 XL series, this proximity probe is engineered to deliver reliable and accurate measurements for the monitoring of shaft vibration and displacement in a wide range of industrial applications.

The 3300 XL proximity probe is used to measure the position or displacement of machine parts, such as shafts, bearings, and other rotating elements. The sensor uses a non-contacting technique to measure these displacements with extreme accuracy, making it ideal for sensitive machinery in industries such as power generation, oil and gas, manufacturing, and petrochemical.

With its rugged design, high accuracy, and long-lasting performance, the 3300 XL 11 mm Proximity Probe ensures optimal operation of critical machinery by detecting subtle changes in displacement or vibration that could indicate potential issues.

Product Specifications

Product Applications

The Bently Nevada 330701-00-20-10-11-00 3300 XL 11 mm Proximity Probe is used in a variety of industrial applications to monitor the displacement of rotating machinery and provide early warning of potential mechanical issues. Some of its primary applications include:

1. Rotating Machinery Monitoring

   The probe is typically used to monitor shaft vibration, displacement, and clearance in motors, pumps, compressors, turbines, and other rotating equipment.

2. Power Generation

   In power plants, this probe is essential for monitoring critical equipment such as turbines and generators, helping to prevent downtime by identifying faults early.

3. Oil & Gas

   Used in oil and gas applications to monitor the health of machinery in offshore platforms, refineries, and drilling operations, where reliability is paramount.

4. Manufacturing & Industrial Plants

   In manufacturing environments, the probe ensures that machinery such as conveyors, presses, and mills are operating within safe tolerances.

5. HVAC Systems

   The sensor is used to monitor rotating parts in HVAC systems, ensuring optimal performance and energy efficiency.

6. Aerospace & Defense

   In aerospace and defense, precise monitoring of rotating equipment is essential for maintaining safety and performance.

Product Advantages

• High Accuracy: The 3300 XL proximity probe provides highly accurate and real-time measurements of displacement, ensuring that any changes in the machine’s condition are immediately detected.

• Wide Measurement Range: With a range from 0 to 11 mm, this probe can be used to measure small and large displacements, making it versatile for a range of applications.

• Rugged Construction: Built with durable materials like stainless steel and Inconel, the sensor is resistant to harsh industrial environments and can withstand high temperatures.

• Non-Contact Measurement: The sensor uses a non-contacting method to measure displacement, reducing wear and tear and ensuring a longer operational lifespan.

• Wide Operating Temperature Range: The probe is designed to work effectively in environments with temperatures ranging from -40°C to +85°C, making it suitable for use in extreme conditions.

• Environmental Protection: With an IP67 rating, the 3300 XL probe is protected against dust and water ingress, ensuring reliable performance even in challenging environments.

FAQs

1. What is the measurement range of the Bently Nevada 330701-00-20-10-11-00 proximity probe?

   The probe has a measurement range of 0 to 11 mm.

2. What is the output signal of the 3300 XL proximity probe?

   The probe provides a 4-20 mA (linear) output signal.

3. What is the operating temperature range of this proximity probe?

   The operating temperature range is from -40°C to +85°C.

4. How is the Bently Nevada 330701-00-20-10-11-00 mounted?

   The probe is mounted using a threaded M10x1 connection.

5. What is the weight of the Bently Nevada 330701-00-20-10-11-00 proximity probe?

   The probe weighs 0.07 kg.

6. What materials are used in the construction of the probe?

   The sensor is made of stainless steel and Inconel for durability and resistance to harsh environments.

7. What type of machinery is the 3300 XL proximity probe used for?

   It is used to monitor rotating machinery such as motors, turbines, pumps, compressors, and other critical equipment.

8. What environmental protection rating does the probe have?

   The probe has an IP67 rating, meaning it is protected from dust and water ingress.

9. What is the power supply required for the probe?

   The probe operates with a 24 V DC power supply.

10. What industries can benefit from using the Bently Nevada 330701-00-20-10-11-00 proximity probe?

    The probe is ideal for industries such as power generation, oil and gas, manufacturing, HVAC, and aerospace, where monitoring rotating machinery is critical.
