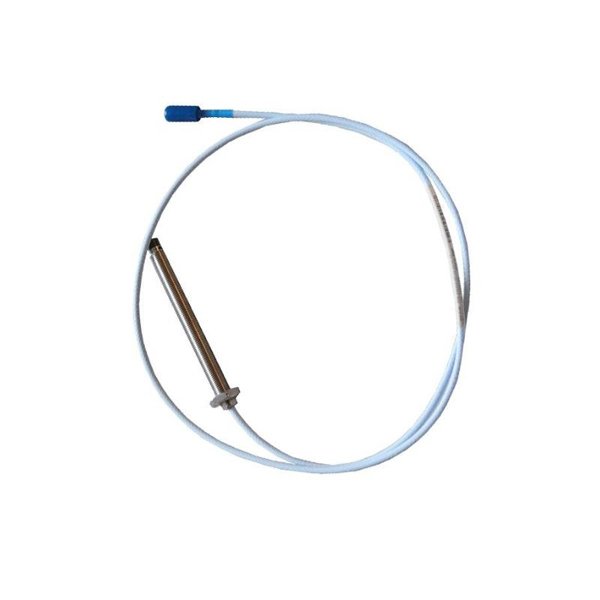

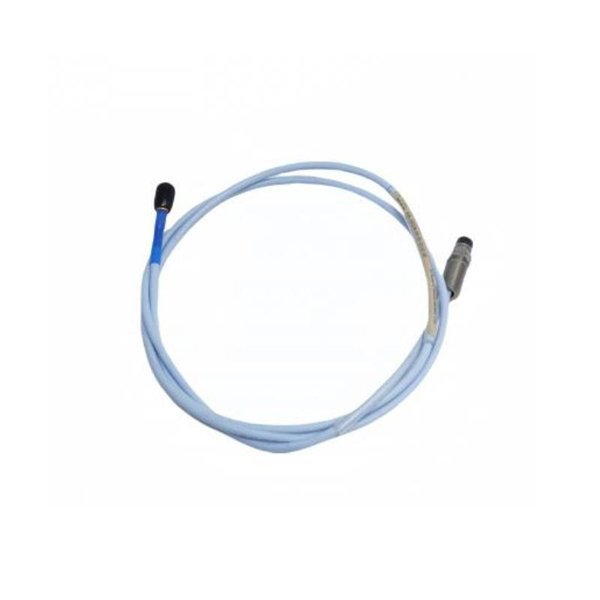

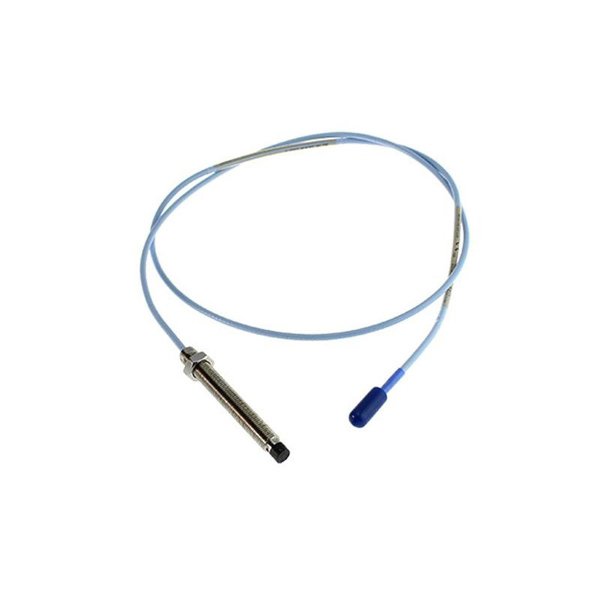

Bently Nevada 330103-00-08-10-12-RU 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-08-10-12-RU 3300 XL 8 mm Proximity Probe is an advanced vibration and displacement sensing device designed for critical rotating machinery applications. This probe is part of the trusted 3300 XL series, a family of probes widely recognized for their high reliability and accuracy in industrial monitoring systems.

Technical Specifications

Product Applications

• Turbomachinery Monitoring: Used in steam turbines, gas turbines, and hydro turbines for shaft vibration and position measurement.

• Compressors and Pumps: Ensures safe operation by continuously detecting displacement and vibration anomalies.

• Generators and Motors: Protects electrical machines from rotor-to-stator contact or imbalance conditions.

• Petrochemical and Refining: Ensures high uptime in refineries and chemical plants by providing reliable monitoring.

• Aerospace and Defense Equipment: Adapted for precision monitoring in specialized high-speed rotating equipment.

• Industrial Manufacturing: Applied in critical drive systems, gearboxes, and fans for predictive maintenance.

Product Advantages

• High Accuracy: Provides precise shaft displacement and vibration measurements for reliable monitoring.

• Rugged Design: Stainless steel probe body and durable cable insulation withstand harsh industrial environments.

• Electromagnetic Immunity: Designed to operate in areas with strong EMI/RFI without compromising accuracy.

• Industry Standard Compliance: Fully compliant with API 670, ensuring global compatibility with monitoring systems.

• Wide Temperature Range: Capable of withstanding extreme temperatures, making it versatile for diverse applications.

• Ease of Integration: Seamlessly integrates with Bently Nevada Proximitor Sensors and monitoring systems.

• Long Service Life: Built with high-quality materials to reduce replacement frequency and maintenance costs.

FAQ

Q1: What type of displacement measurement does the 330103-00-08-10-12-RU probe provide?

A1: It provides non-contact eddy current displacement measurement for monitoring shaft vibration and position.

Q2: Can this probe be directly connected to a monitoring system?

A2: No, it must be connected via a 3300 XL Proximitor Sensor, which conditions the signal for monitoring systems.

Q3: What is the linear measurement range of this probe?

A3: The effective linear range is typically around 2 mm depending on calibration and setup.

Q4: Does this probe require field calibration?

A4: Factory calibration is provided, but system calibration may be necessary during installation to ensure accuracy.

Q5: What frequency response does the probe support?

A5: The probe supports a DC to 10 kHz frequency response, suitable for most rotating machinery monitoring.

Q6: How does it handle electromagnetic interference?

A6: The probe design incorporates shielding and insulation, ensuring performance in environments with high EMI/RFI.

Q7: Is the probe interchangeable with older Bently Nevada probes?

A7: Yes, it is backward compatible with older Bently Nevada systems provided proper Proximitor Sensors are used.

Q8: What is the maximum cable length supported?

A8: Standard lengths are available up to 9 meters, but probe + extension + Proximitor system combinations can reach longer lengths.

Q9: What standards does this probe comply with?

A9: It complies with API 670, CE, and CSA requirements for vibration and displacement monitoring systems.

Q10: Can this probe be used in hazardous environments?

A10: Yes, when paired with appropriately certified Proximitor Sensors, the system can be installed in hazardous locations.
