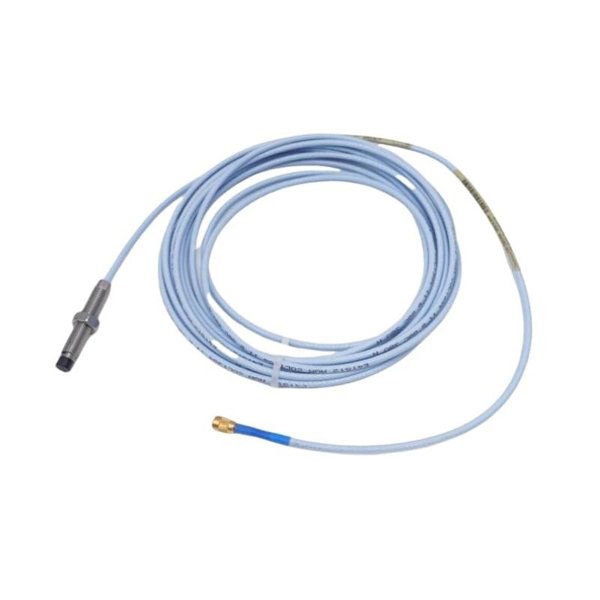

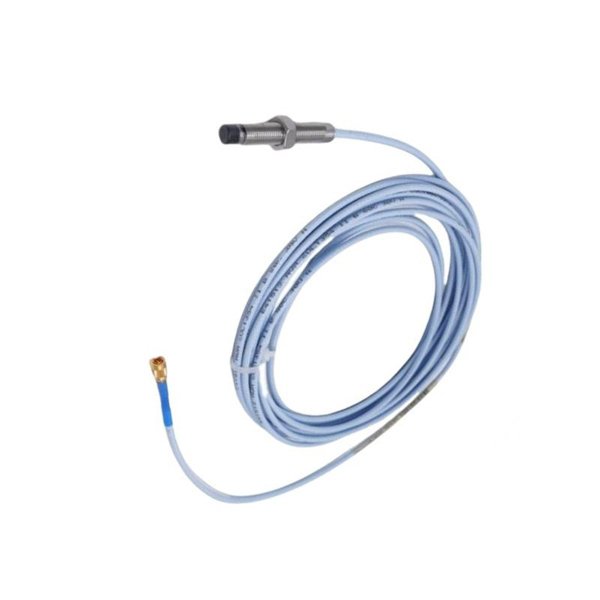

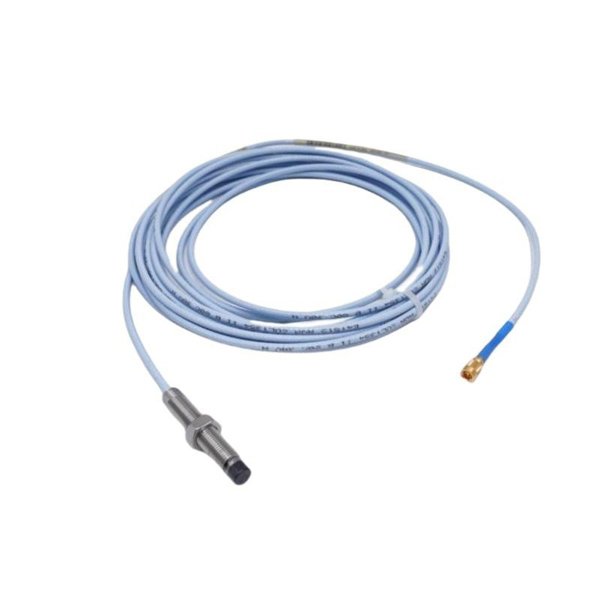

The Bently Nevada 330101-00-15-20-02-05 3300 XL 8 mm Proximity Probe is a precision 8 mm proximity probe designed for continuous monitoring of rotating machinery within the 3300 XL system. Featuring a 15-foot probe length combined with a 20-foot cable, it enables flexible installation in demanding industrial environments. The probe measures shaft vibration and displacement accurately, contributing to early fault detection and improved machinery reliability. Built with durable stainless steel housing and a PEEK sensing tip, it provides robustness and high performance under harsh conditions.

Key Features

• 8 mm probe diameter for precise measurements

• 15 ft probe length with 20 ft integral cable for installation flexibility

• Standard 3/8-24 UNF threaded mounting

• Miniature coaxial connector for seamless integration

• High immunity to electromagnetic interference

• IP67 rating for dust and moisture resistance

• Operating temperature range: -35°C to +177°C

• Compliant with API 670 and industrial standards

Technical Specifications

Product Advantages

• Robust design suited for harsh industrial conditions

• High precision displacement and vibration measurement

• Excellent EMI resistance for stable signal output

• Easy installation and compatibility with 3300 XL systems

• Long-term calibration stability reduces maintenance needs

• Suitable for a wide range of rotating machinery monitoring

Applications

• Power plant turbines (steam, gas)

• Compressors and pumps in oil & gas industries

• Heavy industrial motors and generators

• Mining and mineral processing equipment

• Chemical plant machinery monitoring

• Turbomachinery vibration surveillance

Frequently Asked Questions (FAQ)

1. Is this probe compatible with all 3300 XL systems?

   Yes, it is specifically designed for 3300 XL systems.

2. Can the cable length be extended?

   Yes, using compatible extension cables within system limits.

3. What is the maximum temperature it can withstand?

   Up to +177°C.

4. How is the probe mounted?

   Using a standard 3/8-24 UNF threaded mount.

5. Is the probe suitable for wet environments?

   Yes, it is rated IP67 for dust and water resistance.

6. Does it need frequent recalibration?

   No, it maintains stable calibration for extended periods.

7. Can it be used in hazardous locations?

   Specific certified versions are available.

8. What maintenance is needed?

   Periodic inspection and connector cleaning are recommended.

9. Is it compatible with other manufacturers’ systems?

   It is optimized for the Bently Nevada 3300 XL system.

10. How should it be stored?

    In a dry, controlled environment away from mechanical stress.
