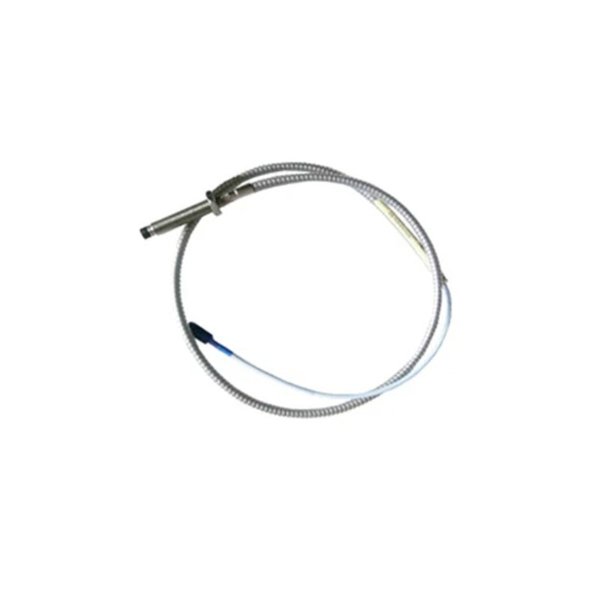

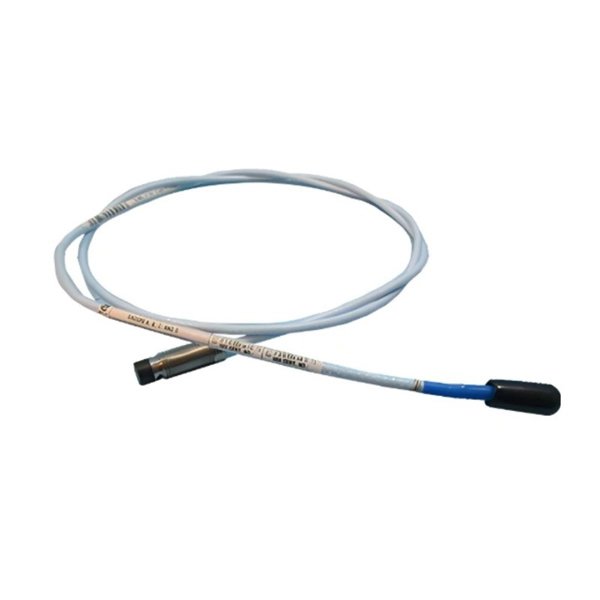

Bently Nevada 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-00-50-10-01-00 3300 XL 8 mm Proximity Probe is a highly reliable vibration and position measurement sensor designed for industrial rotating machinery. It is part of the well-established 3300 XL series, which is widely recognized for delivering accurate and stable proximity measurements in demanding environments.

This probe works as a critical component within Bently Nevada’s monitoring systems, providing continuous non-contact measurements of shaft vibration, axial position, and speed-related parameters. Its rugged construction and proven sensing technology make it an industry standard in turbomachinery monitoring, predictive maintenance, and protection systems.

Product Parameters

The technical specifications of the 330102-00-50-10-01-00 are designed to ensure consistent performance in high-demand applications.

Product Applications

The Bently Nevada 330102-00-50-10-01-00 Proximity Probe is widely used in critical machinery monitoring systems. Its applications include:

• Shaft Vibration Monitoring: Continuous tracking of radial vibration in turbines, compressors, pumps, and motors.

• Axial Position Measurement: Monitoring thrust movement and axial displacement.

• Rotational Speed Sensing: Used with phase markers for speed and phase reference.

• Turbomachinery Protection: Integrated into machine protection systems to prevent catastrophic failures.

• Condition Monitoring: Enables predictive maintenance strategies by providing early fault detection.

• Integration in DCS and PLC Systems: Used in conjunction with control systems for automated shutdown and alarms.

Product Advantages

The 3300 XL 8 mm Proximity Probe offers multiple benefits that ensure reliability and industry-leading performance:

• High Measurement Accuracy: Provides precise vibration and displacement data, essential for machinery protection.

• Extended Temperature Capability: Withstands harsh industrial environments, including extreme heat.

• API 670 Compliance: Meets international standards for machinery protection systems.

• Durable and Rugged Design: Built for continuous operation in high-vibration, high-temperature conditions.

• Excellent Signal Stability: Minimizes drift and ensures repeatable measurements over long operational periods.

• Wide Compatibility: Seamlessly integrates with Bently Nevada proximitor sensors and monitoring systems.

• Proven Reliability: Trusted in industries such as oil & gas, petrochemicals, power generation, and heavy manufacturing.

FAQ

Q1: What is the typical sensitivity of the 330102-00-50-10-01-00 probe?

A1: It has a sensitivity of 200 mV/mil (7.87 mV/µm), ensuring precise displacement measurement.

Q2: Can this probe be used for both radial and axial position monitoring?

A2: Yes, it can measure both radial shaft vibration and axial thrust position depending on the mounting arrangement.

Q3: What is the linear range of this probe?

A3: The linear measurement range is 2 mm (80 mils), suitable for most turbomachinery applications.

Q4: Is the probe compatible with older Bently Nevada proximitor sensors?

A4: It is specifically designed for 3300 XL Proximitor sensors, but backward compatibility depends on the driver type used.

Q5: What frequency range can the probe handle?

A5: It supports measurements from DC to 10 kHz, making it effective for both static and dynamic measurements.

Q6: Does the probe comply with API 670 standards?

A6: Yes, it fully complies with API 670 requirements for machinery protection.

Q7: How does temperature affect probe performance?

A7: The probe maintains accuracy within its rated temperature range of -35 °C to +177 °C.

Q8: Can this probe be installed in hazardous areas?

A8: Yes, it has CSA, ATEX, and CE certifications, allowing installation in hazardous industrial environments.

Q9: What is the insulation resistance of the probe?

A9: The insulation resistance is greater than 10 MΩ, ensuring excellent electrical isolation.

Q10: How is the probe typically connected to the monitoring system?

A10: It connects through coaxial cables to a 3300 XL Proximitor Sensor, which then interfaces with the monitoring system.
