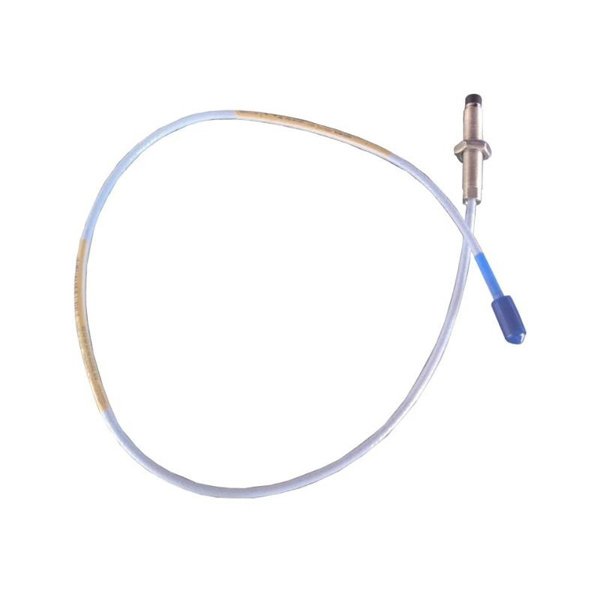

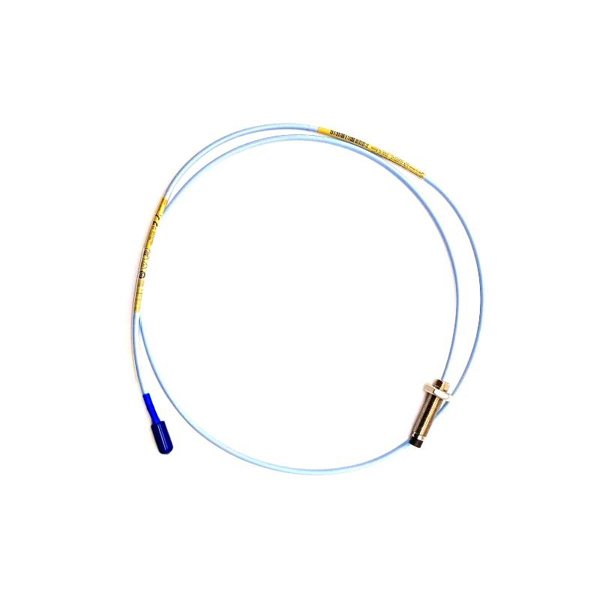

Bently Nevada 330103-00-19-10-12-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-19-10-12-05 is part of the 3300 XL 8 mm Proximity Transducer System, engineered for precise vibration and position measurements on rotating machinery. This probe, with a total length of 1.0 meter and M10x1 threaded body, delivers robust performance in harsh industrial environments. It is ideal for radial vibration, axial thrust position, speed, and Keyphasor reference applications.

Features

• Fully API 670-compliant system performance

• Interchangeable probe, extension cable, and Proximitor sensor

• Enhanced RFI/EMI immunity

• Gold-plated ClickLoc connectors for secure, tool-free connection

• Rugged TipLoc and CableLoc design for high durability

Applications

• Steam, gas, and hydro turbine monitoring

• Compressors, motors, and pumps

• Gearboxes and centrifugal equipment

• Overspeed detection and Keyphasor timing reference

• Environments requiring compliance with SIL 2/3, ATEX, IECEx

Advantages

• No bench calibration required for component interchangeability

• Works in high-density DIN rail or panel mount environments

• Extended temperature range options up to 260°C

• FluidLoc cable option prevents oil ingress

• Backward compatibility with legacy 3300-series systems

Technical Specifications

FAQ

Q1: What type of connector is used in this probe?

A1: It uses a gold-plated miniature coaxial ClickLoc connector with a built-in locking mechanism.

Q2: Is this probe compatible with older 3300 systems?

A2: Yes, it is backward compatible with non-XL 3300-series 8 mm and 5 mm components.

Q3: Can this probe be used in high-temperature environments?

A3: Yes, with the ETR version, it supports up to 218°C at the probe tip and 260°C at the cable.

Q4: What is the recommended shaft diameter for accurate readings?

A4: A minimum of 50.8 mm, with 76.2 mm or greater preferred for reduced cross-talk.

Q5: Does the probe require calibration?

A5: No, probes, cables, and sensors are pre-calibrated and fully interchangeable.

Q6: What materials are used in the probe construction?

A6: Probe case: stainless steel; Tip: PPS plastic; Connector: gold-plated brass or beryllium copper.

Q7: Can this be used for Keyphasor or speed measurement?

A7: Yes, it supports Keyphasor reference and speed measurement when installed per guidelines.

Q8: Is FluidLoc cable included by default?

A8: No, FluidLoc cable is optional and ordered with the appropriate code.

Q9: What approvals does the product meet?

A9: It complies with ATEX, IECEx, RoHS, FCC, EMC, and is certified for SIL 2 and 3 applications.

Q10: What is the cable bend radius requirement?

A10: The minimum cable bend radius is 25.4 mm (1 inch).
