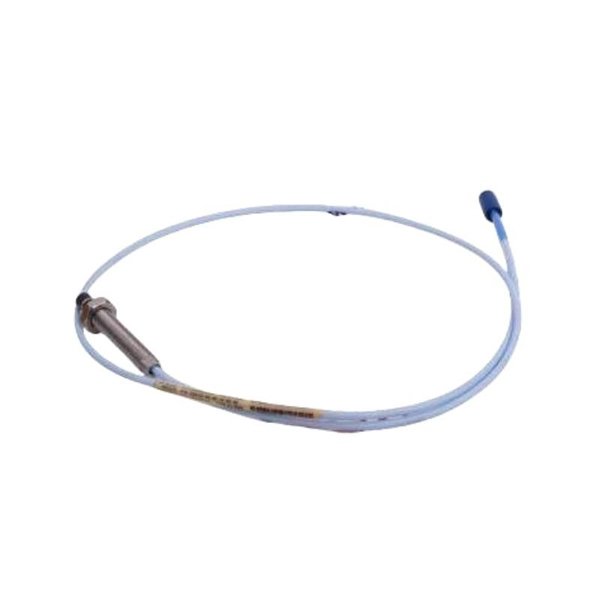

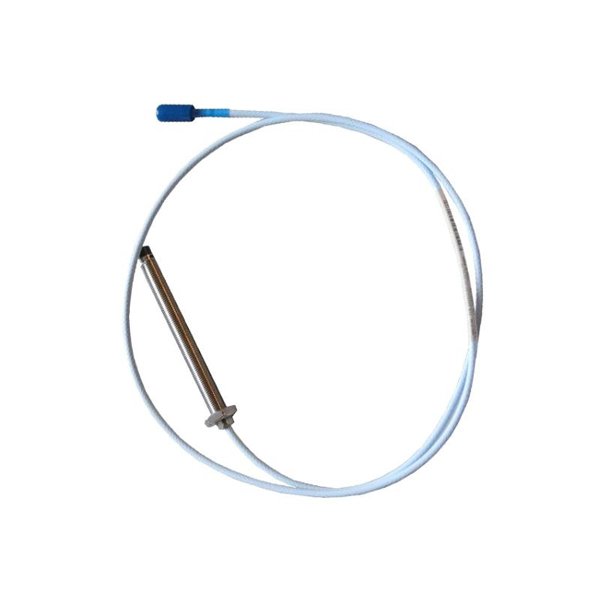

Bently Nevada 330101-00-09-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-09-10-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered sensor designed to measure shaft vibration and position in critical rotating machinery. Part of the renowned 3300 XL series, this proximity probe uses eddy-current technology to provide highly accurate, real-time measurements essential for condition monitoring and predictive maintenance. With an 8 mm sensing tip length, the probe effectively monitors small shaft movements, helping operators detect early signs of wear, imbalance, or misalignment before they escalate into costly failures.

Manufactured by Bently Nevada, a global leader in machinery protection, the 330101-00-09-10-02-05 probe is built to withstand harsh industrial environments. Its robust stainless steel housing, precision electronics, and stringent quality standards make it a reliable choice for power generation plants, petrochemical facilities, and other heavy industries where uptime is critical.

Product Specifications

Applications

This 3300 XL 8 mm proximity probe is widely used in:

• Rotating equipment monitoring: turbines, compressors, pumps, and motors.

• Vibration and shaft displacement measurement: critical for detecting imbalance, misalignment, bearing faults, and shaft rub.

• Predictive maintenance programs: enables early detection of potential mechanical issues to reduce downtime.

• High-speed rotating machinery: suitable for applications with high RPMs requiring precise monitoring.

• Harsh environments: capable of performing reliably in extreme temperature, moisture, dust, and oil-contaminated areas.

• Power generation: steam, gas, and hydro turbines.

• Oil and gas: monitoring of rotating machinery in onshore and offshore installations.

• Industrial manufacturing: essential for maintaining critical machinery health and minimizing unplanned outages.

Advantages

• Accurate and stable measurements: Provides reliable shaft displacement data with minimal drift over time.

• Durability: Stainless steel construction and IP67 rating offer protection against corrosion, dust, and water ingress.

• Extended operating temperature range: Functions reliably from -40°C to +120°C.

• Compatibility: Designed to seamlessly integrate with the Bently Nevada 3300 XL monitoring system.

• Long cable support: 1 meter cable with shielded construction reduces noise interference.

• Robust vibration tolerance: Can withstand shocks and vibration up to 100 g without performance degradation.

• Ease of installation and maintenance: MIL-C-5015 connectors ensure secure, simple connections.

• Enhanced safety: Early detection capabilities help prevent catastrophic failures and improve plant safety.

• Low noise output: Ensures clear, stable signals for precise diagnostic analysis.

• Global support network: Backed by Bently Nevada’s comprehensive service and technical assistance worldwide.

Frequently Asked Questions (FAQ)

1. What is the sensing tip length for this probe?

   The probe features an 8 mm sensing tip, ideal for close-range shaft monitoring.

2. Is this probe compatible with all Bently Nevada 3300 XL systems?

   Yes, it is fully compatible with all standard 3300 XL monitoring systems.

3. What kind of output does the probe provide?

   It provides an AC voltage output proportional to the gap between the probe tip and the shaft.

4. What are the environmental limits for this sensor?

   The probe operates reliably within -40°C to +120°C and is IP67 rated for dust and water protection.

5. How long is the cable provided?

   1 meter cable comes with the probe; longer cables can be ordered separately.

6. Can this probe be used in hazardous areas?

   When paired with the appropriate intrinsic safety equipment and certified monitors, it can be used in hazardous locations.

7. What maintenance is required for this probe?

   Minimal maintenance is needed; periodic visual inspections and cleaning of the tip area are recommended.

8. How does the probe handle vibration and shock?

   It is built to tolerate high vibration levels up to 100 g without affecting performance.

9. What material is the probe housing made of?

   The housing is constructed of stainless steel, providing durability and corrosion resistance.

10. Does this probe measure axial displacement?

    No, this probe measures radial displacement only; axial displacement requires different sensor configurations.
