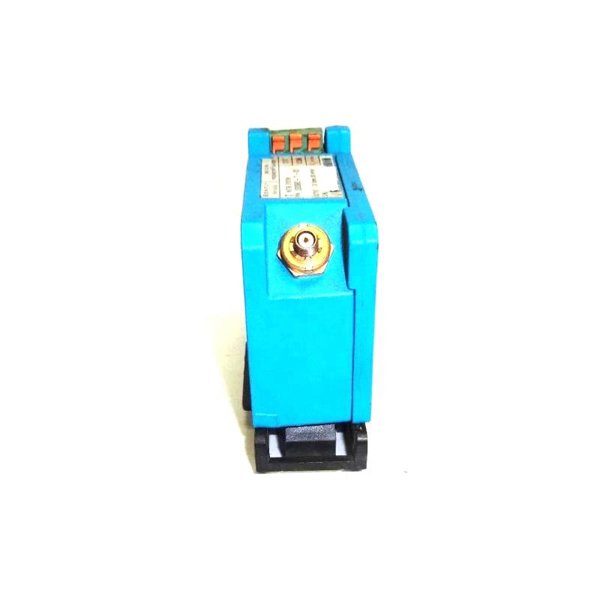

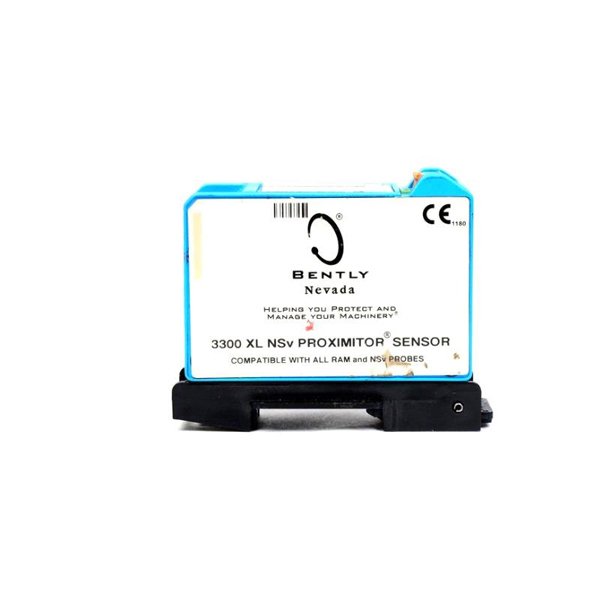

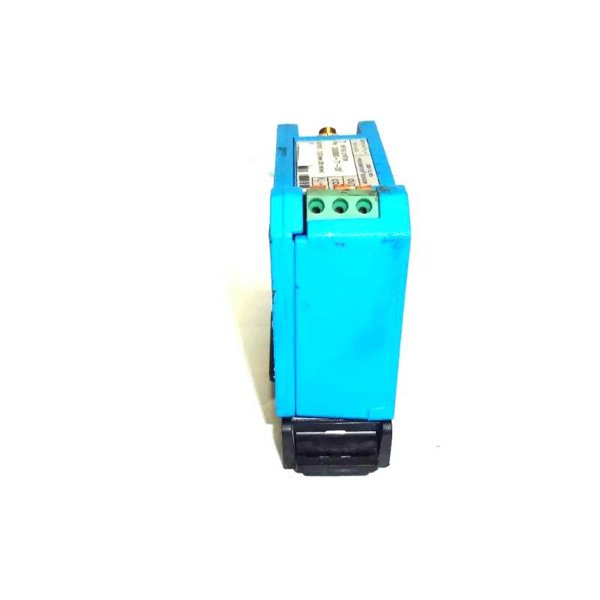

Bently Nevada 330980-71-00 3300 XL NSv Front Sensor

The Bently Nevada 330980-71-00 3300 XL NSv Front Sensor is a specialized component of the Bently Nevada 3300 XL NSv (Narrow Side-view) Series, designed to provide accurate, non-contact vibration and displacement measurement for small, high-speed rotating machinery where space limitations prevent the use of standard proximity probes.

Ideal for compact equipment with limited radial clearance, the 330980-71-00 features a narrow-profile front-mount design, delivering reliable, continuous monitoring of shaft vibration, position, and displacement. It integrates seamlessly with Bently Nevada’s 3300 XL NSv Proximitor® Sensors and is trusted in industries where machinery protection is essential.

Key Features

• Narrow, Front-Mount Design: Optimized for machinery with restricted radial installation space

• High-Precision Non-Contact Measurement: Eddy current technology for shaft vibration, displacement, and position monitoring

• Compatible with 3300 XL NSv System: Integrates with NSv Probes, Cables, and Proximitor® Sensors

• Ideal for Small, High-Speed Shafts: Provides accurate measurements for compact, fast-rotating equipment

• Factory-Calibrated Performance: Ensures consistent, repeatable monitoring results

• Rugged Industrial Construction: Operates reliably in harsh environments including oil, chemicals, dust, and extreme temperatures

• Reliable Signal Stability: Maintains measurement accuracy even in electrically noisy environments

• Designed for Critical Machinery Protection: Early fault detection to prevent unplanned downtime

Technical Specifications

Product Advantages

• Space-Efficient Design: Enables installation in equipment with minimal clearance

• Accurate Vibration and Displacement Monitoring: Supports early fault detection for improved machine reliability

• High-Speed Shaft Capability: Suitable for small, fast-rotating machinery requiring precise monitoring

• Industrial Durability: Withstands exposure to oil, chemicals, dust, and harsh process environments

• Minimal Maintenance Requirement: Non-contact operation reduces sensor wear and prolongs service life

• Seamless System Integration: Fully compatible with the Bently Nevada 3300 XL NSv monitoring system

• Trusted Reliability: Industry-proven technology for condition monitoring and machinery protection

Industry Applications

The Bently Nevada 330980-71-00 3300 XL NSv Front Sensor is ideal for industries requiring compact, reliable proximity measurement on critical, space-constrained equipment:

• Oil & Gas: Compressors, small pumps, and high-speed rotating auxiliary equipment

• Power Generation: Small turbines, pumps, and motors in space-restricted installations

• Petrochemical and Chemical Processing: Compact process machinery in hazardous environments

• Marine and Offshore Platforms: Space-limited equipment on vessels or offshore installations

• Mining and Metals: Conveyor drives, crushers, and small rotating components

• Pulp & Paper: High-speed machinery in limited space applications

• General Industrial OEM Applications: Integrated monitoring for compact rotating machinery

Frequently Asked Questions (FAQ)

Q1: What is the function of the 330980-71-00 sensor?

It provides non-contact measurement of shaft vibration, displacement, and position in small, high-speed machines.

Q2: How is the NSv series different from standard probes?

The NSv series features a narrow design optimized for machinery with minimal radial space.

Q3: Is this sensor suitable for high-speed shaft monitoring?

Yes, with frequency response up to 10 kHz, it is designed for fast-rotating, small-diameter shafts.

Q4: What is the typical measurement range?

It offers a linear range of approximately 0.25 mm to 2.0 mm, depending on shaft material and installation.

Q5: Can this sensor operate in harsh industrial environments?

Yes, it is resistant to oil, chemicals, moisture, dust, and operates in temperatures up to +177°C.

Q6: Does it require a specific Proximitor® Sensor?

Yes, it must be used with the corresponding 3300 XL NSv Proximitor® Sensor for correct system operation.

Q7: Is the sensor compatible with standard 3300 XL systems?

It is part of the NSv subset within the 3300 XL series, specifically for space-restricted, small machinery applications.

Q8: What materials are compatible with this sensor?

It is calibrated for conductive shaft materials such as 4140 Steel.

Q9: Is electrical isolation provided?

Yes, electrical isolation is integrated to ensure signal stability and system integrity.

Q10: What maintenance is required?

Minimal maintenance beyond regular inspections and proper installation is needed for reliable operation.
