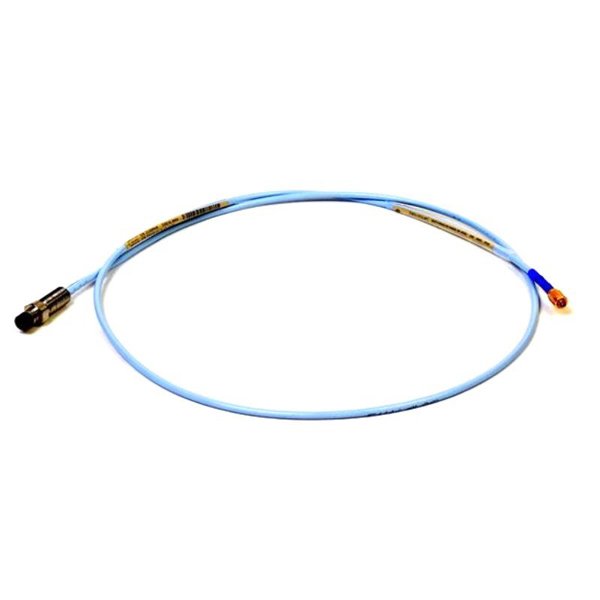

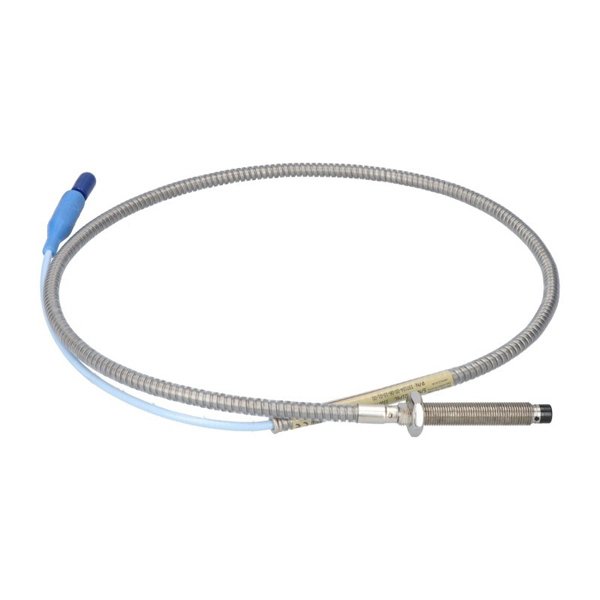

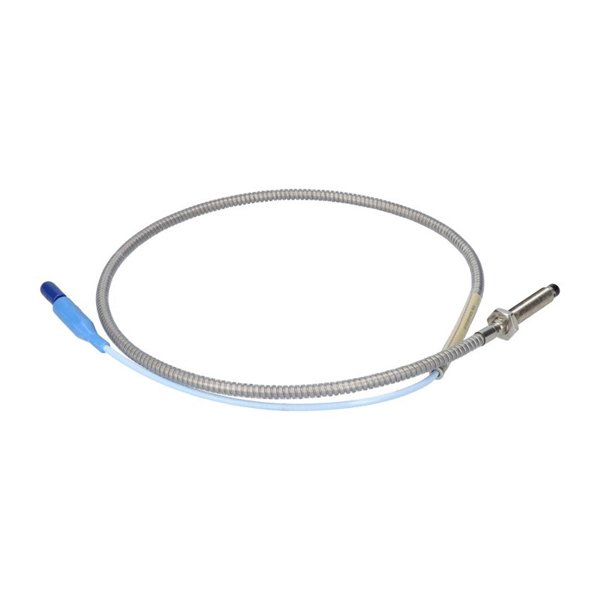

Bently Nevada 330104-00-04-10-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-04-10-01-05 3300 XL 8 mm Proximity Probe is a precision-engineered sensor designed for use in the 3300 XL monitoring system, one of the most widely recognized solutions in machinery protection and condition monitoring. This probe works in conjunction with extension cables and proximity sensor drivers to deliver highly accurate vibration and displacement measurements in critical rotating machinery such as turbines, compressors, pumps, and motors.

Technical Specifications

Product Applications

• Measuring shaft vibration and displacement in rotating equipment.

• Monitoring axial and radial shaft position in turbines and compressors.

• Providing early detection of imbalance, misalignment, and bearing wear.

• Integration into protection systems to trigger alarms and shutdowns when vibration levels exceed thresholds.

• Supporting predictive maintenance strategies in oil & gas, power generation, petrochemical, and heavy industrial sectors.

Product Advantages

• High Accuracy: Delivers consistent and reliable measurements with minimal drift.

• Rugged Design: Built with stainless steel housing to withstand harsh industrial conditions.

• Extended Temperature Range: Performs reliably across extreme temperature variations.

• Moisture and Dust Resistance: IP67 rating ensures long service life in challenging environments.

• System Compatibility: Seamlessly integrates with the Bently Nevada 3300 XL system.

• Reduced Downtime: Enables early detection of machine faults, minimizing unexpected outages.

FAQ

Q1: What is the typical output sensitivity of the 330104-00-04-10-01-05 probe?

A1: The probe provides a sensitivity of approximately 200 mV/mil (7.87 V/mm).

Q2: Can this probe be used in high-temperature machinery environments?

A2: Yes, it supports continuous operation in environments up to +177 °C.

Q3: How does the probe connect to the monitoring system?

A3: It connects via extension cables to a proximity sensor driver, which interfaces with the monitoring system.

Q4: What frequency response range does this probe support?

A4: It provides reliable measurements from DC up to 10 kHz.

Q5: Is the probe immune to electrical interference?

A5: Yes, it features shielding and design improvements to minimize electromagnetic interference.

Q6: Can it detect both vibration and shaft position?

A6: Yes, the probe is capable of measuring both shaft vibration and displacement/position.

Q7: What happens if the probe is exposed to oil or water?

A7: With its IP67-rated housing, the probe remains operational under oil splash or moisture exposure.

Q8: How does the 3300 XL series improve reliability compared to earlier models?

A8: The 3300 XL probes offer enhanced temperature tolerance, improved mechanical durability, and better linearity.

Q9: Can the probe be installed in hazardous areas?

A9: Yes, when used with appropriate certified cables and drivers, it can be deployed in hazardous zones.

Q10: What role does the extension cable length play in measurement accuracy?

A10: The probe is factory-calibrated for specific cable lengths to ensure accuracy, so the designated cable length must be used.
