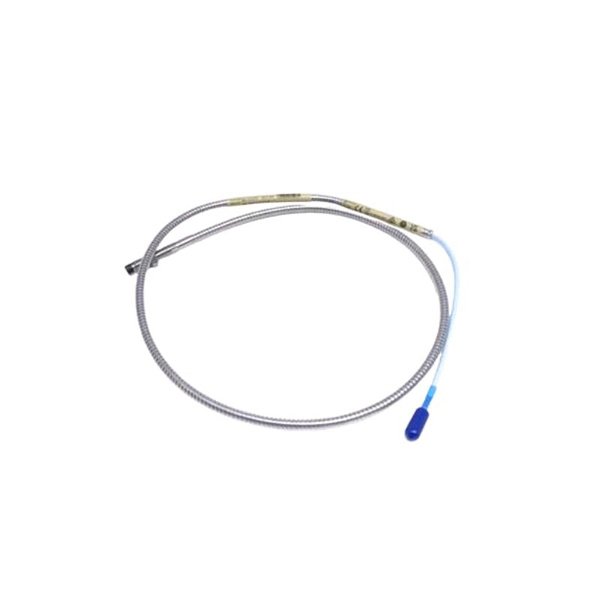

Bently Nevada 330101-00-28-10-02-CN 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-00-28-10-02-CN is a member of the 3300 XL 8mm Proximity Probe system, designed and manufactured by Baker Hughes under the Bently Nevada brand. This proximity probe is engineered for precise non-contact vibration and displacement measurements in critical rotating machinery. The 3300 XL series is widely recognized for its outstanding reliability, durability in extreme environments, and compliance with API 670 standards.

This specific probe model (330101-00-28-10-02-CN) comes with a 28-inch probe length, a 1.0 meter extension cable, and a Proximitor sensor configuration. It is primarily designed for use in conjunction with the 3300 XL Proximitor® sensor and extension cable as part of a complete proximity transducer system.

The system is fully compatible with a wide variety of Bently Nevada monitoring systems, making it an ideal solution for condition monitoring, vibration analysis, and predictive maintenance programs across numerous industrial sectors.

Product Specifications

Product Applications

The Bently Nevada 330101-00-28-10-02-CN proximity probe is widely used in various industrial settings, particularly for rotating machinery monitoring. Key application areas include:

• Steam turbines

• Gas turbines

• Compressors

• Gearboxes

• Pumps

• Motors

• Generators

• Fans and blowers

• Refinery and petrochemical rotating assets

• Paper mill roll monitoring

The primary functions of the probe include measuring shaft vibration, shaft position, axial displacement (thrust), and speed in rotating machinery.

Product Advantages

• Field-Proven Reliability: Designed for harsh industrial environments; supports continuous operation in high-vibration and high-temperature areas.

• API 670 Compliant: Meets industry standards for machinery protection systems.

• Wide Temperature Range: Operates in extreme ambient and process temperatures.

• Interchangeable Components: Probe, cable, and Proximitor sensor are modular and easily replaced.

• High Precision: Offers excellent linearity and high sensitivity, allowing for accurate vibration and position measurement.

• Durable Construction: Stainless steel probe body resists corrosion and mechanical wear.

• Easy Installation: Compact cylindrical body fits tight installation spaces with ease.

• Compatibility: Fully compatible with 3300 XL series extension cables and Proximitor sensors.

• Diagnostic Confidence: Supports predictive maintenance by delivering real-time data on equipment health.

• Global Support: Backed by Bently Nevada’s global service network and decades of expertise.

FAQ

1. Q: What is the sensing range of the 330101-00-28-10-02-CN probe?

   A: It provides a nominal sensing range of 2 mm (80 mils), with a linear range from 0.5 mm to 2.0 mm.

2. Q: Is this proximity probe API 670 compliant?

   A: Yes, it is designed to fully comply with the requirements of API 670.

3. Q: Can the probe operate in high-temperature environments?

   A: Yes, the operating temperature range is from -35°C to +177°C.

4. Q: What material is used for the probe body?

   A: The probe housing is made of AISI 303 stainless steel, offering excellent corrosion resistance.

5. Q: Is the system compatible with other 3300 XL components?

   A: Absolutely. This probe is designed to work with 3300 XL Proximitor sensors and extension cables.

6. Q: Can this probe be used for thrust position measurement?

   A: Yes, it is commonly used for both vibration and axial position (thrust) measurements.

7. Q: How long is the extension cable for this model?

   A: The extension cable length is 1.0 meter.

8. Q: What types of machinery can this be used with?

   A: It is suitable for turbines, compressors, motors, pumps, and other rotating machinery.

9. Q: What is the weight of the probe?

   A: The probe itself weighs 0.323 kg.

10. Q: Can the probe be used in pressurized environments?

    A: Yes, when installed in an appropriate pressure housing, it can withstand pressures up to 10,000 psi.
