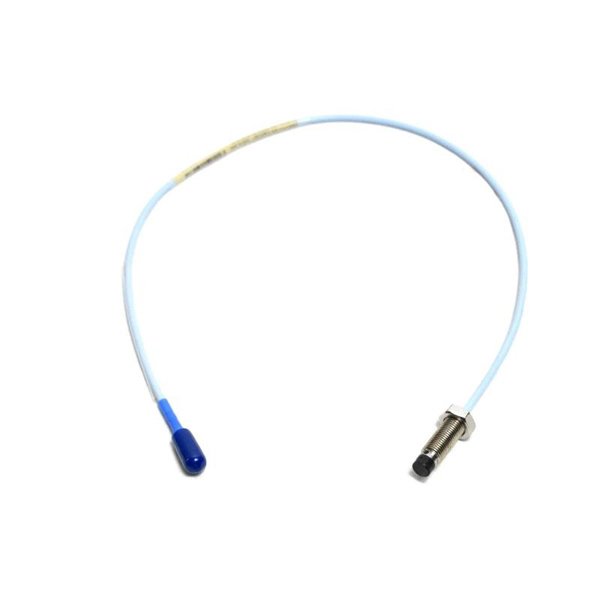

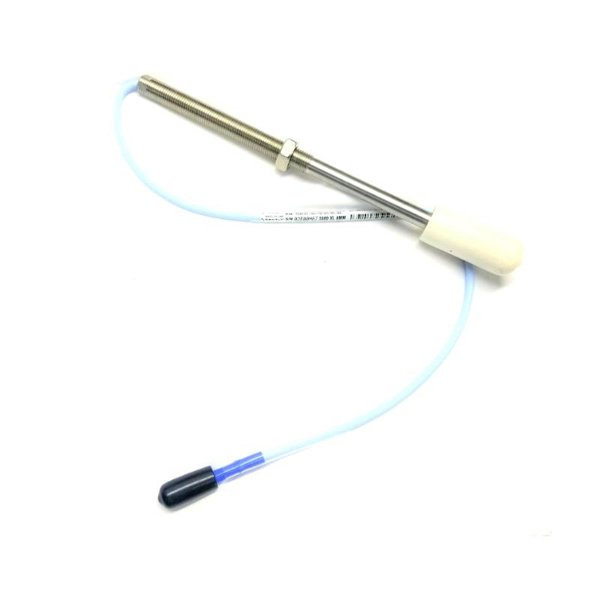

Bently Nevada 330101-00-96-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-96-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:52
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The 3300 XL 8 mm Proximity Probe is part of Bently Nevada’s advanced eddy current transducer system. It is used with an extension cable and a Proximitor Sensor to deliver highly accurate measurements of static (position) and dynamic (vibration) displacement. This specific model supports a total system length of 1 meter and includes a robust, gold-plated ClickLoc connector for reliable connections in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| System Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm |
| Probe Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Type | 75 Ω Triaxial, FEP Insulated |
| Operating Temp (Standard Probe) | -52°C to +177°C |
| Operating Temp (ETR Probe) | -52°C to +218°C (tip), +260°C (cable) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Voltage | 200 mV/mil (7.87 V/mm) |
| Minimum Shaft Diameter | 50.8 mm (2 in), Recommended: ≥76.2 mm |
| Pressure Sealing | Viton O-ring |
| Environmental Protection | IP54+ (with connector protectors) |
| Connector Type | Miniature coaxial ClickLoc |
Applications
-
Turbomachinery: Accurate shaft vibration and position monitoring.
-
Electric Motors & Generators: Bearing and axial position tracking.
-
Compressors & Pumps: Ensures operational stability through vibration feedback.
-
Keyphasor Systems: Used as reference signal for phase and speed.
-
Overspeed Protection: Part of rotor dynamic protection systems.
Advantages
-
API 670 Compliant: Meets industry standards for vibration monitoring systems.
-
Interchangeable Components: No need for field matching or calibration.
-
High Temperature Capable: Optional ETR versions operate up to 260°C.
-
Durable Construction: PPS probe tip and armored options improve longevity.
-
Fast Installation: SpringLoc terminal blocks eliminate special tools.
-
Enhanced EMI/RFI Immunity: Reliable in electrically noisy environments.
FAQ
Q1: What is the total system length of this probe?
A1: The 330101-00-96-10-02-05 is a 1-meter system with no extension cable.
Q2: Is this probe compatible with older 3300 series components?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q3: What shaft size is recommended for radial vibration measurements?
A3: A shaft diameter of at least 76.2 mm (3 in) is recommended for optimal accuracy.
Q4: Can the probe withstand high temperatures?
A4: The standard version supports up to 177°C; the ETR version up to 218°C (probe tip).
Q5: Does this system require recalibration if components are changed?
A5: No. All parts are fully interchangeable without needing recalibration.
Q6: What material is used for the probe’s outer case?
A6: The outer case is made of stainless steel (AISI 303 or 304).
Q7: How is electrical interference managed in this system?
A7: It features enhanced RFI/EMI immunity and CE compliance, no shielded conduit required.
Q8: Can this probe be used in hazardous areas?
A8: Yes. It holds CSA, ATEX, and IECEx certifications for hazardous environments.
Q9: What is the recommended gap voltage setting for radial vibration?
A9: -9 VDC, which corresponds to approximately 1.27 mm (50 mils) gap.
Q10: What is the minimum bend radius for the cable?
A10: The cable requires a minimum bend radius of 25.4 mm (1 inch).
