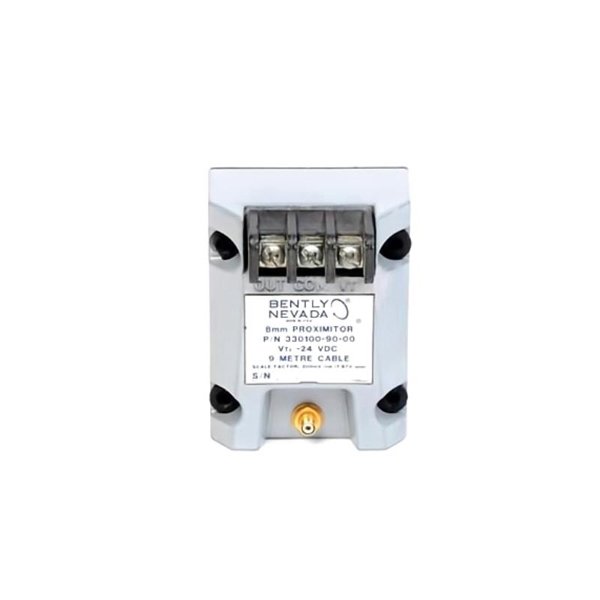

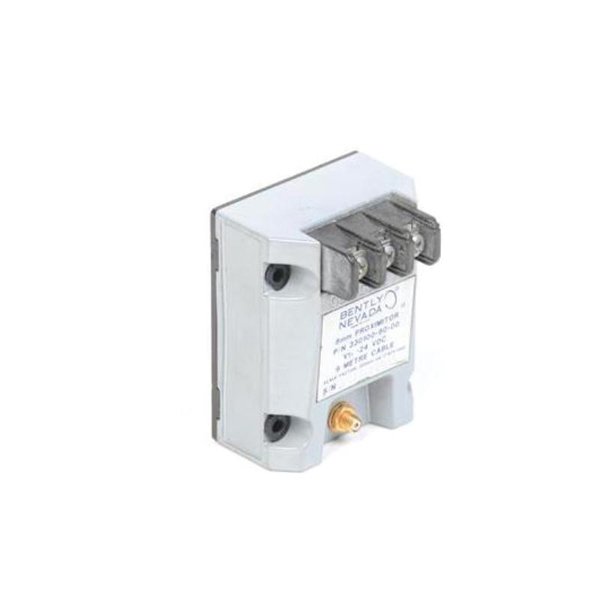

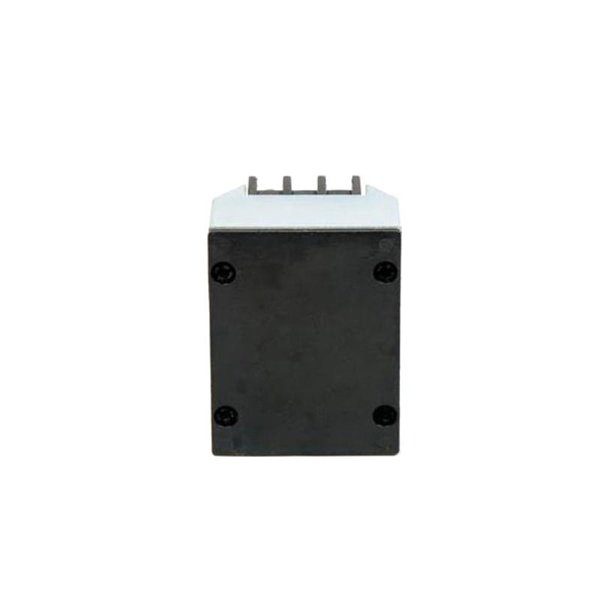

Bently Nevada 330100-90-02 3300 Proximitor Sensor

The Bently Nevada 330100-90-02 3300 Proximitor Sensor is a precision industrial sensor, engineered for critical rotating machinery monitoring. As a vital part of the Bently Nevada 3300 system family, this Proximitor sensor is specifically designed to convert the signal from a proximity probe into a usable output for monitoring systems, ensuring accurate and real-time vibration and shaft position data.

This model, the 330100-90-02, delivers highly stable and reliable performance even in harsh industrial environments where high vibration, temperature fluctuations, and electrical noise are present. It ensures early detection of mechanical faults like misalignment, imbalance, shaft rubs, and bearing wear, thereby protecting vital assets and reducing unplanned downtime.

Product Specifications

Applications

The 330100-90-02 Proximitor Sensor finds application across a wide range of industries, especially where precision and reliability are non-negotiable:

• Gas and Steam Turbines – for vibration and shaft position monitoring.

• Compressors – for early detection of imbalance, misalignment, and mechanical looseness.

• Large Industrial Motors and Generators – to monitor shaft runout and centerline shifts.

• Pumps – detecting cavitation, impeller damage, and bearing failures.

• Gearboxes – for gear mesh monitoring and shaft vibration detection.

• Fans and Blowers – used to detect imbalance and critical speed operation.

The sensor’s robust design and proven stability make it essential in sectors like oil and gas, power generation, chemical processing, and heavy manufacturing.

Product Advantages

• Superior Measurement Stability: Outstanding accuracy across varying environmental conditions, ensuring consistent monitoring data.

• Wide Dynamic Range: Capable of handling minor shaft displacements as well as major excursions, covering a broad spectrum of machinery conditions.

• Industrial-Grade Ruggedness: Designed to resist contamination, vibration, and temperature extremes.

• Ease of Integration: Fully compatible with Bently Nevada 3300 series systems and components, ensuring a plug-and-play experience.

• Low Signal Drift: Ensures data reliability over long-term operations without frequent recalibration.

• Reduced Downtime Risk: Early detection of critical faults allows for proactive maintenance, avoiding catastrophic failures.

• Flexible Mounting: Compact footprint fits into tight machinery enclosures without sacrificing measurement accuracy.

Frequently Asked Questions (FAQs)

1. What is the difference between 330100-90-02 and other 3300 Proximitor models?

   The “-90-02” suffix usually specifies cable length compatibility and certain factory-configured options tailored to installation needs.

2. Is the 330100-90-02 sensor backward compatible with older Bently Nevada monitoring systems?

   Yes, it is compatible with legacy 3300, 3500, and selected customized systems.

3. What type of proximity probes does it work with?

   It is typically used with Bently Nevada 3300 XL 5mm and 8mm probes and associated extension cables.

4. Does it require field calibration during installation?

   Only a basic verification of sensitivity and gap voltage is recommended; full recalibration is usually not necessary unless specified.

5. How is the sensor powered?

   It draws -24 Vdc power supplied directly by the associated monitoring or rack system.

6. Can it operate in explosive or hazardous environments?

   It can, provided it is installed with appropriate hazardous area-rated enclosures and certifications in place.

7. What is the main output signal format?

   The sensor outputs an analog voltage proportional to the measured distance.

8. How often should the system be checked for accuracy?

   An annual inspection is recommended for critical machines; otherwise, condition-based verification is sufficient.

9. Can the sensor survive exposure to oil mist or light contaminants?

   Yes, its epoxy-coated enclosure protects it against common industrial contaminants.

10. Does it offer diagnostics if the probe connection fails?

    The 3300 monitoring system can detect open or shorted probes based on the signal from the Proximitor Sensor.
