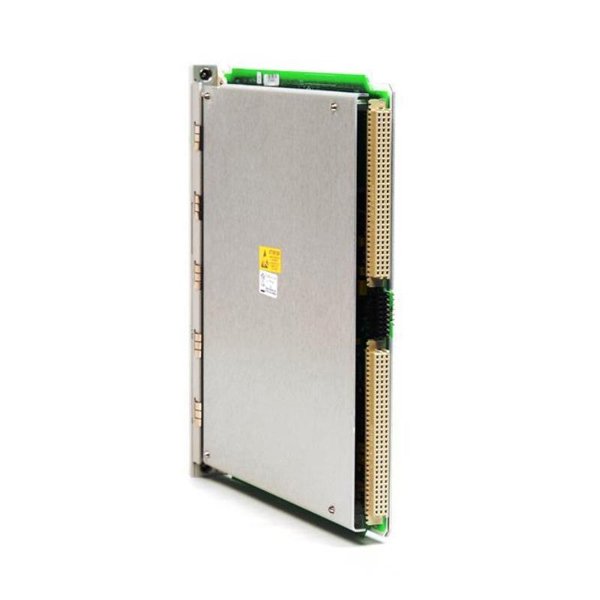

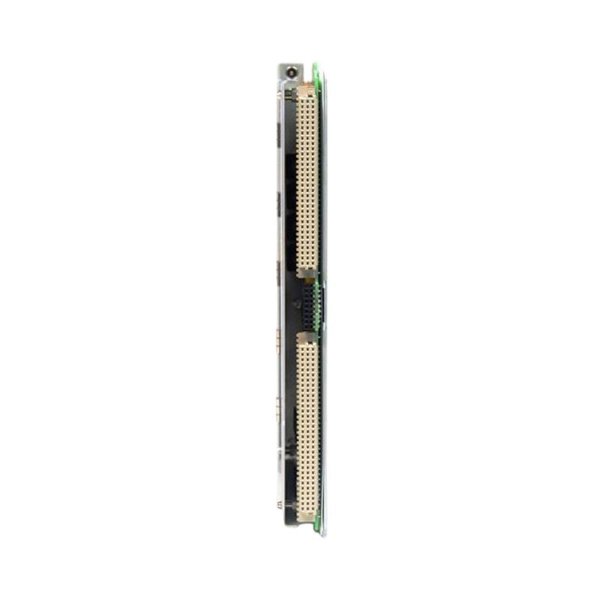

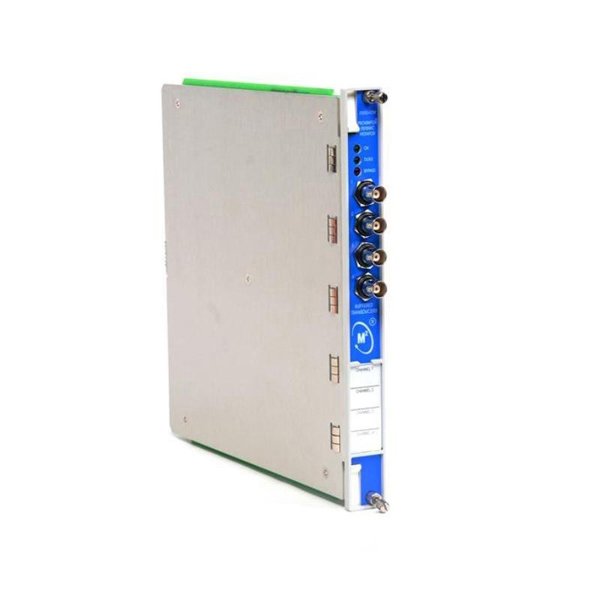

Bently Nevada 3500/42M-01-00 Proximitor Seismic Monitor

The Bently Nevada 3500/42M-01-00 Proximitor/Seismic Monitor is a high-performance module used in the 3500 Series Machinery Protection System. Designed to monitor both proximity and seismic signals, this four-channel monitor allows flexible configuration of each channel for measuring radial vibration, thrust position, differential expansion, or casing vibration.

Engineered for critical rotating equipment such as turbines, compressors, and large motors, the 3500/42M-01-00 provides accurate and continuous monitoring that helps ensure operational reliability and plant safety. It is fully compatible with Bently Nevada proximity transducers (e.g., 3300 XL) and seismic sensors (e.g., velocity and acceleration transducers), making it one of the most versatile monitoring modules in the 3500 platform.

Its ability to detect developing mechanical issues—such as shaft misalignment, rotor instability, and bearing wear—makes it essential in predictive maintenance strategies across industries like oil & gas, power generation, petrochemical, and more.

Product Specifications

Product Applications

The 3500/42M-01-00 is widely used in high-value rotating equipment protection and process-critical machinery. Typical application areas include:

• Steam and Gas Turbines

  Monitoring radial shaft vibration and thrust position to protect against overspeed, misalignment, or bearing failure.

• Centrifugal and Reciprocating Compressors

  Detecting rod drop, frame vibration, and mechanical instability in compressor trains.

• Industrial Pumps

  Tracking shaft movement, casing vibration, and cavitation-induced anomalies.

• Electric Motors and Generators

  Monitoring bearing wear and rotor dynamic behavior to prevent unplanned shutdowns.

• Gearboxes

  Identifying excessive vibration and dynamic imbalance in speed-reduction gear trains.

• Petrochemical & Oil Refineries

  Used in SIL-level safety logic and machine trip systems for compressors and pumps.

Product Advantages

• Dual Signal Support

  Each of the four channels supports either proximity or seismic signal types—ideal for mixed-machine layouts.

• Flexible Measurement Configuration

  Channels can be individually assigned to radial, axial, or casing vibration tasks.

• Integrated Sensor Health Monitoring

  Automatically detects sensor faults or connection failures, improving system diagnostics.

• Buffered Dynamic Output

  Front-panel BNC connectors enable direct access to dynamic waveform data for analyzers.

• Software-Based Setup

  Configuration through the 3500 Configuration Software allows quick and intuitive setup or adjustments.

• Fast Response and Real-Time Alarming

  Provides near-instant reaction to measured conditions with dual alarm setpoints per channel.

• Rugged Industrial Build

  Designed to operate reliably in harsh environments with full compliance to global certifications.

• Hot Swappable for Uptime

  The module can be removed and replaced without shutting down the system, minimizing operational impact.

Frequently Asked Questions (FAQ)

1. What types of measurements does the 3500/42M-01-00 support?

It supports radial vibration, axial position, differential expansion, and casing vibration using proximity and seismic sensors.

2. How many channels are provided on the module?

There are 4 independent channels, each configurable for different input types.

3. Can I use proximity and seismic sensors on the same module?

Yes, each channel can be configured for either proximity or seismic sensors.

4. What is the frequency response of the module?

The typical range is 0.5 Hz to 20 kHz, depending on sensor selection and configuration.

5. Is the module compatible with older Bently Nevada probes?

Yes, it is compatible with the 3300 XL and 7200 series probes, among others.

6. How are alarms configured?

Each channel has Alert and Danger setpoints, configurable via the 3500 Configuration Software.

7. Does the module offer dynamic output?

Yes, each channel provides a buffered dynamic output signal via a BNC connector.

8. Is it possible to replace the module without powering down the rack?

Yes, the module is hot-swappable.

9. What happens if a sensor fails or is disconnected?

The system triggers a “Not OK” condition and can be configured to initiate alarms or trips.

10. Does the module work with TDI for data export?

Yes, it communicates with the 3500/22M TDI for data collection and system communication.
