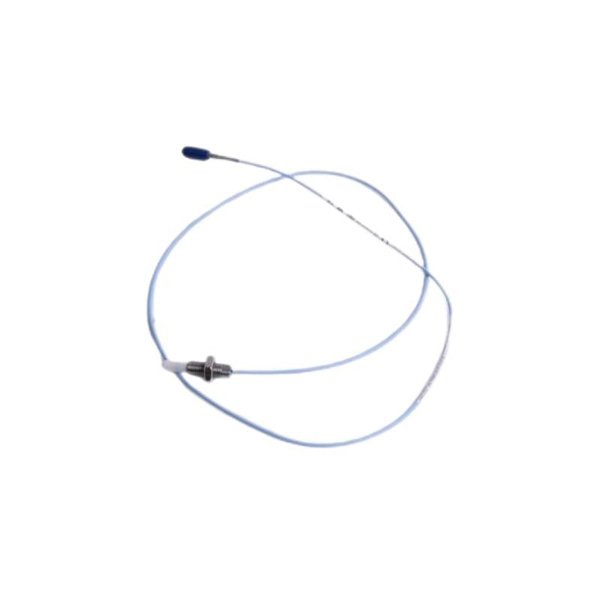

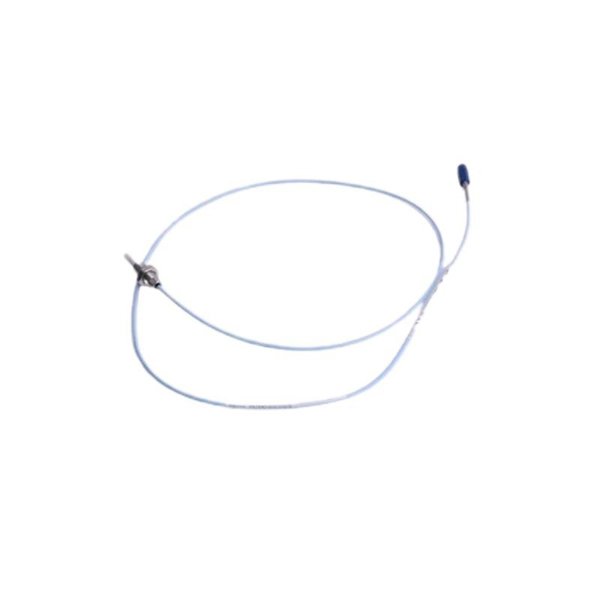

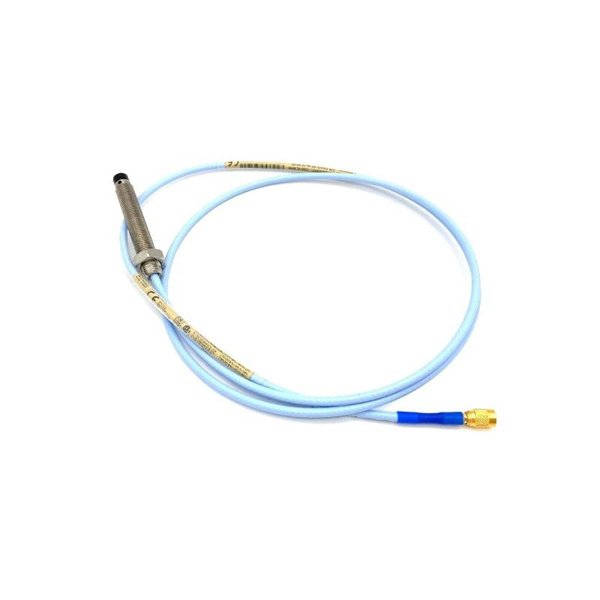

Bently Nevada 330908-00-55-05-02-00 3300 NSv Proximity Probe

The Bently Nevada 330908-00-55-05-02-00 is a precision-engineered 3300 NSv (Narrow Side View) proximity probe designed to deliver accurate, real-time monitoring of shaft vibration and displacement in rotating machinery. This probe belongs to the trusted 3300 NSv series, known for its durability and performance in demanding industrial applications.

With a total length of 0.5 meters and a shipping weight of 2 kg, the probe is built for robustness while maintaining the flexibility needed for installation in restricted spaces. The NSv design is tailored to fit into compact environments where standard probes cannot be used, allowing the sensor tip to sense the shaft’s movement from a narrow side orientation.

The probe uses eddy current technology for non-contact sensing, providing reliable data critical to machine health monitoring and early fault detection. Its rugged stainless steel housing and hermetically sealed construction ensure dependable operation under harsh conditions such as extreme temperatures, vibration, and exposure to contaminants.

Product Parameters

Product Applications

The 330908 NSv probe is well-suited for precise vibration and displacement monitoring in various rotating equipment where installation space is limited or the sensor must be mounted in a narrow side orientation. Typical applications include:

• Turbines: Steam, gas, and hydro turbines requiring tight radial clearance monitoring.

• Compressors: Centrifugal and axial compressors with constrained probe installation areas.

• Gearboxes: Small and compact gearbox shafts where traditional probes cannot fit.

• Turboexpanders: Monitoring high-speed machinery with limited sensor access.

• Pumps and Motors: Condition monitoring of pumps and motors in tight or complex configurations.

• OEM Equipment: Integrated into custom machinery designs needing specialized probe configurations.

Product Advantages

• Compact NSv Design: Facilitates installation in narrow or restricted spaces without sacrificing measurement accuracy.

• High Sensitivity: Delivers precise shaft displacement measurement within a ±0.127 mm linear range.

• Non-Contact Measurement: Reduces wear and maintenance by avoiding physical contact with the shaft.

• Durable Construction: Stainless steel housing and hermetic sealing offer protection against contaminants and harsh environments.

• Broad Temperature Range: Operates reliably from –35°C to +175°C.

• Standard Compliance: Meets API 670 and IEC standards for machinery protection systems.

• Flexible Installation: Multiple cable and connector options allow for customized setups.

• Robust Build: Designed to withstand industrial vibration and shock for long service life.

• Seamless Integration: Fully compatible with Bently Nevada 3300 NSv monitoring systems.

• Trusted Quality: Bently Nevada’s proven reputation ensures reliable machine protection.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 330908-00-55-05-02-00 probe?

A1: It monitors shaft vibration and displacement in machinery with limited installation space.

Q2: What are the total length and shipping weight of the probe?

A2: The total length is 0.5 meters and the shipping weight is 2.0 kg.

Q3: What size is the probe tip and what thread does it use?

A3: The tip diameter is 5 mm and it uses an M8 x 1.0 thread.

Q4: What temperature range can the probe operate in?

A4: It operates between –35°C and +175°C.

Q5: Is this probe compatible with standard Bently Nevada systems?

A5: Yes, it works with 3300 NSv drivers and extension cables.

Q6: What is the linear measurement range?

A6: The linear range is ±0.127 mm.

Q7: How does the NSv design differ from standard probes?

A7: The NSv design allows sensing from the narrow side, suitable for tight spaces.

Q8: Does the probe require contact with the shaft?

A8: No, it uses non-contact eddy current sensing technology.

Q9: Can it be used in hazardous environments?

A9: With appropriate certification and installation, yes.

Q10: What standards does this probe meet?

A10: It complies with API 670 and IEC standards for machinery protection.
