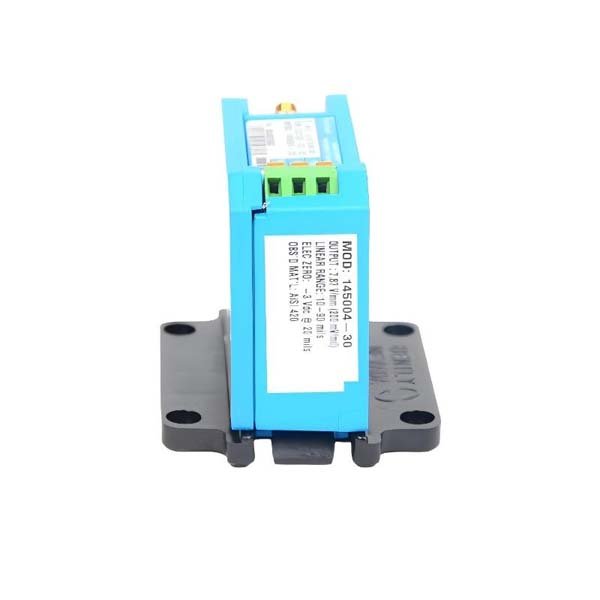

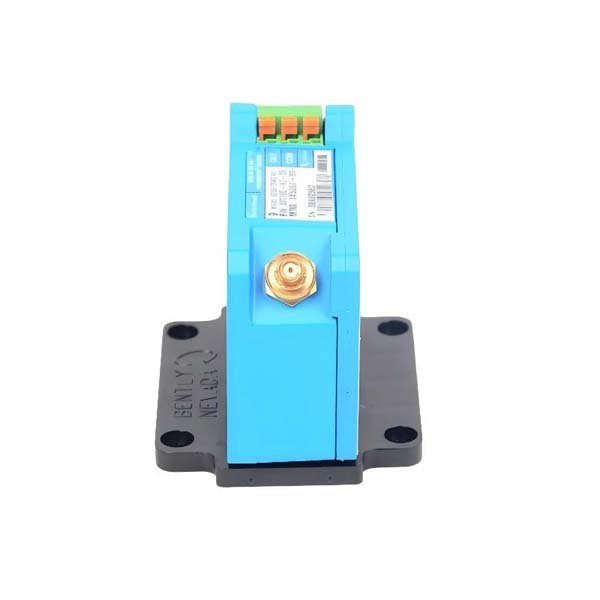

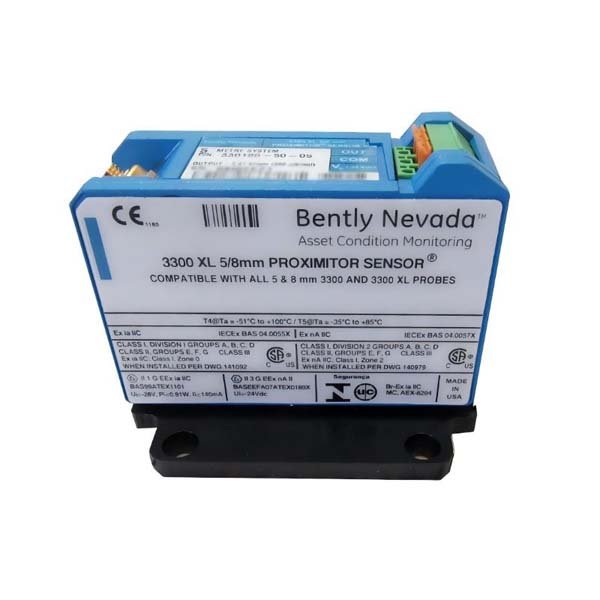

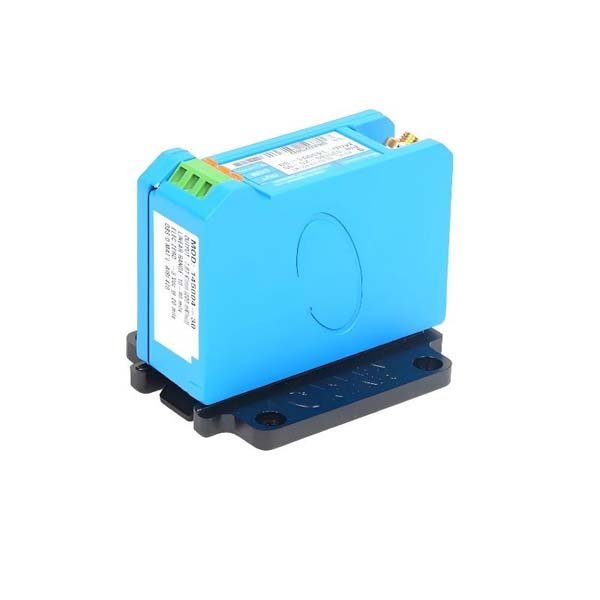

Bently Nevada 330180-X0-05 Proximity Probe & 145004-04 Proximitor Module

The Bently Nevada 330180-X0-05 Proximity Probe and 145004-04 Proximitor Module form a complementary pair for precise radial shaft displacement and vibration monitoring. The probe senses the gap between the rotating shaft and the bearing housing, while the proximitor converts this signal into a conditioned voltage compatible with Bently Nevada monitoring racks.

Together, these modules provide a reliable, industrial-grade solution for machinery protection, orbit analysis, and predictive maintenance in turbines, compressors, pumps, and generators. Their design emphasizes robust field performance, ease of integration, and stable, repeatable measurement under harsh operating conditions.

Technical Specifications

Applications / Use Scenarios

• Installed in turbines, compressors, and pumps for radial shaft displacement monitoring.

• Used in X-Y probe configurations for orbit analysis.

• Integrated into machinery protection systems using 3300 or 3500 series racks.

• Suitable for OEM machine builds or retrofit projects.

• Enables condition-based monitoring and predictive maintenance for critical rotating machinery.

Advantages / Key Features

• Integrated Measurement System: Probe and proximitor pair provides complete displacement monitoring.

• Reliable Field Performance: Designed for harsh industrial environments with minimal drift.

• Ease of Integration: Compatible with Bently Nevada 3300/3500 series racks and existing monitoring architectures.

• Flexible Options: Multiple cable lengths and connector types allow adaptation to complex installations.

• Support for Diagnostics: Accurate displacement signals feed trend analysis, alarm logic, and fault detection.

• Simplified Maintenance: Modular design allows easy replacement of individual components without affecting system integrity.

FAQs

1. Can the probe and proximitor be replaced independently?

   – Yes, the probe and proximitor module can be serviced separately.

2. Which systems are compatible?

   – Bently Nevada 3300 and 3500 series monitoring racks.

3. What is the recommended mounting for the probe?

   – Rigid mounting in the bearing housing with consistent probe gap.

4. Is field calibration required?

   – Periodic verification is recommended; the proximitor supports field calibration.

5. What is the typical lifespan of the probe?

   – Designed for long-term industrial deployment; calibration drift is minimal.

6. Can high-temperature variants be used?

   – Yes, specialized probes are available for elevated ambient temperatures.

7. What is the typical cable length?

   – Standard 0.5 m to 1.5 m; extension cables are available.

8. Are the modules suitable for retrofits?

   – Yes, they are commonly used in retrofits to replace older probe-proximitor combinations.

9. How is signal integrity ensured?

   – Through proper grounding, shielded cabling, and robust connector interfaces.

10. Do the modules support orbit analysis?

    – Yes, when used in X-Y pairs with synchronized channels in monitoring racks.
